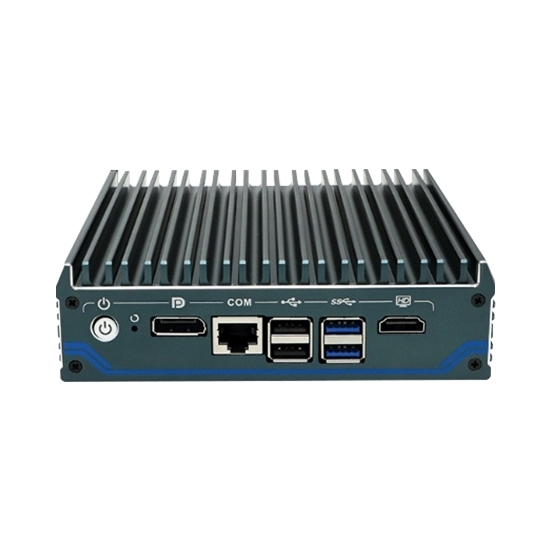

Fanless Industrial PC, Quad Core, 4*2.5G LAN, DDR4 16GB, HDMI DP

4.5 out of 5 based on 2 reviews | Write a review

$652.45

Low cost mini industrial PC powered by a 12th Gen Intel Alder Lake-N N100 quad core with up to 3.4 GHz turbo frequency, supporting up to 16GB SODIMM DDR4 RAM and 12V DC power supply. It features 4*Intel i226-V 2.5G LAN ports, and is compatible with Windows 10/Windows 11/Linux systems. The fanless design ensures silent operation while maintaining strong performance. Display outputs include 1*HDMI and 1*DisplayPort (DP).

RAM/ Hard Disk Capacity *
Usable System *
Usable System *
Usable System *
Additional Options *

SKU: ATO-IPC-N1241

Availability: In stock

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Powered by the Intel Alder Lake-N N100 quad core processor, this fanless mini industrial PC features 4 × 2.5GbE LAN ports, up to 16GB DDR4 memory, and HDMI + DP display outputs. Its compact design, low power consumption, and reliable performance make it ideal for industrial and networking applications.

Specification

Model	ATO-Nano-N1241
Color	Metal gray (color can be customized)
Material	High quality all aluminum alloy
Processor	Intel Processor N100 (4 core 4 threads, Turbo 3.4 GHz)
CPU Architecture	Alder Lake-N
Memory	1*DDR4 3200MHz SODIMM memory slot, Max.16GB
BIOS	AMI UEFI BIOS
Display Chip	Intel(R) UHD Graphics
Display Port	1HDMI,1DP(Resolution Max.4096x2160 @ 60Hz)
Front I/O	1Power switch,1DP,1*RJ45 COM(support Console)
Front I/O	3USB2.0,1USB3.1,1HDMI, 1reset button
Rear I/O	4RJ45 LAN, 1DC IN,1*SIM card slot
Expansion Slot	1*M.2 2280 M-key slot (support SATA )
Expansion Slot	1*M.2 2230 E-key slot (support WiFi, Bluetooth)
Network	4*Intel i226-V 2.5G LAN
Storage	1M.2 2280 slot,12.5 inch HDD/SSD
Input Voltage	DC 12V
Other Function	Auto Power-on, timed power-on, network wake-up, PXE boot, watchdog(level 0-255),TPM2.0 security encryption
Work Temp	0°C~ +40°C, surface air flow (HDD),-20°C~+50°C, surface air flow(SSD), surface air flow
Work Humidity	0%-95% Non-condensing
Dimension	144* 136.7*42 mm
Weight	0.79 kg

Feature

High Performance CPU: Fanless industrial PC with built-in Intel Alder Lake-N N100 quad-core processor delivers stable performance, faster processing speed, and lower power consumption.
Industrial Storage: Equipped with industrial-grade SSD, significantly improves system response speed and stability, supports wide temperature operation, and ensures low power consumption, high reliability, and data security.
Efficient Fanless Cooling: Fanless cooling design with die-cast aluminum alloy housing and 360° heat dissipation fins ensures efficient thermal management, enabling compact size and high performance without compromise.
Rich I/O Interfaces: 1*USB 3.1, 3*USB 2.0, 1*COM port (supports Console function), 4*Intel i226-V 2.5G LAN ports, 1*HDMI and 1*DisplayPort (DP).
Dual 4K Display Output: Industrial PC supports 1*HDMI + 1*DP high-definition display outputs, enabling synchronous or asynchronous dual-screen operation for enhanced productivity.

Detail

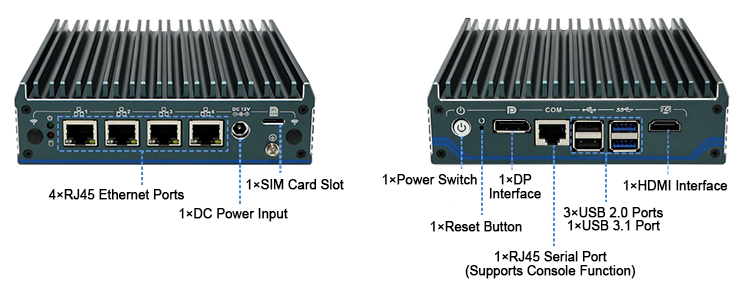

Fanless industrial PC quad core interface

Size (unit: mm)

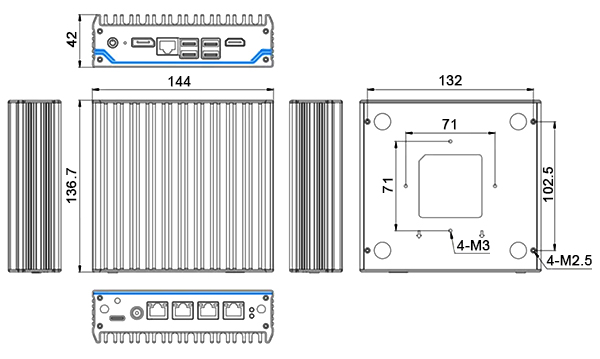

Fanless industrial PC quad core size

Package Includes

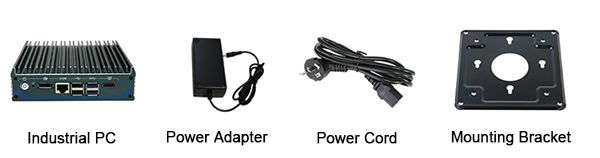

Fanless industrial PC quad core package

Note: AU plug included by default. For other plug standards, please contact us.

Application

Fanless industrial PC quad core application

Tips: Turn on the power and industrial PC does not respond, how to do?

Check whether the power socket has electricity and connect it with the IPC normally.
Check whether the IPC power supply can work normally (whether the power fan rotates after power on) and whether the monitor is connected to the host properly.
Open the cover of the chassis to check whether the power supply is properly connected with the IPC baseboard or the motherboard; whether the connection between the bottom board and the mainboard is loose; whether the ATX power supply is connected incorrectly.
Replace the CPU or motherboard.
