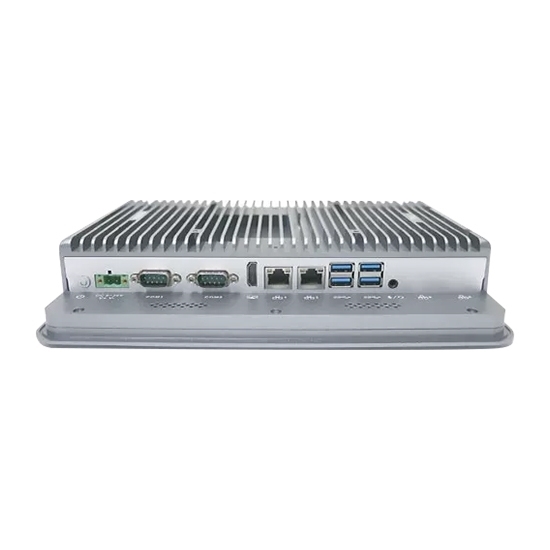

    Fanless Industrial Touch All in one PC

    5 out of 5 based on 2 reviews | Write a review
    Embedded system 10.4 inch fanless industrial best all in one PC adopts Intel Celeron J1900 quad core 2.0GHz CPU and Intel integrated chipeset, support VGA, HDMI and LVDS display input. Its high performance touch screen and multi-interfaces, provide satisfactory solution for you.
    SKU: ATO-IPC-A104
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Industrial PC Features

    • Intel Celeron J1900 quad core 2.0GHz CPU and Intel chipeset
    • High quality pure aluminum with fanless and embedded design
    • 64MB SMT Flash ROM, support wake on lan
    • DC-IN 12V/12.5A power adapter
    • Support Win7/ win10/ Linux (Centos or Ubuntu) system
    • 1*USB3.0+3*USB2.0+1*VGA+1*HD+1*RTL8111E 1000 Lan+1*3Pin Phoenix terminal


    Model           ATO-ITPCA104
    Material of Case High-quality pure aluminum
    CPU Adopt Intel Celeron J1900 quad core 2.0 GHz
    Chipeset Intel CPU integrated chipeset
    RAM Support 1*DDR3L 1333/1600 MHz, Max 8GB
    Display 1*VGA, 1*HD, 1*LVDS (support synchronous and asynchronous dual display)
    Storage 1*MSATA
    Speaker 2*8Ω 2W speaker
    Network 1*RTL8111E 1000 Lan
    Usable system Win7/ win10/ Linux (Centos or Ubuntu) system
    LCD Screen Screen Size: 10.4 inch TFT-LDD
    Sreen Ratio: 4:3
    Resolution: 1024*768
    Brightness: 350 cm/m2
    Viewing angle: Full view
    I/O 1*USB3.0
    1*DC-IN 12V
    1*RTL8111E 1000 Lan
    2*RS232 COM
    1*Line Out
    1*3Pin Phoenix terminal
    Touch Screen High sensitive resistive touch screen (single touch), Lifespan up to 50 million times
    BIOS 64Mb Flash ROM
    Power Supply DC 12V (DC 9~36V input is optional)
    Operation Temp -10°C ~ 50°C
    Humidity 0% - 95% relative humidity, non-condensing
    Dimension 271*212*52 mm
    Weight 2.3 Kg

    *Packing list included PC + Power Adapter + Power Cord + CD Driver.
    *RAM, SSD, HDD, WiFi, Bluetooth are optional, if necessary, please contact customer service for your configuration.
    *Need more fanless industrial PCs models information, please check the Model Brochure.

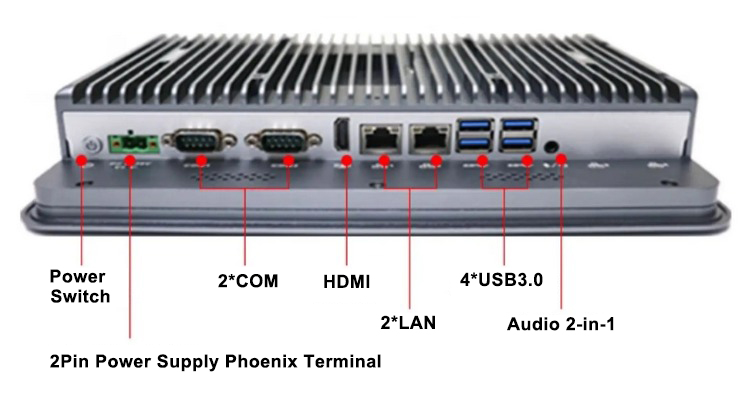

    Industrial PC Rich Interfaces
    all in one industrial pc interfaces

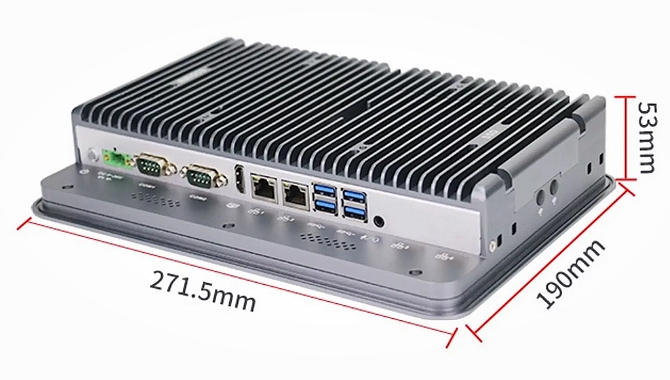

    all in one industrial pc dimensionTips: Electromagnetic shielding of small industrial PC chassis
    When the host computer is working, the motherboard, CPU, memory and various board cards all generate a large amount of electromagnetic radiation. If they are not protected, they will cause some damage to the human body. At this time, the chassis becomes an important part of shielding electromagnetic radiation and protecting health. Defenders and well-shielded chassis can also effectively block external radiated interference and ensure that internal computer components are not affected by external radiation. In order to increase the cooling effect of small industrial PC chassis, the necessary parts of the chassis will be perforated, including the side holes of the chassis, pumping air fan inlet holes, exhaust fan outlet holes, etc., so the hole shape must meet the technical requirements that can block radiation. The openings in the chassis should be as small as possible, and as far as possible, round holes with strong radiation blocking ability must be used.
