    Fanless Embedded Industrial PC, core i3 i5 i7, 6 COM, 2 LAN

    5 out of 5 based on 2 reviews | Write a review
    High performance fanless embedded industrial PC with 6 COM and 2 Intel Lan, adopts Intel Core 4th Haswell, QM87 chipset, core i3-4000M, core i5-4200M or i7 4702MQ for your selection. Because of its multi-interface and simple operation, it could be used for many industrial areas.
    Availability: In stock
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    NOT AVAILABLE! For the Updated version, Please go to the page: Mini Embedded Fanless Industrial PC, Core i3 i5 i7, Linux.

    Industrial PC Features

    • Haswell Dual-core i5 4200M 2.5G, QM87 chipset, support core i3 4000M and core i7 4702MQ
    • 1*VGA+1*HD+2*DP+4*USB2.0+4*USB3.0+2*intel LAN+6*COM (2*COM can support RS422/485)
    • High quality fanless pure aluminum mini itx case
    • 2*SATA, 1*Mini-PCIE, support wifi/3G, 1*Mini-SATA
    • 1*intel L210, 1*intel L217 Lan (with V-Pro support)
    • Support DC 12-19V wide voltage power supply
    • Support windows 7/8/10, Linux


    Model ATO-IBOXQM87
    Case    High quality fanless pure aluminum
    CPU Adopt core i5 4200M, can support core i3 4000M and i7 4702MQ
    Chipeset Adopt Intel QM87 express chipset
    RAM 2*SODIMM DDR3, support Max 16G
    Storage 1* MINISATA, 4*SATA
    Usable System Win7/ win10/ Linux (Centos or Ubuntu) system
    Lan 1*intel L210, 1*intel L217 Lan
    Graphic Card Integrated HD graphic card 4600/4400, support 1*VGA, 1*HD, 2*DP, 1*LVDS display input
    BIOS AMI 32Mbit SMT Flash ROM
    I/O 4*USB2.0
    1*DC-IN 12V-19V
    2*RJ-45 lan
    1*GPIO pin header
    6*COM (2*COM support RS422/485)
    Buit-in I/O 1*PWROUT
    1*24 bit dual channel LVDS
    4*group USB pin heade
    1*TPM pin header
    1*PCIE 16 X
    WDT Support hardware reset (256 level, 0~255 sec)
    Expansion Slot 1*Mini-PCIE (support wifi/3G), 1*Mini-SATA
    Power Supply DC 12~19V
    Temp 0°C~ 60°C
    Humidity 10% - 90% relative humidity, non-condensing
    Dimension 237*204*68mm (L*W*H)
    Weight 6 Kg

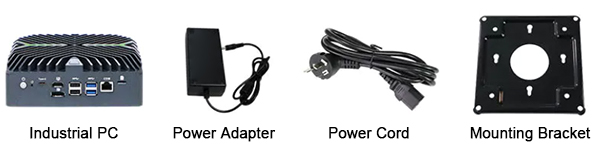

    *Packing list included PC + Power Adapter + Power Cord + CD Driver.
    *RAM, SSD, HDD, WiFi, Bluetooth are optional, if necessary, please contact customer service for your configuration.
    *Need more fanless industrial PCs models information, please check the Model Brochure.

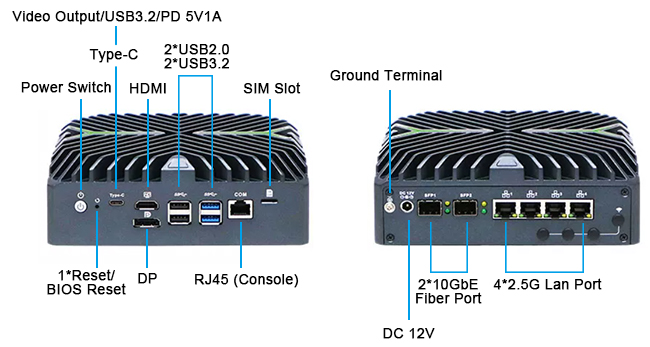

    Industrial PC Rich Interfaces
    industrial pc IBOX QM87 rich interfacesApplications
    industrial pc applications 2Tips:
    IPCs often run in harsh environments and require higher data security. Therefore, IPCs are usually designed for special applications such as reinforcement, dust protection, moisture protection, corrosion protection, and radiation protection.
    Industrial PC carries out real-time online detection and control of the industrial production process, gives rapid response to the change of the working condition, and promptly carries out the acquisition and output adjustment (the watchdog function is not available by the ordinary PC). It is reset in distress and ensures the normal operation of the system. Because of the use of the floor +CPU card structure, industrial PC has a strong input and output function, and can expand 20 cards at most. It can be connected with various peripherals, board cards such as road controller, video monitoring system, vehicle detection instrument and so on to complete various tasks.

    Existing reviews of Fanless Embedded Industrial PC, core i3 i5 i7, 6 COM, 2 LAN
    What is power consumption ranges of your industrail PC?
    What is power consumption ranges of your industrail PC? Is it high? I want a small capacity, so can run from solar system.
    From: Shankar Raju | Date: 31/05/2020
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Our industrial PC is already very small power capacity, its rated power is approx 15-30W.
    Great Fanless Embedded Industrial PC
    Very nicely made mini PC running Windows 10 Pro. Easy set up right out of the box. I am using it as a remote PC on a VPN to control equipment. Lots of connectivity with 2 LAN ports and 2 HDMI ports. Had no problem at all driving my 34" Dell monitor at 3440 X 1440 during initial verification. The computer has been left on all the time and only gets warm to touch.
    From: Elliott Paiken | Date: 18/12/2018
    Was this review helpful? Yes No (0/0)
