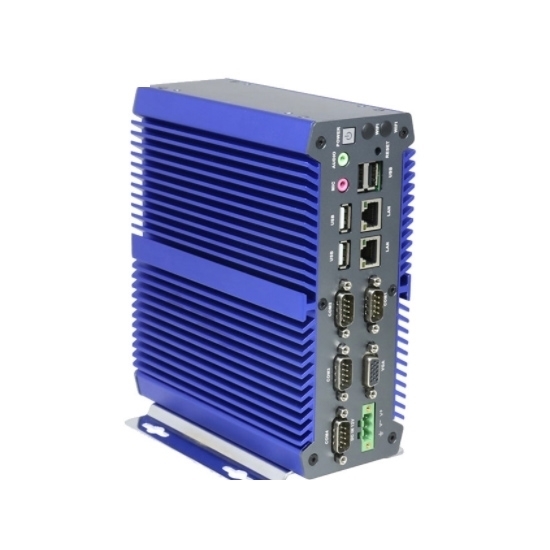

    Fanless Embedded Industrial PC, 3865U dual core 1.8 GHz, 4 COM

    $880.16
    The fanless design industrial PC equips with Intel Celeron 3865U dual core 1.8GHz CPU, embedded 4G DDR4 RAM, 128G SSD, 4*RS232 COM, 2*USB2.0 and 2*USB3.0. High quality pure aluminum body for quick heat dissipation. WiFi is optional and bracket is embedded, it can be mounted on the wall.
    SKU: ATO-IPC-700
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Industrial PC Features

    • Celeron 3865U dual core 1.8GHz
    • 1*VGA+2*Intel 1000M Lan+2*USB2.0+2*USB3.0+4*COM (COM1 can support RS422/485)
    • Embedded 4G DDR4 RAM+128G SSD
    • High quality pure aluminum fanless case
    • 1*7+15 Pin SATA, 1*half-size Mini-PCIE support WiFi
    • 2* Intel i211-AT 10/100/1000M LAN card, support wake on lan, PXE
    • DC onboard power supply 9-36V and AC power adapter 12V/5A
    • Applied in Digital signage, KIOSK, Advertising Machine, Self-service Terminal, Electronic Whiteboard, ATM, POS/Retail, Networking, Automation, Surveillance, Parking Pay Station, Channel System, Medical electronic etc..

    Specification

    Model IBOX-700 Plus
    Material Pure Aluminum
    Processor Onboard Intel Celeron 3865U (Dual core dual threads, 2MB Third Cache,1.8 GHz)
    RAM 4G DDR4 RAM
    SSD 128G
    CPU Architecture KabyLake-U
    Applied Operating System Win7/ win10/ Linux (Centos or Ubuntu) system
    BIOS 64Mb SPI FLASH
    Display Chip Integrated Intel HD Graphics 610/620
    Display Port 1*VGA, 1*HDMI (Built-in pins, support Synchronous and Asynchronous Dual Display)
    Rear I/O 2*USB3.0, 2*USB2.0, 1*Power Switch, 2*Intel 1000M LAN, 1*VGA
    1*3Pin Power Phoenix Connector, 1*Clean COMS Key, 1*MIC, 1*Speaker
    4*COM (Max. Support 6*COM, COM1 can support RS232/422/485 Optional)
    Expansion Slot Support 1*MINI PCIE Slot (WIFI/3G/4G Optional), Embedded SIM Slot
    Support 1*MINI PCIE Slot (Support MSATA)
    Built-in 2*USB2.0
    GPIO, HDMI, Extra 2*COM is Optional (Standard version doesn't have these ports)
    LAN 2*Intel i211-AT 10/100/1000M LAN
    Storage Onboard 1*2.5" HDD, 1*MSATA
    Power Supply DC 9~36V wide voltage input, Support positive pole and negative electrode connect reversely protection
    Work Temperature 0℃~+50℃ (HDD), -20℃~+60℃ (SSD), Surface air flow
    Work Humidity 5% ~ 95% Non-Condensing
    Dimension 185*160*74 mm (Not include bracket)
    Weight 2.2kg (Not include bracket)

    Note:
    *Packing list included PC + Power Adapter + Power Cord + CD Driver.
    *RAM, SSD, HDD, WiFi, Bluetooth are optional, if necessary, please contact customer service for your configuration.
    *Need more fanless industrial PCs models information, please check the Model Brochure.

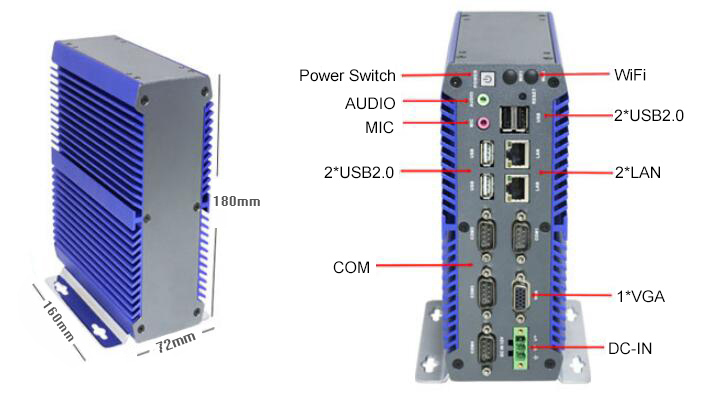

    Industrial PC Rich Interfaces

    industrial pc rich interface 3

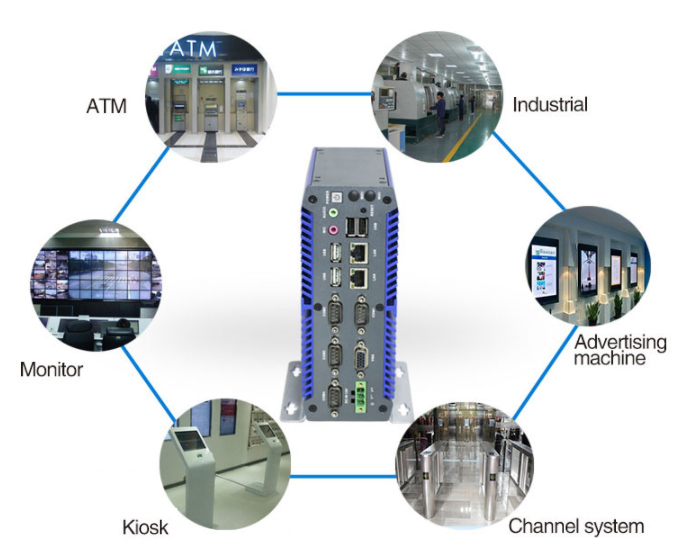

    Applications

    industrial pc applications 1Tips:
    Industrial PCs work in different situations, which inevitably lead to the difference between their components and general-purpose computers. For example, industrial PC can have multiple serial ports without a display screen, and its CPU is dedicated industrial control CPU, and the system boards used is very small. All of these characteristics reflect the differences in the composition of ordinary computers and industrial computers. Because of the harsh environment of industrial control, special parts are often required to form the computer for industrial control. In some cases, for example, a wide range of working temperatures is required, and many industrial computers can work within temperatures ranging from minus 20 to 80 degrees. In other cases, more stable devices, such as anti-interference devices, are needed.
