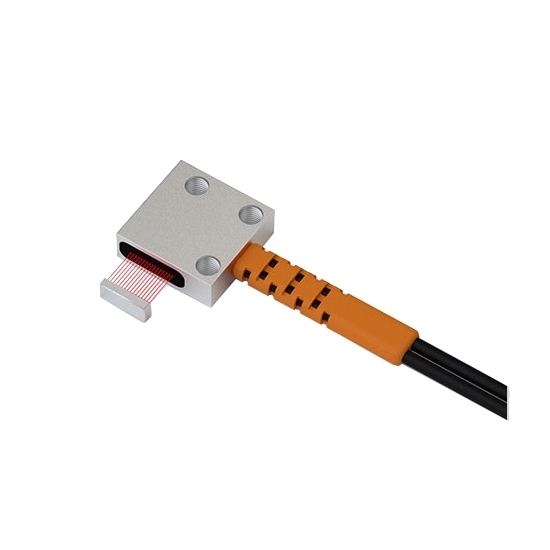

Rectangular Fiber Optic Sensor, Lateral Induction

Designed for high-precision detection, this rectangular fiber optic sensor uses a diffuse reflection detection type with lateral induction for sensitive and stable detection. 2 meter fiber optic cable provides flexible mounting options with a minimum bending radius of R25, making it easy to route in complex scenarios.

Specification

Feature

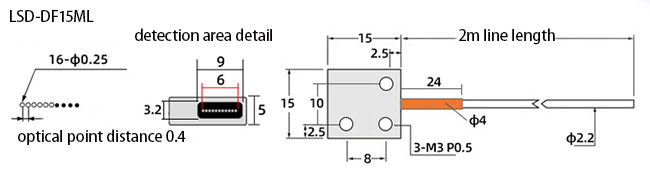

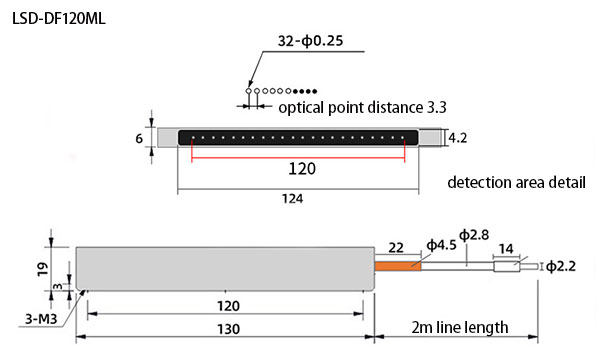

Dimensional Drawing (unit: mm)

Note: Please click on the PDF file to view the size information for other specifications.

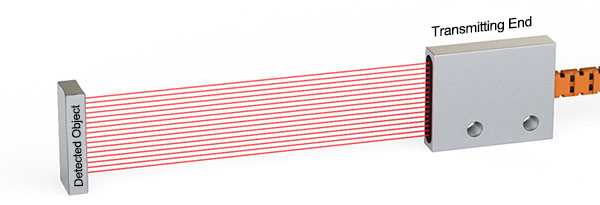

Detection Type

Diffuse Reflective: When the switch emits a beam of light, the target is diffusely reflected and the emitter and receiver form a single standard component. The switch state changes when enough combined light returns to the receiver.

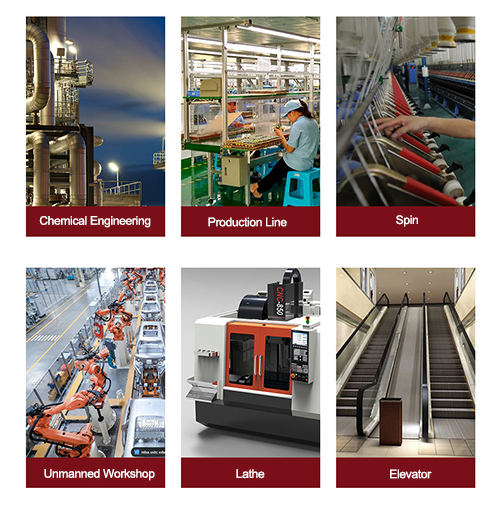

Applications

Tips: What is a rectangular fiber optic sensor?

A rectangular fiber optic sensor is a sensing device that uses fiber optic technology to make measurements with a rectangular shaped cross section. It senses physical or chemical changes in the environment by sending light signals to a specific sensing area and detecting changes in the returned light signals (such as intensity, phase or wavelength). The core principle of this fiber optic sensor is based on the reflective, refractive or interferometric properties of light. When external conditions (e.g. pressure, temperature or displacement) change, the properties of the light signal change accordingly, providing accurate measurement data.
