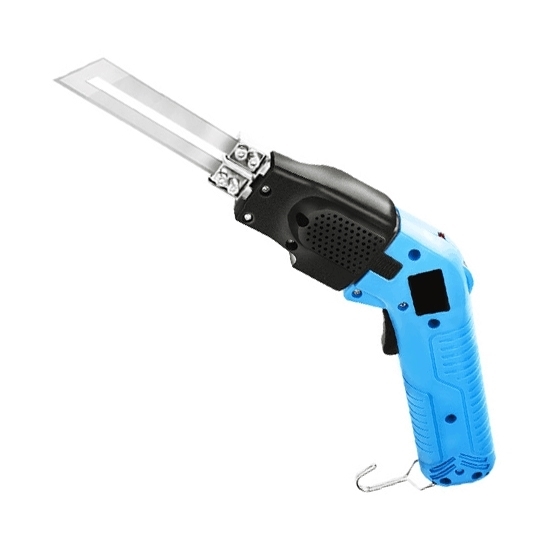

Handheld Hot Knife Foam Cutter, EPS/XPS, 200mm Blade

Write a review

$229.15

Handheld foam cutter can be used continuously with air cooling system. The 200mm blade on this hot knife can heat up to 500℃ in seconds to give you fast & clean cutting without mess, great for EPS, XPS, etc., for commercial and industrial use. Electric foam cutter is supplied via AC 230V 50Hz and max. power 190W, designed with variable temperature control, light weight, high efficiency and favorable price.

SKU: ATO-CUTTER-7H

Package Included *

Qty:

Free Shipping Worldwide

Delivery date: 6-20 days

Overview

Handheld hot knife foam cutter is greatly suitable for continuous cutting work with air-cooling system. This electric cutting tool heats instantly and makes fast, clean & precise cuts, mainly used for cutting Expanded Polystyrene EPS foam and Extruded Polystyrene XPS foam in industrial and commercial environments.

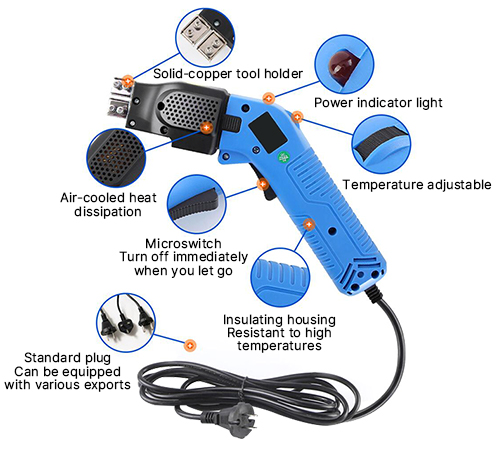

Features

With air-cooling system, hot knife can be operated continuously.
Excellent for cutting EPS/XPS foam board, fast and clean.
Temperature can reach up to 500℃ in seconds.
Variable temperature control via adjustable knob, total 16 steps.
With groover-sled (Optioanl), allowing to cut different foam shape easily for DIY sculpture or artwork.

Specification

Model	ATO-KD-7H
Voltage	AC 230V 50Hz
Power	Max. 190W
Operation Time	24 hrs continuously operation
Adjustable Knob	16 steps
Max. Temperature	500℃
Power Cord Length	3m
Product Weight	610g

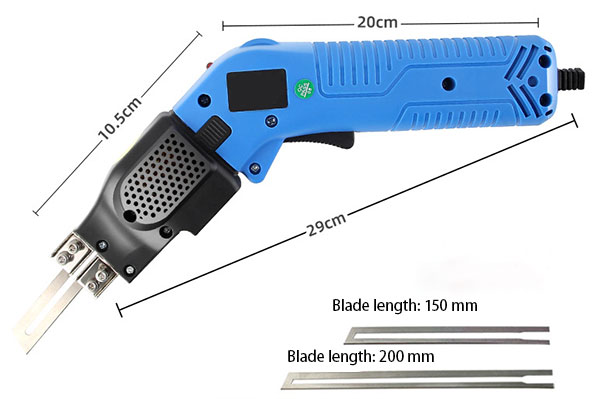

Handle Length	320mm
Package Included (Optional)	1#. Foam Cutter + Straight Blade 200mm + Spanner + Brush + Plastic Box + User Manual 2#. Foam Cutter + Large Groover- sled + Flexible Blade 305mm + Straight Blade 150mm + T-square + Spanner + Brush + Plastic Box + User Manual 3#. Foam Cutter + Small Groover- sled + Flexible Blade 305mm + Straight Blade 150mm + Spanner + Brush + Plastic Box + User Manual 4#. Foam Cutter + Cutting Guider + Straight Blade 150mm + T-square + Spanner + Brush + Plastic Box + User Manual

Hot Knife w/ 20cm Blade for Cutting EPS/XPS

Items	EPS Foam Board	XPS Foam Board
Cutting Length	100cm	100cm
Foam Thickness	20cm	20cm
Foam Density	15Kgs/M³	32Kgs/M³
Cutting Speed (including preheating time)	32 seconds	52 seconds

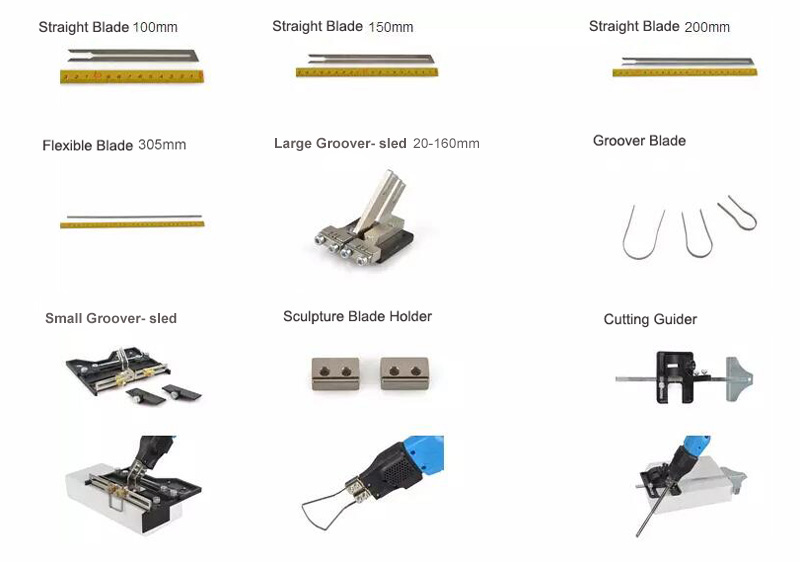

Foam Cutter Accessories

Handheld Foam Cutter Accessories

Note: If you need any extra accessories that is not included in the package, please contact us.

Tips: Hot Knife Foam Cutter Installation Notes

After the foam cutter has cooled, unscrew the nut.
Insert the two feet of the blade into the two blade holders and tighten the nuts.
Make sure that the blade and holder are in full contact. If the blade of hot knife is not installed properly, the blade will not be heated.
Power on the foam cutter.
The temperature adjustment knob of the cutter has 16 steps. You can adjust a suitable temperature according to the cutting requirement.
