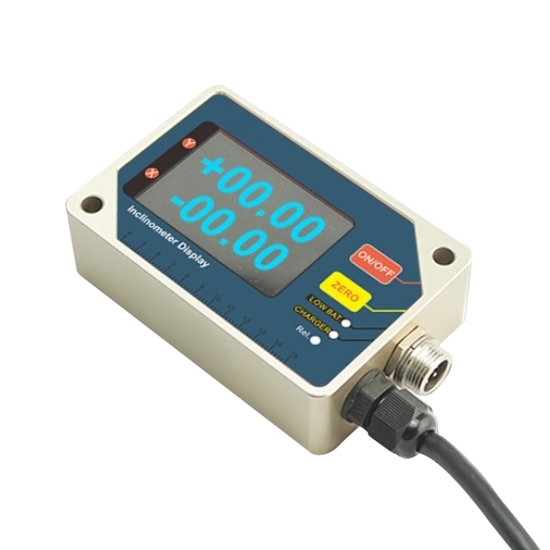

Handheld Inclinometer Sensor Monitor, Digital Display

Inclinometer display monitor offers fast response, RS232/RS485 long-distance transmission, and zero or alarm calibration functions. Designed with a rugged housing and PVC film keypad, it ensures accurate data display and stable operation even in harsh environments.

Specification

Note: This inclinometer sensor monitor serves as a data presentation terminal and must be paired with a compatible sensor.

Features

• High-Precision Digitalization: ATO handheld inclinometer monitor provides clear dual-screen readings with 0.01°/0.001° resolution for accurate angle measurement.
• Industrial-Grade LCD: Designed for industrial inclinometer applications, the display performs reliably from -25°C to 80°C with excellent visibility and durability.
• Stable Communication: Supports long-distance data transmission up to 500m, ensuring fast and reliable connections for digital angle monitoring systems.
• User-Friendly Calibration and Customization: Offer zero calibration, magnetic correction, and alarm settings, along with a customizable panel and key functions for flexible automation.

Dimension

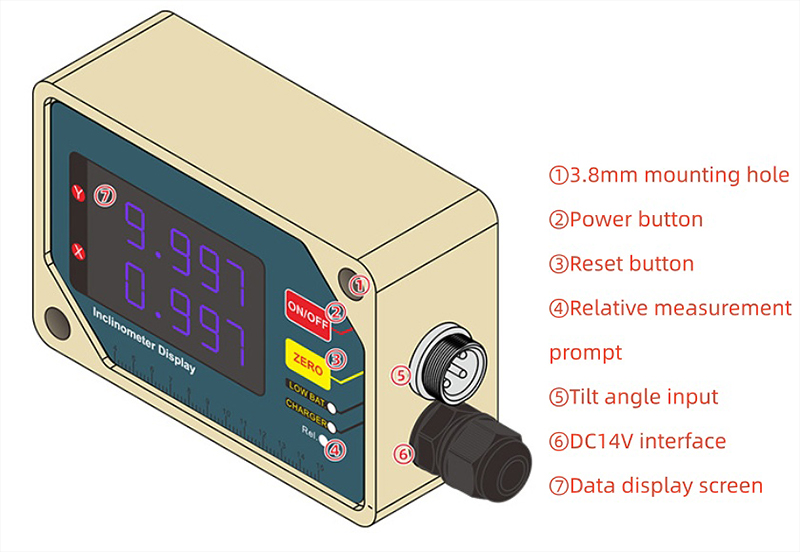

Details

Notes:

• This digital display unit requires an external power supply of DC 9–36V.
• This model does not feature a low-battery warning.
• The zero-reset button must be pressed continuously for 3 seconds to activate.

Tips: Why is resolution and communication range crucial for industrial inclinometers?

High resolution allows for precise angle measurements, which are essential for accurate control and monitoring in automated systems and machinery. Long-distance communication ensures reliable data transmission across large industrial setups, enabling flexible sensor placement. ATO handheld inclinometer sensor monitor offers 0.01°and 0.001° resolution for precision, while RS232 (50m) and RS485 (500m) communication capabilities ensure stable data transmission over long distances, making it ideal for complex industrial applications.
