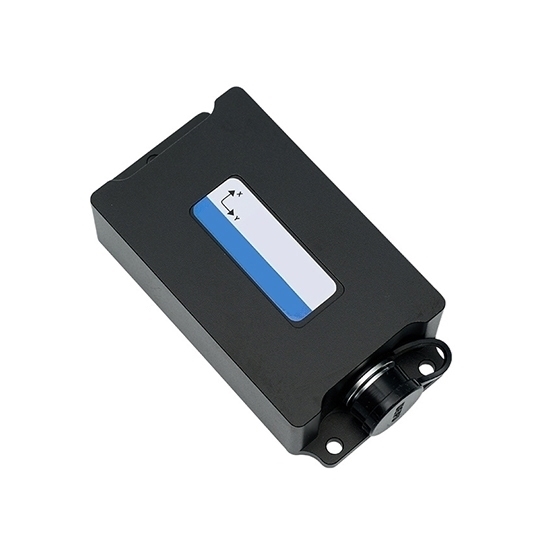

High Precision Digital Inclinometer Sensor, 0.001°Accuracy, 2 Axis

Write a review

$1,323.88

Hot-selling high-precision digital inclinometer sensor, measuring range can be selected from ±5° ~ ±15°, accuracy of 0.001°, to provide 2 axis: X, Y axis inclination measurement, the sensor using RS232 / RS485 / RS422 / TTL / Modbus protocol output, designed for precision equipment to provide high-precision tilt measurement.

Measuring Range *
Output Signal *

SKU: ATO-IMS-AVT

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Digital inclinometer sensor 0.001° high precision stock for sale, dual-axis precision measurement, accuracy of up to 0.001 °, range ± 5°/± 10°/± 15°/± 30° optional, resolution of 0.0005 °, rapid response of only 0.01 seconds, equipped with RS232/ RS485/ RS422/ TTL/ Modbus output signals, stability of <0.002 °. Output frequency can be set to 5~50Hz. Output frequency can be set from 5Hz ~ 50Hz, shock resistance up to 20000g, superior vibration resistance, IP67 protection and wide temperature design, suitable for a variety of industrial measurement applications.

Specifications

Model	ATO-AVT2000T-5	ATO-AVT2000T-10	ATO-AVT2000T-15	ATO-AVT2000T-30
Measuring Range	±5°	±10°	±15°	±30°
Accuracy	0.001°	0.002°	0.003°	0.005°
Long-term Stability	<0.002°	<0.003°	<0.004°	<0.006°
Output Signal	RS232/ RS485/ RS422/ TTL/ Modbus Protocol (optional)
Measuring Axis	X, Y Axis
Resolution	0.0005°
Frequency Response	DC response 100Hz
Zero Temperature Drift	±0.0005°/°C
Sensitivity Temperature Coefficient	≤50ppm/°C
Power-up Time	0.2s
Response Time	0.01s
Rate	5Hz output, 15Hz, 35Hz, 50Hz settable
Average Operating Time	≥45000 hours/times
Shock Resistance	20000g, 0.5ms, 3 times/axis
Vibration Resistance	10g/ms, 10 ~ 1000Hz
Insulation Resistance	≥100MΩ
Supply Voltage	11~36V
Working Current	No load 40mA
Operating Temperature	-40°C~+85°C
Storage Temperature	-55°C~+125°C
Housing Material	Aluminum alloy with matte oxidation
Mounting	Three M4 screws
Waterproof Grade	IP67
Cable	Standard 1.5 meter length, abrasion resistant, oil resistant, wide temperature, shielded cable 5*0.2mm2
Weight	250g (without box)

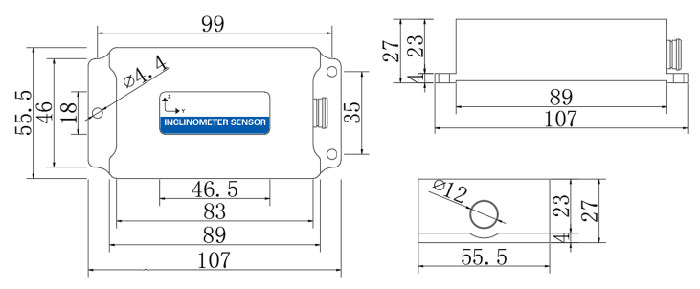

Dimension (unit: mm)

High precision digital inclinometer sensor dimension

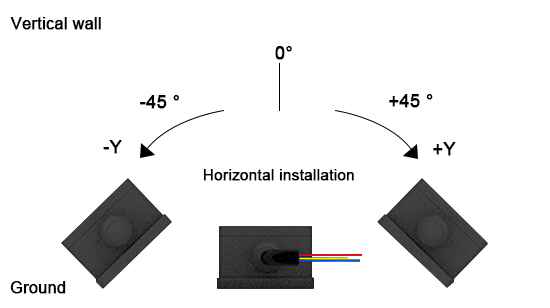

Installation Method

High precision digital inclinometer sensor installation method

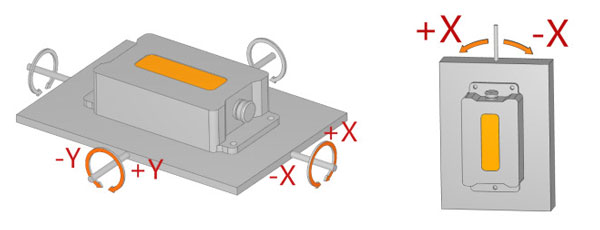

Measurement of Axial Direction

High precision digital inclinometer sensor measuring of axial direction

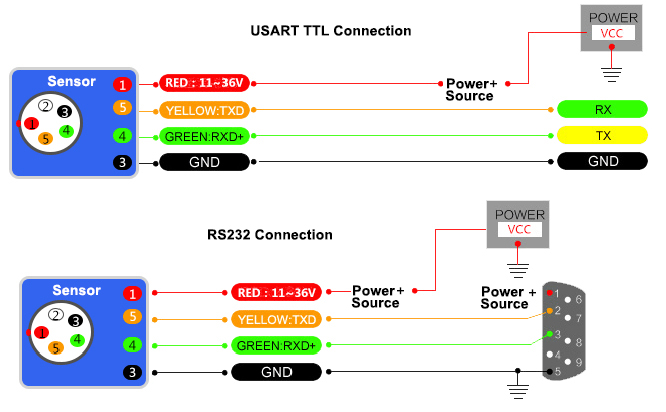

Wiring Diagram

High precision digital inclinometer sensor wiring diagram

RS232/RS485/TTL Wiring

Electrical Connection	Line Color Function
	1	2	3	4	5
	Red	White	Black	Green	Yellow
RS232	VCC	NC	GND	RXD	TXD
RS485	VCC	NC	GND	(B, D-)	(A, D+)
TTL	VCC	NC	GND	RXD	TXD

RS422 Wiring

RS422	1	2	3	4	5	6
	Red	Black	Green	Yellow	White	Brown
	VCC	GND	RXD- (B-)	RXD+ (A+)	TXD- (A+)	TXD- (B-)

Application

High precision digital inclinometer sensor application

Tips: High accuracy digital dual-axis inclinometer sensor basic introduction

AVT-2000T is an ultra-high accuracy dual-axis tilt sensor introduced by ATO, with a resolution of 0.0005°, an accuracy of 0.001°, and a temperature drift of 0.0005°/°C. The output interface RS232, RS485, RS422, and TTL are optional. Output enclosure RS232, RS485, RS422, TTL optional. Inclination sensor digital signal transmission is supported by a professional computer software, data measurement and recording.

The use of non-contact installation features excellent system integration, easy and convenient installation, just use the screws to fix the sensor on the surface of the object to be measured, you can calculate the horizontal angle of the object, simple to use. Resistance to external electromagnetic interference ability, the ability to withstand shock and vibration, in the peer products more ideal choice.
