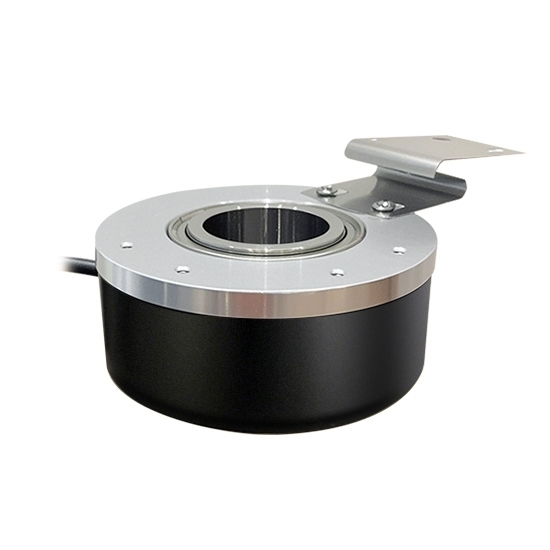

Incremental Rotary Encoder, Hollow Shaft, 1800 ppr

5 out of 5 based on 1 reviews | Write a review
$269.27
Inexpensive optical encoder adopts hollow shaft, can sleeve-jointed on motor output shaft, high quality, manufacturer direct sale. 1800 ppr incremental rotaty encoder has optional voltage 5VDC/8-30VDC, optional 6 output modes, Φ80mm shell, Φ30mm shaft and cable edge output connection mode.
*
*
*
SKU: ATO-IRE-1800PH
30-day Returns
Free Shipping
Delivery date: 6-12 days

Incremental rotary encoders with 1800 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

Specification

Basics Model ATO-K8030G-1800BM
Weight 100 g
Wiring Color Red Black Green White Yellow Brown Gray Orange
Signal Vcc GND A B Z A- B- Z-
Mechanical properties Maximum shaft speed (r/min) 5000
Starting torque <0.03Nm (25℃)
Maximum shaft load Radial load: 20N, axial load: 10N
Shock resistance 50G/11ms
Anti-vibration 10G (10~2000Hz)
Rotational inertia 4X10-8kgm2
Operating temperature -30~+85℃ (-22~+185℉)
Storage temperature -35~+95℃ (-31~+203℉)
Protection Level IP51
Electrical characteristics Output circuit Open-collector output Voltage output Push-pull output Line driver output
Supply voltage Vcc DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC5V±0.2 DC 5~24V
Current consumption ≤60mA ≤60mA ≤60mA ≤100mA
Output high level ≥3.5V ≥Vcc-2.5V - - ≥2.5V ≥Vcc-2.5V
Output low level ≤0.5V ≤0.5V - - ≤0.5V ≤1.0V
Rise time Tr ≤500ns ≤1500ns - - ≤200ns ≤500ns
Fall time Tf ≤100ns ≤300ns - - ≤200ns ≤200ns
Maximum frequency response 0~150kHz 0~150kHz 0~150kHz 0~150kHz 0~150kHz 0~150kHz


Model Selection

Shaft type Diameter of shell Diameter of shaft Connection type Cable length * Resolution Production identifier Z signal Z signal wavelength Output mode * Voltage *
K: Hollow shaft 80: 80mm 30: 30mm G: Cable edge output 1: 1m
2: 2m
3: 3m
4: 4m
1800: 1800 ppr B M: Output 1 if receiving Z signal Default: 1T C: Open-collector NPN
CP: Open-collector PNP
T: Voltage ouput NPN+R
P: Push-pull output NPN+PNP
L: Line driver 26LS31
K: Line driver 7272
5: +5VDC
830: +8~30VDC

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Features

  • The encoder adopts a special ASIC chip inside, which is stable and reliable in signal processing and ensures accurate output pulse.
  • The overall structure is durable, long life, suitable for long time high frequency operation of industrial occasions.
  • Incremental encoder has excellent anti-interference performance, can work stably in complex electromagnetic environment.
  • Compact and lightweight, suitable for automation equipment with limited installation space.
  • Modular design, easy installation, fast and efficient commissioning.

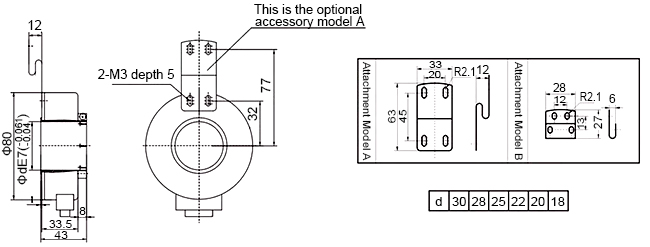

Dimension (unit: mm)

Incremental rotary encoder hollow shaft dimension

Application

Incremental rotary encoder application

Tips: How far can the distance between rotary encoder and system be?

The biggest problem with using long cables is that the cables become more susceptible to noise. This is due to the capacitance of the cable that makes the cable behave like an antenna, meanwhile the power will be wastage through the cable. To get the maximum cable distance, must follow some basic wiring guidelines:
Keep the cables away from objects that generate a significant amount of electrical noise. This includes AC motors, arc welders, AC power cords and transformers.
Use twisted pair when using signals with complementary signals, use shielded cables when using any type of signal. The output voltage use maximum voltage allowed. For example, if the rotary encoder can output 5 to 24V, then use 24V. Use open-collector output, or differential line driver output with differential receiver chip, to get the maximum drain and source current.
If the encoder is used as input to more than one controller, use a signal amplifier. This is also a good way to increase the distance the signal is transmitted. When using differential inputs, the typical differential line driver has a maximum distance of about 100 feet and the open collector distance is about 35 feet.
