    Incremental Rotary Encoder, Hollow Shaft, 2048 ppr

    5 out of 5 based on 1 reviews | Write a review
    $237.46

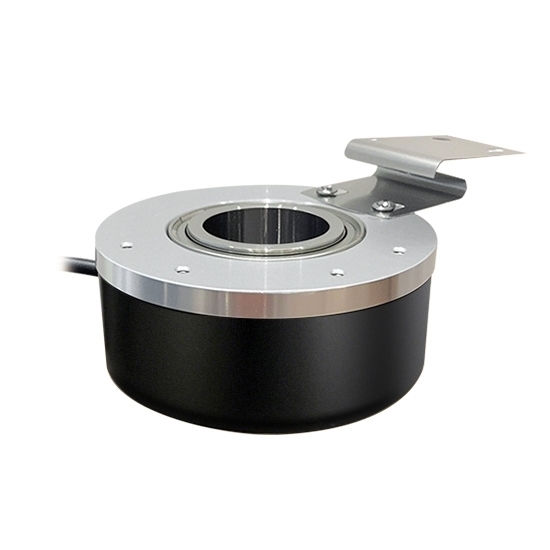

    2048 ppr incremental rotaty encoder has optional voltage 5VDC/8-30VDC, optional 6 output modes, 80mm shell diameter, 20mm shaft diameter and cable edge output connection mode. Optical incremental encoder can sleeve-jointed on motor output shaft, high quality, manufacturer direct sale.
    *
    *
    *
    SKU: ATO-IRE-2048PH
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Incremental rotary encoders with 2048 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

    Features:

    • Incremental rotary encoder internal adopts ASIC devices
    • High reliability, long life
    • Anti-jamming performance
    • Small size, light weight, compact structure
    • Easy installation

    Specification:

    Basics Model ATO-K8020G-2048BM
    Weight 100 g
    Wiring Color Red Black Green White Yellow Brown Gray Orange
    Signal Vcc GND A B Z A- B- Z-
    Mechanical properties Maximum shaft speed (r/min) 5000
    Starting torque <0.03Nm (25℃)
    Maximum shaft load Radial load: 20N, axial load: 10N
    Shock resistance 50G/11ms
    Anti-vibration 10G (10~2000Hz)
    Rotational inertia 4X10-8kgm2
    Operating temperature -30~+85℃ (-22~+185℉)
    Storage temperature -35~+95℃ (-31~+203℉)
    Protection Level IP51
    Electrical characteristics Output circuit Open-collector output Voltage output Push-pull output Line driver output
    Supply voltage Vcc DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC5V±0.2 DC 5~24V
    Current consumption ≤60mA ≤60mA ≤60mA ≤100mA
    Output high level ≥3.5V ≥Vcc-2.5V - - ≥2.5V ≥Vcc-2.5V
    Output low level ≤0.5V ≤0.5V - - ≤0.5V ≤1.0V
    Rise time Tr ≤500ns ≤1500ns - - ≤200ns ≤500ns
    Fall time Tf ≤100ns ≤300ns - - ≤200ns ≤200ns
    Maximum frequency response 0~150kHz 0~150kHz 0~150kHz 0~150kHz 0~150kHz 0~150kHz

    Model selection:

    Shaft type Diameter of shell Diameter of shaft Connection type Cable length * Resolution Production identifier Z signal Z signal wavelength Output mode * Voltage *
    K: Hollow shaft 80: 80mm 20: 20mm G: Cable edge output 1: 1m
    2: 2m
    3: 3m
    4: 4m
    2048: 2048 ppr B M: Output 1 if receiving Z signal Default: 1T C: Open-collector NPN
    CP: Open-collector PNP
    T: Voltage ouput NPN+R
    P: Push-pull output NPN+PNP
    L: Line driver 26LS31
    K: Line driver 7272
    5: +5VDC
    830: +8~30VDC

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

    Dimension:

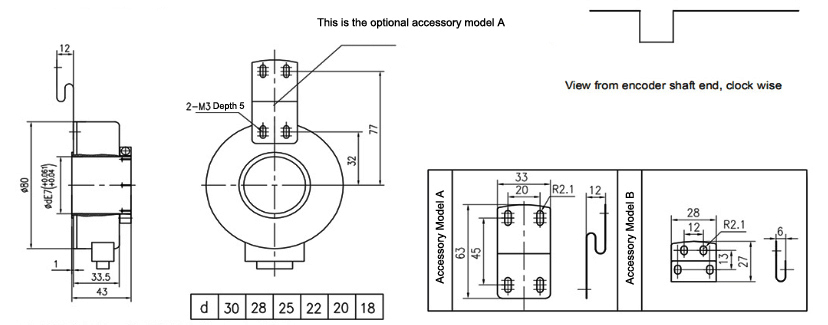

    2048ppr incremental rotaty encoder size

    Tips: How to determine the encoder zero position

    1. Rotate the encoder shaft to correspond zero positon when installing the encoder.
    2. It is similar to the above method, but rotate the encoder shell and find zero position.
    3. Power on and move the installation machine tocorrespond zero positon.
    4. Offset calculation, it is not necessary to find zero for the machinery and encoder, according to the deviation of the encoder readings and the actual position of the calculation, get the offset, after the encoder reading minus the offset. It can be repeated several times to correct the offset.
    5. Intelligent external zero setting, such as setting zero through the button of the encoder, or the external software.
    6. The best position-setting method is to preset a non-zero position (leave margins for slip and overshoot), and preset rotation direction and offset calculation. Or set a middle position, the offset is the midpoint value, the setting line and the power is in direct contact, the encoder output is the midpoint position, this trip is +/- half full; within this range of travel, it will not hop zero position every time it goes through regardless of the direction of rotation.
