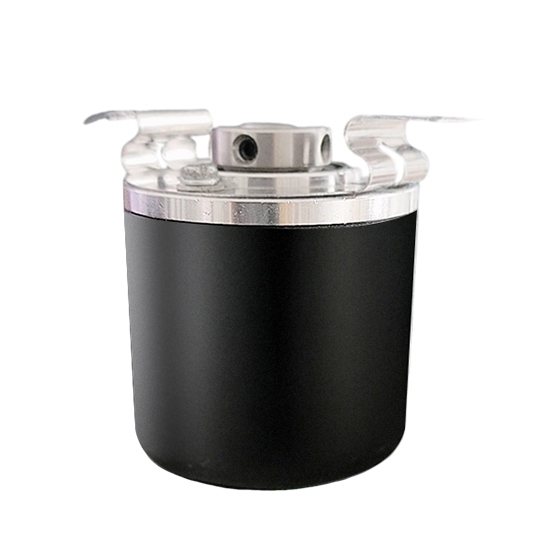

    Incremental Rotary Encoder, Hollow Shaft, 1000 ppr

    5 out of 5 based on 1 reviews | Write a review

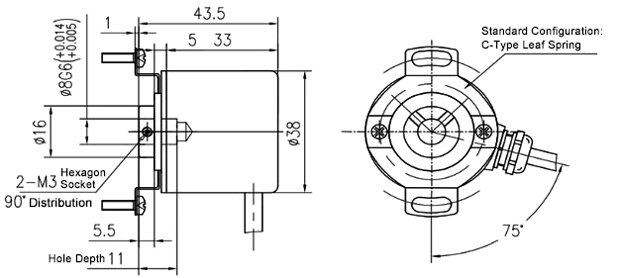

    1000 ppr optical rotary encoder adopts hollow shaft, can sleeve-jointed on motor output shaft. Incremental rotary encoder has 38mm shell diameter, 8mm shaft diameter, high reliability, high resolution, high quality, 6 output modes to choose and optional 5V/8-30V DC working voltage.
    SKU: ATO-IRE-1000PH
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Incremental optical rotary encoders with 1000 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.


    • Incremental rotary encoder internal adopts ASIC devices
    • High reliability, long life
    • Anti-jamming performance
    • Small size, light weight, compact structure
    • Easy installation


    Basics Model ATO-K3808G-1000BM
    Weight 100 g
    Wiring Color Red Black Green White Yellow Brown Gray Orange
    Signal Vcc GND A B Z A- B- Z-
    Mechanical properties Maximum shaft speed (r/min) 5000
    Starting torque <0.03Nm (25℃)
    Maximum shaft load Radial load: 35N, axial load: 15N
    Shock resistance 50G/11ms
    Anti-vibration 10G (10~2000Hz)
    Rotational inertia 4X10-8kgm2
    Operating temperature -30~+85℃ (-22~+185℉)
    Storage temperature -35~+95℃ (-31~+203℉)
    Protection Level IP51
    Electrical characteristics Output circuit Open-collector output Voltage output Push-pull output Line driver output
    Supply voltage Vcc DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC5V±0.2 DC 5~24V
    Current consumption ≤60mA ≤60mA ≤60mA ≤100mA
    Output high level ≥3.5V ≥Vcc-2.5V - - ≥2.5V ≥Vcc-2.5V
    Output low level ≤0.5V ≤0.5V - - ≤0.5V ≤1.0V
    Rise time Tr ≤500ns ≤1500ns - - ≤200ns ≤500ns
    Fall time Tf ≤100ns ≤300ns - - ≤200ns ≤200ns
    Maximum frequency response 0~150kHz 0~150kHz 0~150kHz 0~150kHz 0~150kHz 0~150kHz

    Model selection:

    Shaft type Diameter of shell Diameter of shaft Connection type Cable length * Resolution Production identifier Z signal Z signal wavelength Output mode * Voltage *
    K: Hollow shaft 38: 38mm 08: 8mm G: Cable edge output 1: 1m
    2: 2m
    3: 3m
    4: 4m
    1000: 1000 ppr B M: Output 1 if receiving Z signal Default: 1T C: Open-collector NPN
    CP: Open-collector PNP
    T: Voltage ouput NPN+R
    P: Push-pull output NPN+PNP
    L: Line driver 26LS31
    K: Line driver 7272
    5: +5VDC
    830: +8~30VDC

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

    Tips: The resolution of the incremental encoder

    The resolution of an optical incremental encoder is expressed in terms of the number of basic cycles of the output signal generated by the encoder shaft rotating a circle, namely the number of pulse per revolution (PPR). The number of light-transmitting slits on the code disc is equal to the resolution of the coder. The more the slits engraved on the code disc, the higher the resolution of the coder. In the industrial electric drive, depending on different application object, usually choose optical incremental encoder with 500-6000PPR resolution, or up to tens of thousands of PPR. AC servo motor control system is usually selected with a resolution of 2500PPR encoder. In addition, if the photoelectric conversion signal is logical processed, the pulse signal with 2 times or 4 times of the frequency will be get, and the resolution will be further improved.


    Existing reviews of Incremental Rotary Encoder, Hollow Shaft, 1000 ppr
    So far so good!
    This is a very nice rotary encoder. I've tested this incremental rotary encoder for a day and am pleased with the results so far. I am adding this into my project shortly and will update if there is any problem.
    From: Judy | Date: 20/04/2022
    Was this review helpful? Yes No (0/0)
