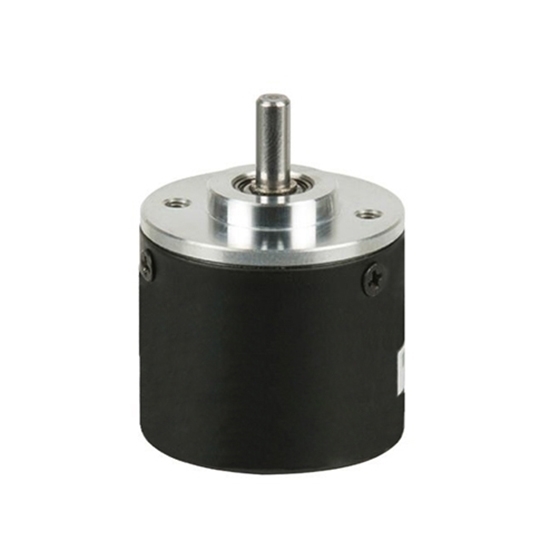

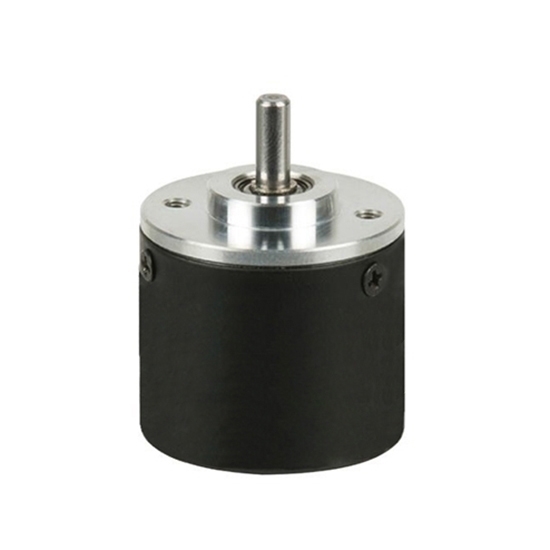

Incremental Rotary Encoder, Shaft, 1000 ppr

5 out of 5 based on 1 reviews | Write a review

$155.24

Optical rotary encoder adopts stainless steel solid shaft. The diameter of shaft is 6mm. 1000 ppr incremental rotary encoder has shell diameter 38mm, working voltage 5VDC/ 8-30VDC, operating temperature -30~+85℃ (-22~+185℉), cable edge output mode, high reliability, high quality and 6 output mode.

Cable Length *
Output Mode *
Voltage *

SKU: ATO-IRE-1000PS

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

1000 ppr incremental optical rotary encoders can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

Features:

Incremental rotary encoder internal adopts ASIC devices
High reliability, long life
Anti-jamming performance
Small size, light weight, compact structure
Easy installation

Specification:

Basics

Model

ATO-S3806G-1000BM

Weight

100 g

Wiring

Color

Red

Black

Green

White

Yellow

Brown

Gray

Orange

Signal

V_cc

GND

A-

B-

Z-

Mechanical properties

Maximum shaft speed (r/min)

5000

Starting torque

<0.03Nm (25℃)

Maximum shaft load

Radial load: 50N, axial load: 20N

Shock resistance

50G/11ms

Anti-vibration

10G (10~2000Hz)

Rotational inertia

4X10^-8kgm²

Operating temperature

-30~+85℃ (-22~+185℉)

Storage temperature

-35~+95℃ (-31~+203℉)

Protection Level

IP51

Electrical characteristics

Output circuit

Open-collector output

Voltage output

Push-pull output

Line driver output

Supply voltage V_cc

DC 5V±0.2

DC 5～24V

DC 5V±0.2

DC 5～24V

DC 5V±0.2

DC 5～24V

DC5V±0.2

DC 5～24V

Current consumption

≤60mA

≤100mA

Output high level

≥3.5V

≥V_cc-2.5V

≥2.5V

≥V_cc-2.5V

Output low level

≤0.5V

≤1.0V

Rise time T_r

≤500ns

≤1500ns

≤200ns

≤500ns

Fall time T_f

≤100ns

≤300ns

≤200ns

Maximum frequency response

0～100kHz

Model selection:

Shaft type	Diameter of shell	Diameter of shaft	Connection type	Cable length *	Resolution	Production identifier	Z signal	Z signal wavelength	Output mode *	Voltage *
S: Shaft	38: 38mm	06: 6mm	G: Cable edge output	1: 1m 2: 2m 3: 3m 4: 4m	1000: 1000 ppr	B	M: Output 1 if receiving Z signal	Default: 1T	C: Open-collector NPN CP: Open-collector PNP T: Voltage ouput NPN+R P: Push-pull output NPN+PNP L: Line driver 26LS31 K: Line driver 7272	5: +5VDC 830: +8~30VDC

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Tips: What is the differential line driver output?

Differential output refers to the fact that each channel has a complementary channel, such as A and A-. Differential line drivers can help improve anti-noise property. Differential line drivers also allow to output more leak current or source current than push-pull output. Differential line driver is working with the leakage and the source circuit at the same time. It can also help increase the signal transmission distance.
