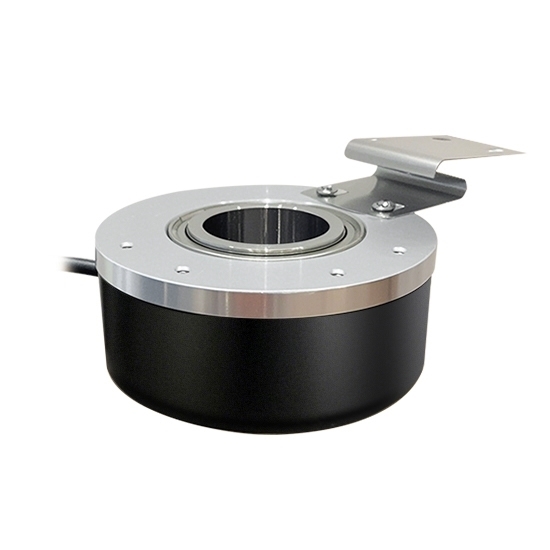

Incremental Rotary Encoder, Hollow Shaft, 5400 ppr

5 out of 5 based on 1 reviews | Write a review
$491.43
Favourable price optical incremental encoder adopts Φ30mm hollow shaft and Φ100mm shell, can sleeve-jointed on motor output shaft, high resolution 5400 ppr, high reliability, high quality, 6 output modes to choose, manufacturer direct sale.
*
*
*
SKU: ATO-IRE-5400PH
30-day Returns
Free Shipping
Delivery date: 6-12 days

Incremental rotary encoders with 5400 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

Specification

Basics Model ATO-K10030G-5400BM
Weight 100g
Wiring Color Red Black Green White Yellow Brown Gray Orange
Signal Vcc GND A B Z A- B- Z-
Mechanical properties Maximum shaft speed (r/min) 5000
Starting torque <0.03Nm (25℃)
Maximum shaft load Radial load: 20N, axial load: 10N
Shock resistance 50G/11ms
Anti-vibration 10G (10~2000Hz)
Rotational inertia 4X10-8kgm2
Operating temperature -30~+85℃ (-22~+185℉)
Storage temperature -35~+95℃ (-31~+203℉)
Protection Level IP51
Electrical characteristics Output circuit Open-collector output Voltage output Push-pull output Line driver output
Supply voltage Vcc DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC5V±0.2 DC 5~24V
Current consumption ≤60mA ≤60mA ≤60mA ≤100mA
Output high level ≥3.5V ≥Vcc-2.5V - - ≥2.5V ≥Vcc-2.5V
Output low level ≤0.5V ≤0.5V - - ≤0.5V ≤1.0V
Rise time Tr ≤500ns ≤1500ns - - ≤200ns ≤500ns
Fall time Tf ≤100ns ≤300ns - - ≤200ns ≤200ns
Maximum frequency response 0~150kHz 0~150kHz 0~150kHz 0~150kHz 0~150kHz 0~150kHz


Model Selection

Shaft type Diameter of shell Diameter of shaft Connection type Cable length * Resolution Production identifier Z signal Z signal wavelength Output mode * Voltage *
K: Hollow shaft 100: 100mm 30: 30mm G: Cable edge output 1: 1m
2: 2m
3: 3m
4: 4m
5400: 5400 ppr B M: Output 1 if receiving Z signal Default: 1T C: Open-collector NPN
CP: Open-collector PNP
T: Voltage ouput NPN+R
P: Push-pull output NPN+PNP
L: Line driver 26LS31
K: Line driver 7272
5: +5VDC
830: +8~30VDC

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Features

  • The encoder adopts a special ASIC chip inside, which is stable and reliable in signal processing and ensures accurate output pulse.
  • The overall structure is durable, long life, suitable for long time high frequency operation of industrial occasions.
  • Incremental encoder has excellent anti-interference performance, can work stably in complex electromagnetic environment.
  • Compact and lightweight, suitable for automation equipment with limited installation space.
  • Modular design, easy installation, fast and efficient commissioning.

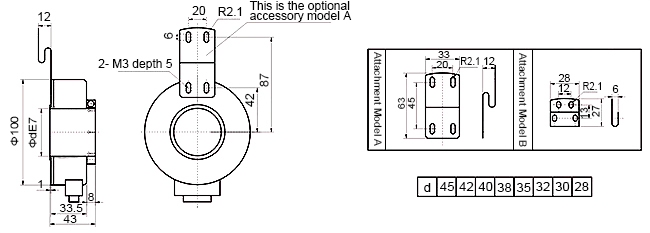

Dimension (unit: mm)

Hollow shaft incremental rotary encoder dimension

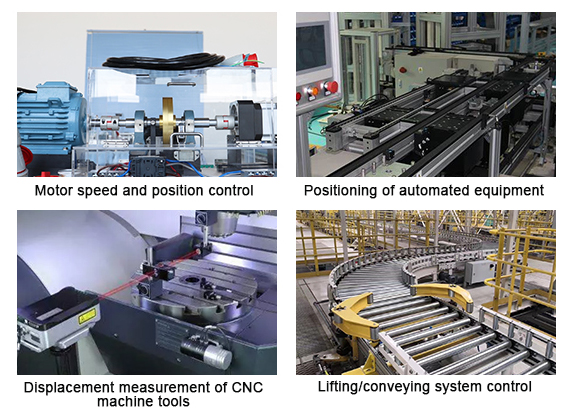

Application

Incremental rotary encoder application

Tips: How to determine whether the rotary encoder is interfered and fails?

  1. Exclude the sources of interference (remove, close, isolate).
  2. Determinate whether the mechanical gap cumulative error.
  3. Determine whether the control system matches with the encoder circuit interface (encoder selection error).

Try all the three methods and then trouble are eliminated, the reason can be initially determined. If not, then it needs to be further analyzed.
