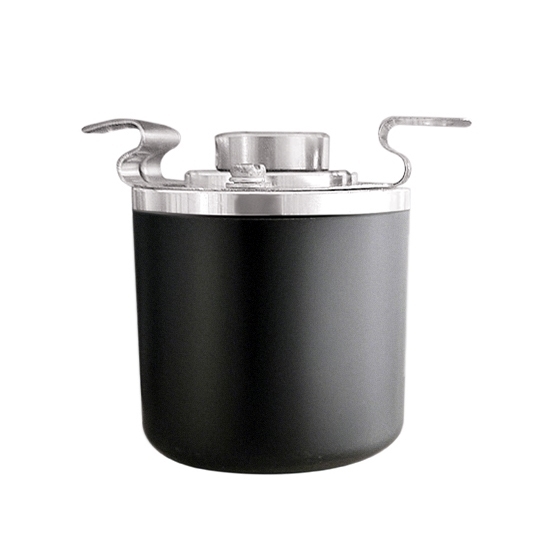

    Incremental Rotary Encoder, Blind Shaft, 3600 ppr

    $237.46
    Favourable price optical incremental encoder adopts blind shaft, small installation dimension, 3600 ppr resolution, high reliability, high quality, several output modes to choose, manufacturer direct sale. The shaft diameter is 14mm and the shell diameter is 60mm.
    SKU: ATO-IRE-3600PB
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-20 days

    Incremental optical rotary encoders with 3600 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

    Features:

    • Incremental rotary encoder internal adopts ASIC devices
    • High reliability, long life
    • Anti-jamming performance
    • Small size, light weight, compact structure
    • Easy installation

    Specification:

    Basics Model ATO-KP6014G-3600BM
    Weight 100 g
    Wiring Color Red Black Green White Yellow Brown Gray Orange
    Signal Vcc GND A B Z A- B- Z-
    Mechanical properties Maximum shaft speed (r/min) 5000
    Starting torque <0.03Nm (25℃)
    Maximum shaft load Radial load: 35N, axial load: 15N
    Shock resistance 50G/11ms
    Anti-vibration 10G (10~2000Hz)
    Rotational inertia 4X10-8kgm2
    Operating temperature -30~+85℃ (-22~+185℉)
    Storage temperature -35~+95℃ (-31~+203℉)
    Protection Level IP51
    Electrical characteristics Output circuit Open-collector output Voltage output Push-pull output Line driver output
    Supply voltage Vcc DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC5V±0.2 DC 5~24V
    Current consumption ≤60mA ≤60mA ≤60mA ≤100mA
    Output high level ≥3.5V ≥Vcc-2.5V - - ≥2.5V ≥Vcc-2.5V
    Output low level ≤0.5V ≤0.5V - - ≤0.5V ≤1.0V
    Rise time Tr ≤500ns ≤1500ns - - ≤200ns ≤500ns
    Fall time Tf ≤100ns ≤300ns - - ≤200ns ≤200ns
    Maximum frequency response 0~150kHz 0~150kHz 0~150kHz 0~150kHz 0~150kHz 0~150kHz

    Model selection:

    Shaft type Diameter of shell Diameter of shaft Connection type Cable length * Resolution Production identifier Z signal Z signal wavelength Output mode * Voltage *
    KP: Blind shaft 60: 60mm 14: 14mm G: Cable edge output 1: 1m
    2: 2m
    3: 3m
    4: 4m
    3600: 3600 ppr B M: Output 1 if receiving Z signal Default: 1T C: Open-collector NPN
    CP: Open-collector PNP
    T: Voltage ouput NPN+R
    P: Push-pull output NPN+PNP
    L: Line driver 26LS31
    K: Line driver 7272
    5: +5VDC
    830: +8~30VDC

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

    Tips: How to use rotary encoder outdoors or in harsh environments?

    When using the equipment outdoors, the environment is dirty and the encoder may be crashed.
    There is a kind of rotary encoder with aluminum sealed protective shell (can be made in stainless steel due to special requirements) and double heavy duty bearing, no need to worry about getting dirty outdoors. It can be used in steel factories as well as heavy equipment.
    However, if there is space for the installation of the encoder. It is recommended to add a protective shell outside the encoder to enhance its protection. After all, the encoder is a precision device. There is a price difference between a coder and a protective shell.
