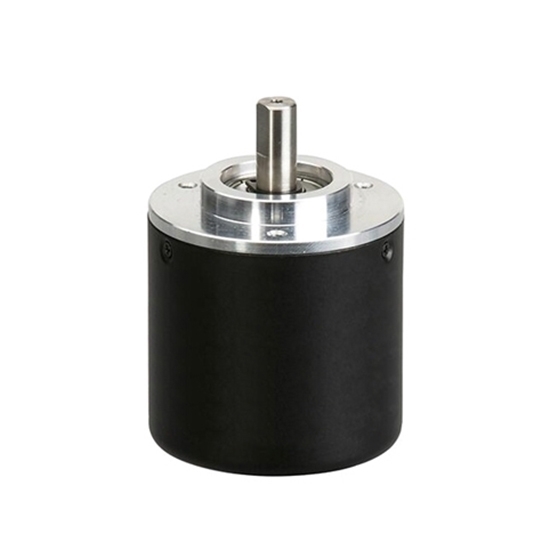

Incremental Rotary Encoder, Shaft, 3000 ppr

$237.46
Low cost incremental optical encoder adopts stainless steel shaft with diameter 10mm, shell diameter 58mm, high reliability, high resolution 3000 ppr, high quality, operating temperature -30~+85℃ (-22~+185℉), several output modes to choose, manufacturer direct sale.
*
*
*
SKU: ATO-IRE-3000PS
30-day Returns
Free Shipping
Delivery date: 6-12 days

Incremental optical rotary encoders with 3000 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

Features:

  • Incremental rotary encoder internal adopts ASIC devices
  • High reliability, long life
  • Anti-jamming performance
  • Small size, light weight, compact structure
  • Easy installation

Specification:

Basics Model ATO-S5810G-3000BM
Weight 100 g
Wiring Color Red Black Green White Yellow Brown Gray Orange
Signal Vcc GND A B Z A- B- Z-
Mechanical properties Maximum shaft speed (r/min) 5000
Starting torque <0.03Nm (25℃)
Maximum shaft load Radial load: 50N, axial load: 20N
Shock resistance 50G/11ms
Anti-vibration 10G (10~2000Hz)
Rotational inertia 4X10-8kgm2
Operating temperature -30~+85℃ (-22~+185℉)
Storage temperature -35~+95℃ (-31~+203℉)
Protection Level IP51
Electrical characteristics Output circuit Open-collector output Voltage output Push-pull output Line driver output
Supply voltage Vcc DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC5V±0.2 DC 5~24V
Current consumption ≤60mA ≤60mA ≤60mA ≤100mA
Output high level ≥3.5V ≥Vcc-2.5V - - ≥2.5V ≥Vcc-2.5V
Output low level ≤0.5V ≤0.5V - - ≤0.5V ≤1.0V
Rise time Tr ≤500ns ≤1500ns - - ≤200ns ≤500ns
Fall time Tf ≤100ns ≤300ns - - ≤200ns ≤200ns
Maximum frequency response 0~100kHz 0~100kHz 0~100kHz 0~100kHz 0~100kHz 0~100kHz

Model selection:

Shaft type Diameter of shell Diameter of shaft Connection type Cable length * Resolution Production identifier Z signal Z signal wavelength Output mode * Voltage *
S: Shaft 58: 58mm 10: 10mm G: Cable edge output 1: 1m
2: 2m
3: 3m
4: 4m
3000: 3000 ppr B M: Output 1 if receiving Z signal Default: 1T C: Open-collector NPN
CP: Open-collector PNP
T: Voltage ouput NPN+R
P: Push-pull output NPN+PNP
L: Line driver 26LS31
K: Line driver 7272
5: +5VDC
830: +8~30VDC

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Tips: Zero search of incremental encoder without Z signal

On the market there are many incremental rotary encoders that don't have a Z signal. If the encoder is mounted on the motor shaft, the Z signal no need to use. If mounting on the loading shaft, Z signal need to add a limit switch to achieve. After receiving the signal of the limit switch, keep decelertion operation, until the signal of the limit switch disappears stop operation, and set as zero point. If the limit switch accuracy is not enough, use the photoelectric switch or hall sensor.
