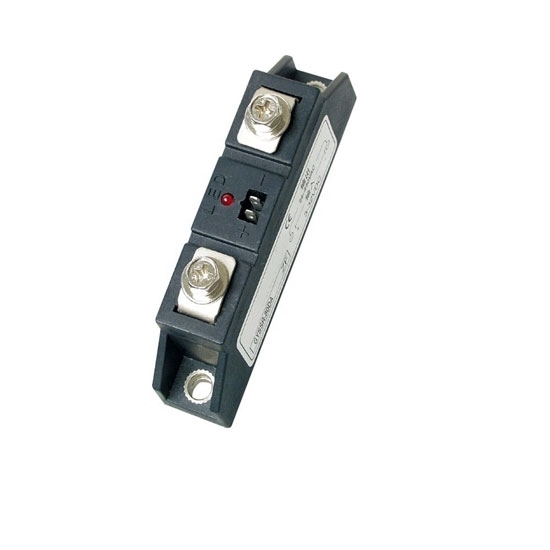

    Industrial Solid State Relay 60A, 3-32V DC to AC SSR

    $69.61
    Low price 60 Amp industrial solid state relay, single phase SSR-60DA, can control high current 24-440V AC with lowe voltage 3-32V DC, zero-crossing switch type, fast switching, compact design, high reliability and long lifespan.
    SKU: ATO-GYSSR-60DA
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Industrial solid state relay SSR-60DA, features 60 Amp load current with 3-32VDC control 24-440V AC. In industrial applications from DC to AC, solid state relay can realize multiple functions such as circuit isolation, control, and protection. It is a safe and reliable switching solution in the automation control fields such as petrochemical equipment, pharmaceutical machinery, food machinery, packaging machinery, plastic machinery, CNC machine tool and entertainment facilities, etc.

    Specification

    Model ATO-GYSSR60DA(H1)
    Control Voltage 3-32V DC
    Control Current DC 7-32mA
    Load Current 60A
    Load Voltage 24-440V AC
    On-State Voltage Drop ≤1.5V
    Off-State Leakage Current ≤4mA
    Off-State Time ≤10mS
    Dielectric Strength 2500V AC
    Insulation Resistance 1000MΩ/ 500V DC
    Ambient Temperature -20 ~ +70℃
    Mounting Method Bolt Fixing
    Working Indicator LED
    Weight 120g
    Dimension (L*W*H) 92*20*37.5mm
    Heat Sink (Optional) More info., please click here.

    Dimension (Unit: mm)

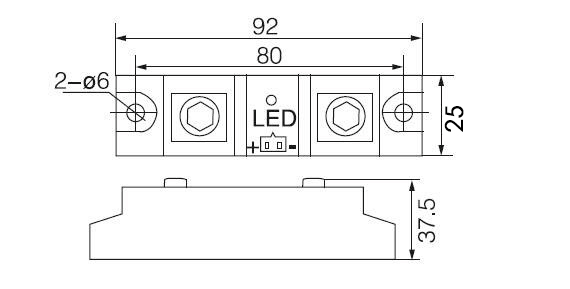

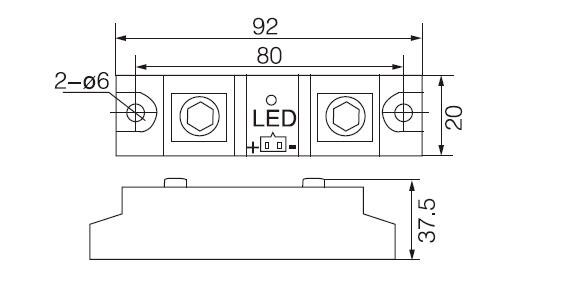

     60A Industrial Solid State Relay Dimension

    Wiring Diagram

    industrial Solid State Relay SSR-60DA Wiring Diagram

    Operation Note

    1. For the resistive load, it can not exceed 60% of the rated current of the SSR.
    2. For the inductive or capacitive load, it can not exceed 40% of the rated current of the SSR.
    3. For the electric motor, it can not exceed 20% of the rated current of the SSR.
    4. Proper radiator or heat sink should be equipped for the industrial solid state relay. If the load cooling condition is not good, it is necessary to leave some margin. Avoid the load short circuit because over current and short circuit are the main causes for permanent damage of the internal SCR of the SSR.
    5. Over current protection: Using fast fuse and air switch is one of the methods for over current protection; fuse is also available for small capacity.
    6. Over voltage protection: It can adopt the parallel voltage-dependent resistor (MOV). The MOV area decides the absorption power, and its thickness decides the protective voltage value. Generally, 471/10D voltage-dependent resistor is suitable for 220V series SSR, 681/10D voltage-dependent resistor for 380V series SSR, and 821/10D voltage-dependent resistor for 480V series SSR.

    Tips: Usage of Solid State Relay – Resistance Load

    1. Resistance load
    The simplest application for solid state relay is invariable resistance load. As long as the rated steady-state current and break voltage of the circuit are within the allowable range of the SSR, the relay could work normally.

    2. Lamp
    The incandescent light bulb, which is basically classified to the resistive load, also has some special characteristic. As the resistance of the cold tungsten filament is about one tenth of the hot tungsten filament, it has a very high starting current.
