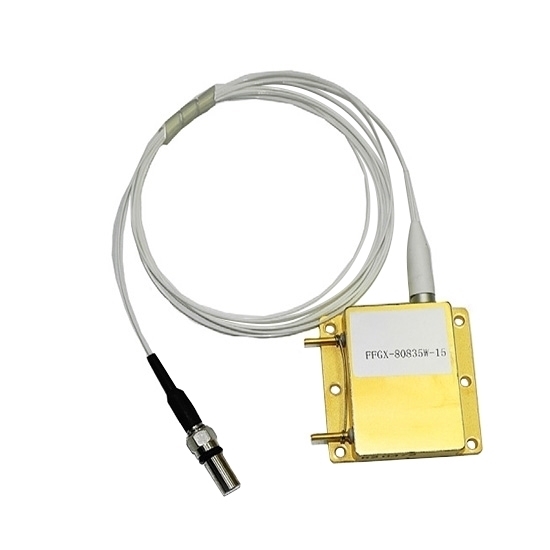

    Infrared Fiber Coupled Laser Module, 808nm 35W

    $1,419.23
    High-power infrared fiber coupled laser module for sale online, with a working wavelength of 808nm and a power output of 35W. Its shell operates at a temperature of 25℃ and has a storage temperature range of -20℃ to 70℃. The fiber coupled laser module is suitable for various applications that require infrared laser performance.
    SKU: ATO-LM-FFGX808
    30-day Returns
    Free Shipping
    Delivery date: 20-30 days

    The 808nm, 35W high-power infrared fiber coupled laser module has a working temperature of 25℃ and a storage temperature range of -20℃ to 70℃. It is widely used in various fields such as laser criminal investigation and evidence collection, laser sights, laser infrared security, laser radar positioning, and laser engraving and cutting, providing reliable infrared lasers.

    Specification

    • Model: FFGX-80835W
    • Output power: 35W
    • Center wavelength: 805~808nm
    • Spectral width (FWHM): 3nm
    • Fiber core/cladding diameter: 105/125um
    • Numerical aperture: 0.22
    • Temperature drift coefficient: 0.28nm/℃
    • Electro-optical conversion efficiency: 45%
    • Threshold current: 1.3A
    • Operating current: 9.5A
    • Operating voltage: 7.5V
    • Fiber length: 1m
    • Bending radius: 40mm
    • Protection tube type: 0.9mm protection tube
    • Connector: SMA-905
    • Anti-reflection band: 1030~1200nm
    • Anti-reflection isolation: 30dB
    • ESD: 500V
    • Operating temperature (tube shell temperature): 25℃
    • Storage temperature: -20~70℃
    • Relative humidity: 15-85%RH
    • Packaging form: W2
    • Welding temperature: 260℃
    • Welding time: 10s

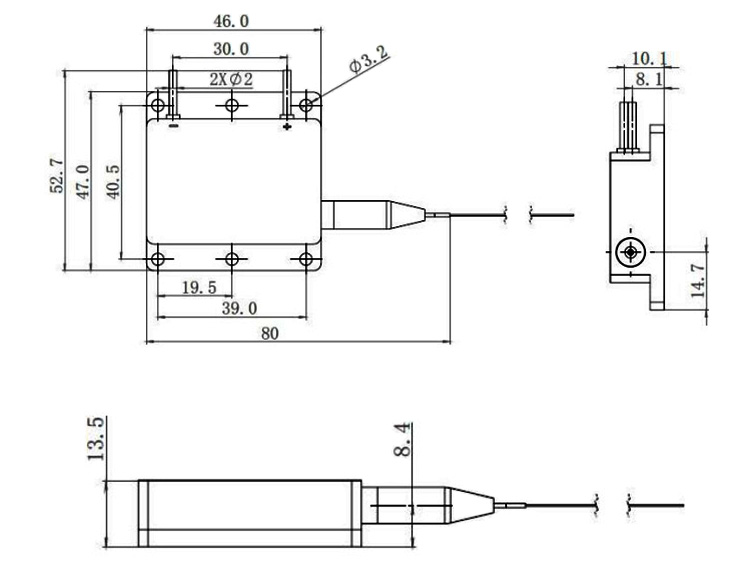

    Dimension (mm)

    Infrared fiber coupled laser module dimension

    Applications

    Infrared fiber coupled laser module application

    Tips: Instructions for using the infrared fiber coupled laser module

    1. When the laser is working, avoid exposing the eyes and skin to the laser.
    2. Anti-static measures must be taken during transportation, storage, and use, and short circuits must be connected between pins for protection during transportation and storage.
    3. Use welding to connect the leads, with the solder joint as close as possible to the root of the pin, at a temperature below 260℃, and a welding time of less than 10 seconds.
    4. It should be used at rated working current and rated working voltage.
    5. Use a constant current power supply to avoid surges during operation.
    6. The laser needs to ensure good heat dissipation during operation, with a working tube shell temperature of 15℃~40℃.
    7. Fiber optic cables must not be bent at large angles, with a bending diameter greater than 400 times the diameter of the fiber cladding.
