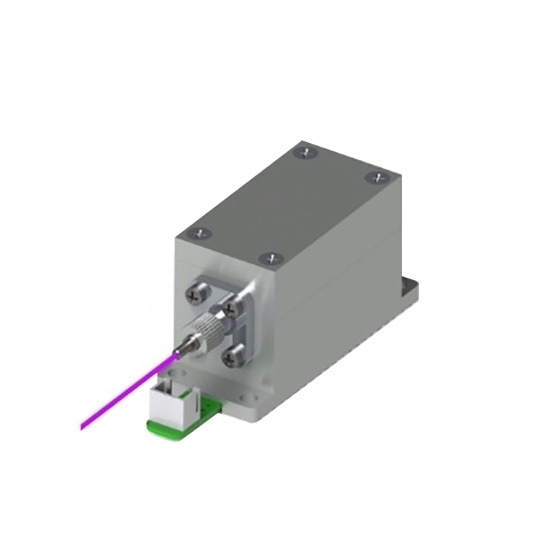

    Blue Violet Fiber Coupled Laser Module, 405nm 720mW

    $498.73
    Economic price blue violet fiber coupled laser module for sale online, with a wavelength of 405nm and an output power of 720mW. The fiber laser module can be used for applications such as 3D printing and laser cutting. By coupling optical fibers, high-quality light beams are provided.
    SKU: ATO-LM-FFGX405
    30-day Returns
    Free Shipping
    Delivery date: 20-30 days

    Blue violet fiber coupled laser module is widely used in fields such as laser criminal investigation, 3D printing, laser cutting, laser medicine, laser display, laser ranging, and communication. The fiber coupled laser module operates within a temperature range of 0℃ to 50℃ and can be stored at temperatures from -40℃ to 85℃, ensuring stable performance under various environmental conditions to meet diverse application needs.

    Specification

    • Model: FFGX-405720MW
    • Laser type: UVLD laser
    • Center wavelength: 405nm
    • Optical power: Po=720mW @405nm
    • Power supply: 440mA 5.0V @405nm
    • Power stability:<±2% (8h) @Constant temp
    • Fiber optic: SU105 NA=0.22 FC connector
    • Input port: XH2.54 2P
    • Working mode: continuous output/pulse output
    • Light source lifespan:>10000h
    • Recommended cooling method: Water cooling/20±5℃
    • Operating temperature: 0℃~50℃
    • Storage temperature: -40℃~85℃
    • Size: 69.4mm×22mm×29mm
    • Net weight: 68g

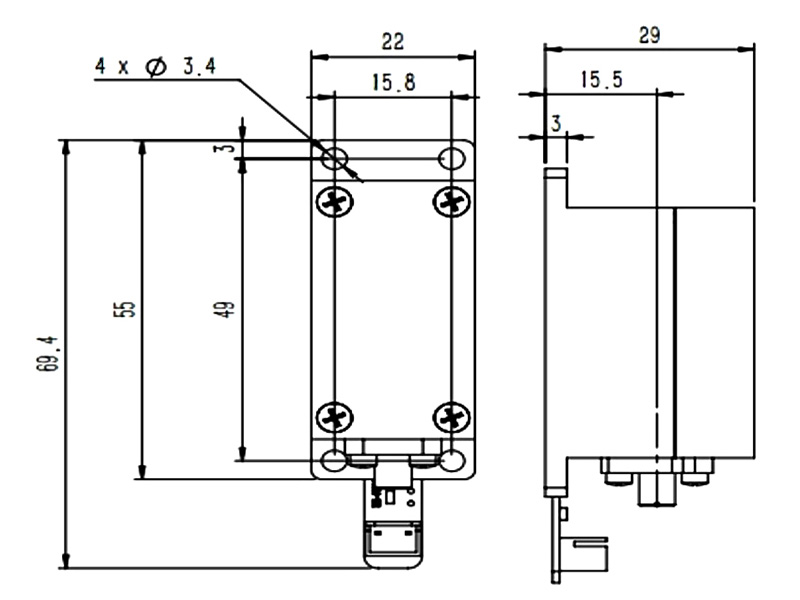

    Dimension (mm)

    Blue violet fiber coupled laser module dimension

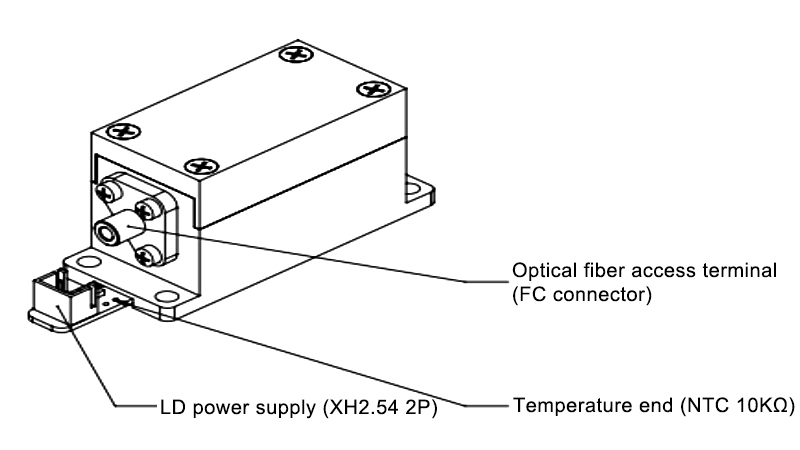

    Detail

    Blue violet fiber coupled laser module detail

    Tips: Precautions for using blue violet fiber coupled laser module

    1. Do not look directly at the laser beam.
    2. The laser module must be operated according to the instructions provided in the manual. Do not disassemble the product without authorization.
    3. Please do not turn on the power or light source of the blue violet fiber coupled laser module until installation is complete.
    4. The fiber coupled laser module adopts a sealed design. Please ensure that the wiring is intact and undamaged before installation.
    5. Before powering on, check that the plug is securely plugged in and that the power cord is fully connected.
    6. It is strictly prohibited to light up and use fiber coupled laser module in an uncooled environment for a long time.
