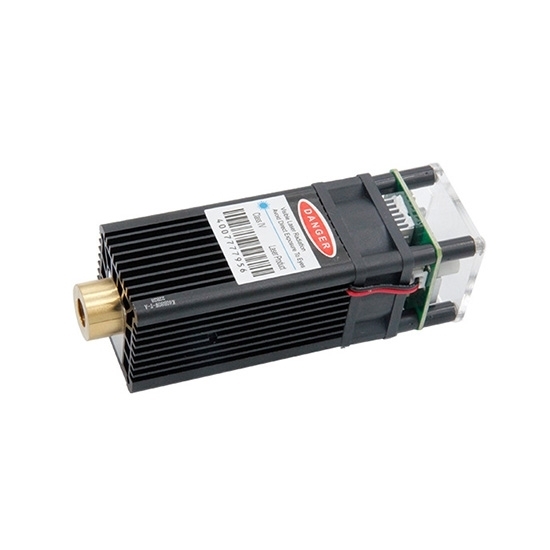

Blue Laser Engraver Module, 450nm 10W, 12V/PWM

$258.75
Blue laser engraver module has a wavelength of 450nm, a power of up to 10W, an operating voltage of 12V and is equipped with PWM modulation technology. Its aluminum alloy material enhances durability, and the dot-shaped spot mode makes the engraving detailed and clear, suitable for a variety of materials, such as wood, plastic, etc.
SKU: ATO-LM-K40B80W
30-day Returns
Free Shipping
Delivery date: 6-12 days

The PWM laser module is suitable for high-precision pattern engraving. Whether on wood, plastic or other applicable materials, the module can provide consistent and high-quality engraving results.

Specification

Model ATO-K40B80W-T-A
Laser wavelength 445nm±5nm
Laser power 10W
Electric power 36W
Working voltage 12V
Working current 2.8-3A
Working mode Pulsework
Structural dimensions 40*40*70mm
Circuit board PWM modulation
Light spot size 40mm±0.5mm
Light spot mode dot-shaped
Terminal head 2P2.54 terminal reverse line
Working time 10000h
Product material aluminum
Working temperature 0℃ to 70℃
Storage temperature -40℃ to 85℃
External dimensions 40*40*115.7mm
Product net weight 233g


Dimensions (mm)

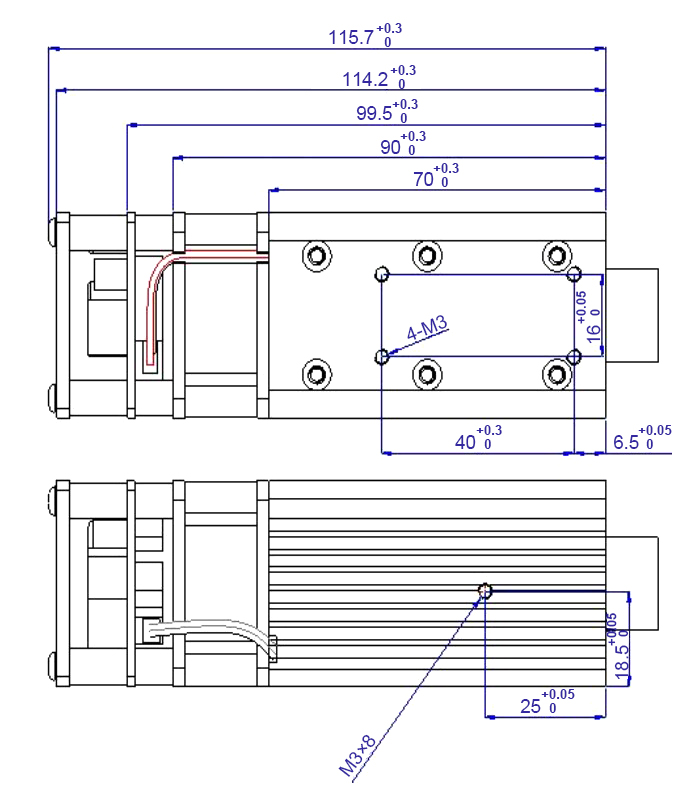

Blue laser engraver module dimensions

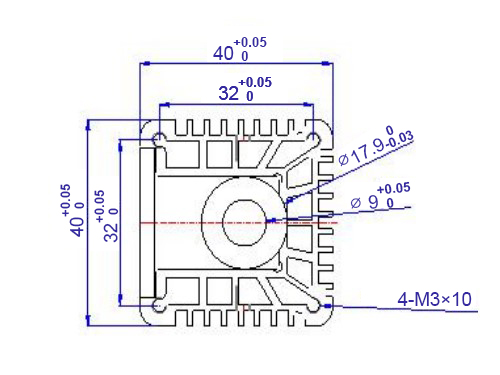

Blue laser engraver module dimension

Tips: Some cautions for using blue laser engraver module

  1. The laser emitted by the laser module may cause damage to the human eye. Do not look directly at its end face during operation, and wear appropriate protective glasses to protect the laser.
  2. The device requires a suitable driving power supply. When the laser module is connected to the power supply, the power supply output voltage should be zero, and the current should be increased or decreased slowly to prevent the current shock from damaging the device.
  3. The blue laser engraving module requires a suitable laser driver (PCB). When the laser module is connected to the power supply, please set the output voltage to zero, and the current adjustment should be increased or decreased slowly to avoid damaging the device.
  4. The laser module should be stored or used in a dry environment, and the dustproof level should reach the million level to prevent dust from falling into the lens and affecting the light spot.
  5. Working at high temperature will increase the threshold current, reduce the conversion efficiency, and accelerate the aging of the device.
  6. When the output power is higher than its specific operating parameters, it will accelerate the aging of the device. The temperature of the laser diode can reach 70 degrees during continuous operation. Please do a good job of heat dissipation.
  7. This laser module is an electrostatic sensitive device. Please make sure that you are grounded or wear an anti-static wrist strap before use.
