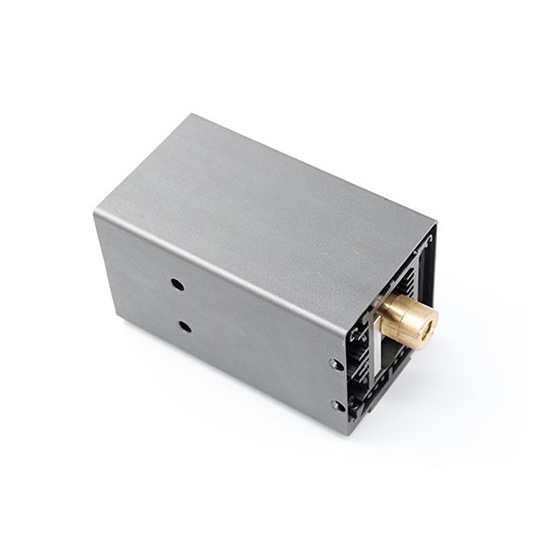

    High Power Laser Module, 450nm 20W, 24V/PWM

    $529.85
    Factory price high power laser module for sale, featuring a 450nm wavelength and delivering 20 watts of power. This laser module operates on a 24V power supply and supports PWM control for versatile operation. With a robust working temperature range of 0℃ to 70℃, it ensures reliable performance in various environmental conditions. Designed to process a wide range of materials, the dot laser module excels in cutting and engraving.
    SKU: ATO-LM-K66B200W
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The blue laser module adopts a point laser beam mode, which is suitable for industrial manufacturing, personalized customization and creative projects to achieve efficient and precise processing effects.

    Features

    • High power laser module provides 20W ultra-high power to ensure efficient cutting and engraving.
    • The laser module design has a 10mm ultra long depth of field, allowing it to maintain a stable focus on thicker materials and achieve uniform processing.
    • Blue laser module achieves small focal points, enabling high-precision carving and cutting, and more precise detail processing.
    • The dot laser module is suitable for carving non-reflective metal stainless steel and can cut plywood with a thickness of up to 10mm.
    • It uses a uniform LD spot to ensure high brightness, efficiency, and clarity in the processing effect.

    Specification

    Model ATO-K66B200W-T
    Laser wavelength 450nm
    Laser power 20W
    Electric power 70W
    Working voltage 24V
    Working current 2.9-3.2A
    Working mode Pulse work
    Circuit board PWM modulation board
    Focal length 40±1mm
    Focus size <0.5mm
    Laser beam mode dot-shaped
    Terminal head 2P2.54 terminal reverse line
    Working time 10000h
    Product material aluminum
    Working temperature 0℃~70℃
    Storage temperature -40℃~85℃
    Dimensions 66*63*109mm

    Note: Conventional products do not come with a lens hood. Please contact us if you need one.

    Dimensions (mm)

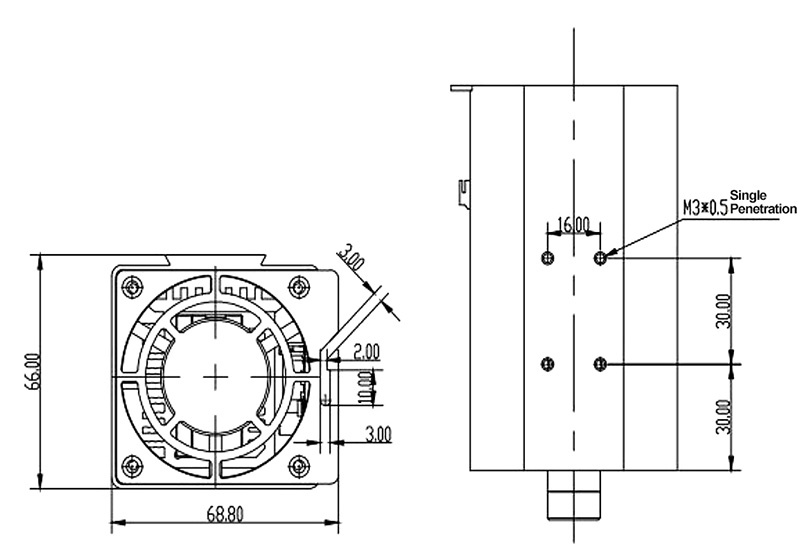

    High power laser module up dimension

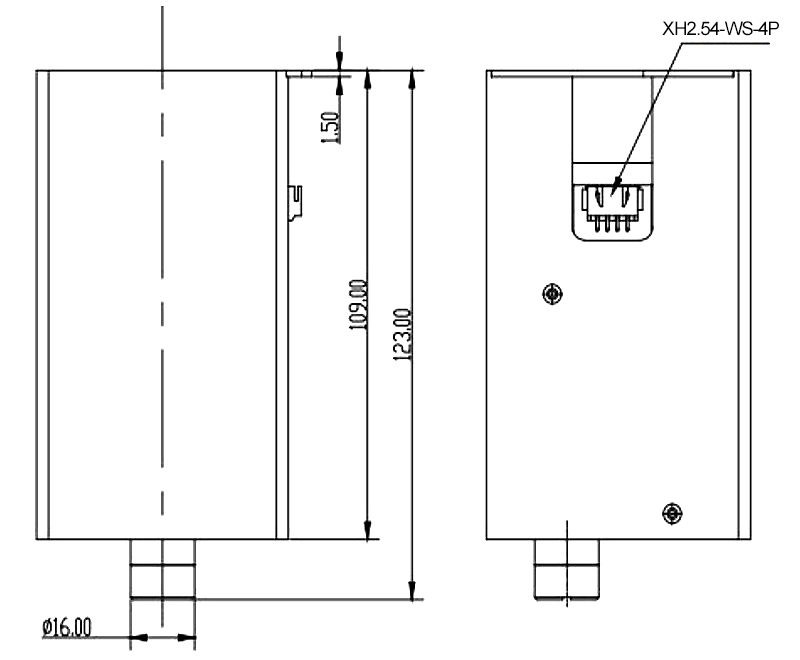

    High power laser module side dimension

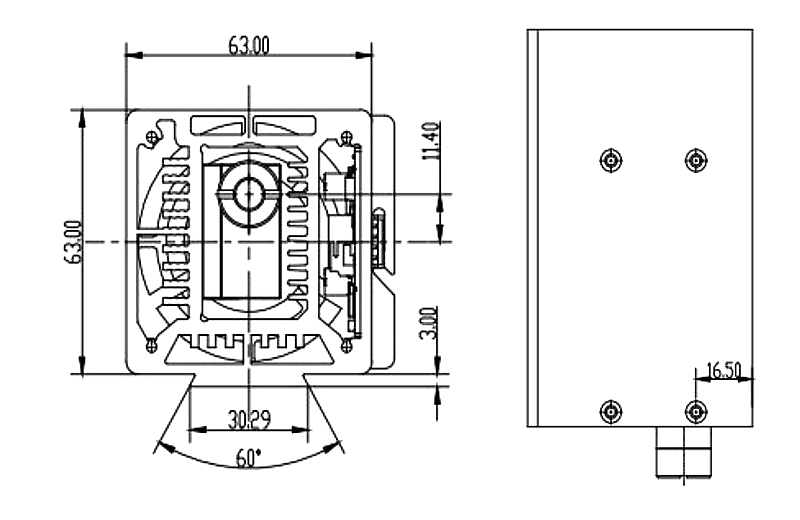

    High power laser module down dimension

    Interface

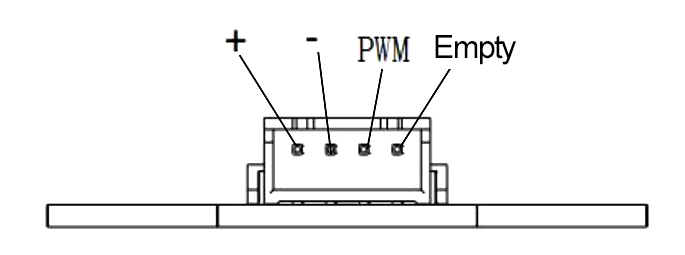

    High power laser module interface

    Tips:What is a high-power laser module?

    High power laser module refers to a high power laser module, which is usually used in applications that require strong laser output. Such modules contain lasers and related electronic and optical components to generate and control high power lasers. They are widely used in industrial processing, laser cutting, welding, scientific research, and military fields. High-power lasers have higher safety risks, so strict safety regulations and operating procedures need to be followed when using them.
