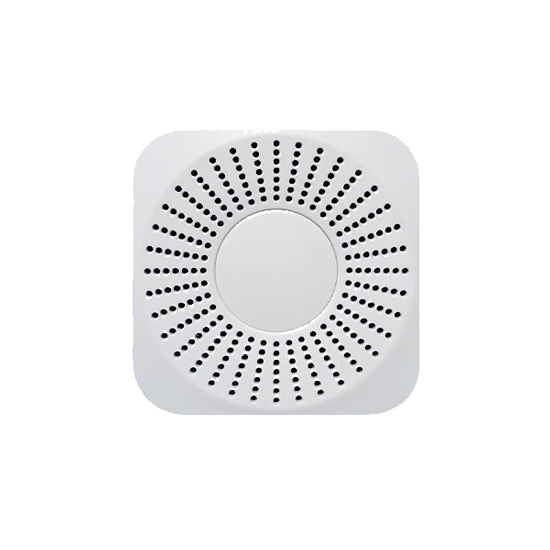

IoT Air Quality Sensor, Wifi/Bluetooth/RS485/4-20mA Output

ATO IoT air quality sensor adopts a highly integrated sensor design, which can detect common gases such as oxygen, carbon dioxide, and formaldehyde, and also supports the detection of various special gases like hydrogen sulfide, nitrogen dioxide, and oxygen. Smart air quality sensor supports multiple output methods including RS485, 4G, Bluetooth, WIFI, NB and 4-20mA, has 24-hour continuous and stable monitoring capability, with an operating voltage of DC 10V-30V (standard 24V), and uses an ABS flame-retardant shell. It is suitable for multiple scenarios such as smart agriculture, industrial production, and smart homes, providing efficient and accurate IoT solutions for air quality monitoring in various fields.

Specification

Faetures

• Comprehensive gas detection: In addition to common gases, it can detect various special gases such as hydrogen sulfide, nitrogen dioxide, and oxygen, meeting the gas monitoring needs of multiple scenarios.
• Diverse output methods: Supports multiple output methods such as RS485, 4G, Bluetooth, and WIFI, which can adapt to different platforms and installation scenarios, with extremely strong compatibility and flexibility.
• Stable and reliable monitoring: 24-hour continuous online monitoring, stable output signals, and a detection frequency updated once per second, ensuring real-time and accurate data.
• Excellent design and materials: The convection hole design makes the measurement more accurate, the ABS flame-retardant and high-temperature-resistant shell ensures the safety of the equipment, and the integrated sensor design makes the equipment compact and small, easy to install, with options for ceiling or wall mounting.
• Wide scene coverage: Suitable for smart agriculture, industrial production, smart home and other fields, providing efficient IoT solutions for air quality monitoring in different scenarios.

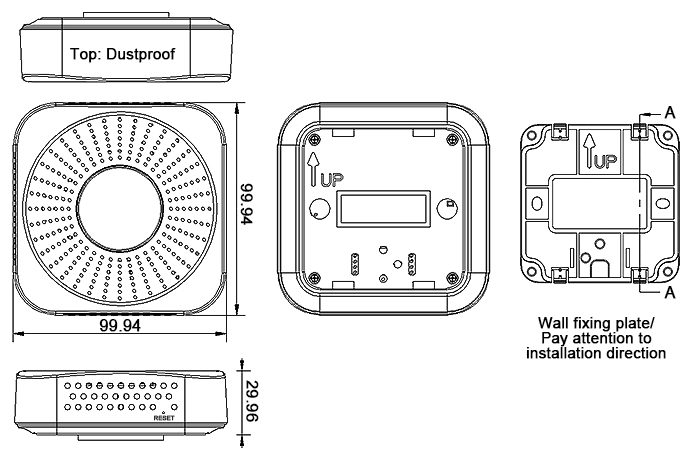

Dimension(Unit: mm)

Application

Tips: How to Improve Accuracy of IoT Air Quality Sensor?

To make IoT air quality sensor more accurate, the core lies in controlling four key aspects: selection, installation, usage and maintenance, and data calibration. The specific methods are as follows:

1. Choose the right compatible sensor: Match the air sensor type according to the type of gas to be detected, and give priority to products with clear stability parameters, such as models clearly marked with "24-hour signal" to reduce data fluctuations.
2. Eliminate environmental interference: The installation location should avoid areas in direct contact with oil fumes, water vapor, and dust. Ceiling-mounted installations should be kept away from pipes and cables inside the ceiling. For wall-mounted installations, the recommended height is 1.5-2 meters from the ground.
3. Maintain sensor performance: Before first use, smart air quality sensor needs to be powered on and preheated for 2 minutes. Wait for the data to stabilize before putting it into formal monitoring to avoid initial data deviation. Clean the sensor surface regularly, wipe the shell with a dry soft cloth, and clean the dust in the convection holes.
4. Data calibration and correction: Use the data filtering function of the Internet of Things platform to filter out instantaneous fluctuating data, and regularly compare data with standard monitoring equipment in the same environment.
