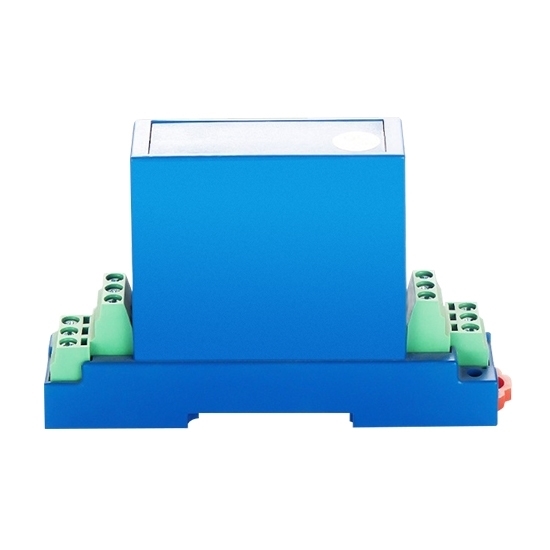

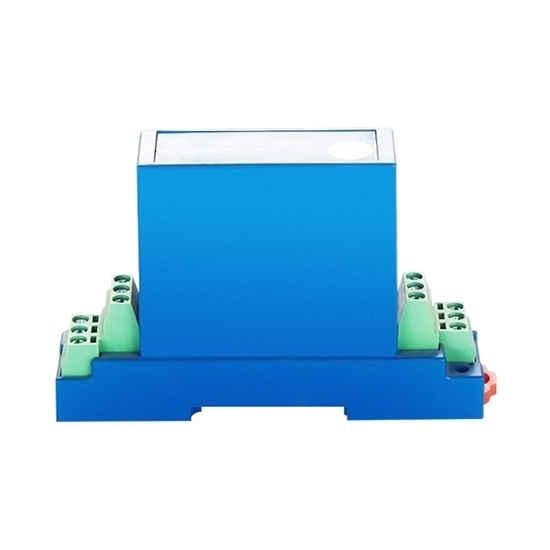

Isolated AC Voltage Transducer, AC 0~1000V to 0-5V/0-10V Output

This isolated ac voltage transducer is engineered for precise measurement and conversion of alternating current (AC) voltage. It employs a state-of-the-art electromagnetic isolation principle, integrating measurement and control into one robust unit. This design ensures not only high accuracy in signal reproduction but also complete electrical isolation between the input high-voltage circuit and the output low-voltage control circuit, enhancing system safety and reliability. The device is characterized by its excellent performance-to-price ratio, making it a cost-effective solution for a wide range of industrial applications.

Specification

Feature

• High-Fidelity Signal Reproduction: The ac voltage transducer excels at capturing and outputting a true representation of the input AC waveform. This capability makes it an excellent tool for real-time waveform analysis using oscilloscopes, aiding in detailed system diagnostics and fault detection.
• Superior Isolation and Safety: With significant isolation withstand voltage, the voltage transmitter provides robust protection, preventing high-voltage hazards from reaching the low-voltage side and ensuring the safety of subsequent control equipment and personnel.
• Compact and Versatile Installation: The ac voltage transducer features a compact and lightweight design. It supports multiple installation options, including standard DIN rail mounting and flat surface screw fixation, allowing for easy and flexible integration into various electrical cabinets and control panels.
• Wide Frequency Response: Isolated voltage transducer offers a broad operational bandwidth, making it particularly suitable for power frequency (50Hz) applications while also capable of handling a range of frequencies, which is beneficial for analyzing harmonic distortions or variable frequency drive outputs.
• Excellent Performance Metrics: The voltage transmitter boasts fast response time, low static power consumption, and reliable operation across a wide temperature range, ensuring stable and accurate performance in demanding industrial environments.

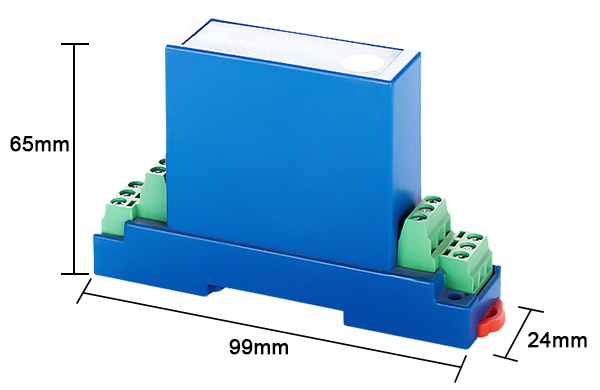

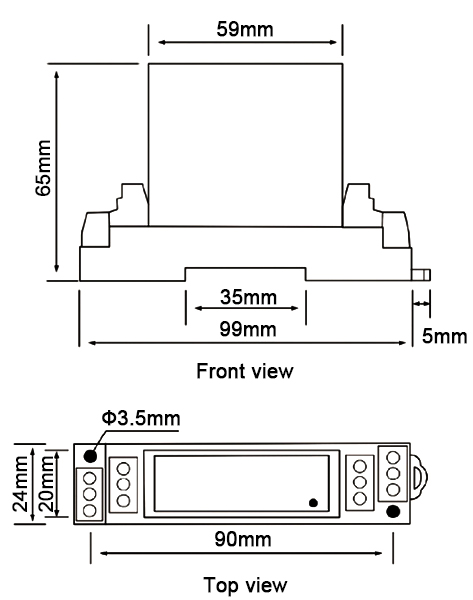

Dimension

Application

4 Tips for Isolated AC Voltage Transducer

1. Output Selection: Confirm the required output signal range (0-5V or 0-10V) based on the input specifications of your receiving device before installation and wiring.
2. Power Supply Consistency: Ensure the auxiliary power supply matches the high voltage transducer's requirement (e.g., DC24V). An unstable or incorrect power source can affect measurement accuracy or damage the unit.
3. Calibration Check: For critical measurement applications, consider periodic verification of the isolated voltage transducer's output against a standard reference to ensure long-term measurement accuracy.
4. Environmental Consideration: Although designed for industrial environments, avoid installing the high voltage transducer in locations with excessive dust, moisture, or corrosive gases to maximize its service life.
