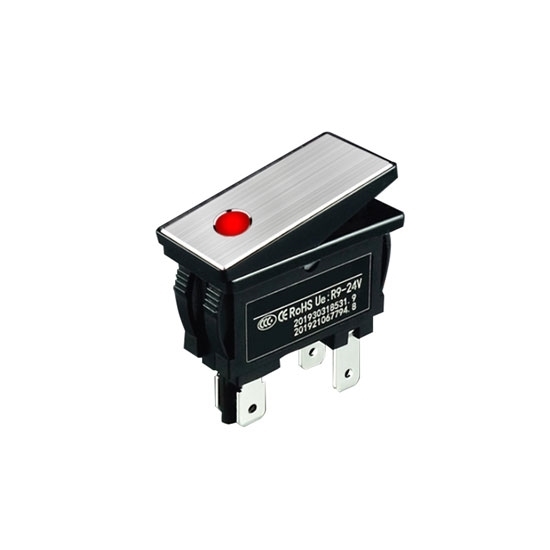

Lighted Rocker Switch, 12V

5 out of 5 based on 1 reviews | Write a review
$13.86
Low cost 12V lighted rocker switch, hole size 28 x 10.5mm, led light red or green, 4 pins, the rocker switch has a long service life, high temperature resistance, and high current impact resistance.
*
*
SKU: ATO-RS-KCD3
This product has a minimum quantity of 10

lighted rocker switch 12 volt, LED light color red/green, mechanical life 50 thousand times, action force 8N, LED lamp life 40,000 hours, widely used in drinking fountains, treadmills, coffee machines, motorcycles, etc.

Model ATO-RS-KCD3
Rated Current 16A
Rated Voltage 12V/24V
Terminals Number 4 Pin
Luminous Color Red / Green
Rated Current ≤ 20mA
Wiring Pin pin wiring
Contact Resistance ≤50mΩ
Withstand Voltage 3000VAC 1 min
Rated Range 16A 250VAC
Hole Size 28 x 10.5mm
Protection Level IP65
Button Material Aluminum alloy
Insulation Resistance ≥1000mΩ
Mechanical Life 50,000 Cycles
Shell Material PC
Operating Force 8N
Base Material High flame retardant PA66
Environmental Temperature -30℃~80℃
LED Lamp Life 40,000 Hours
Certificate CE
Warranty 12 Months

12V Lighted Rocker Switch Dimension
lighted rocker switch dimension
What is a rocker switch?

The structure of the rocker switch is the same as the toggle switch, except that the handle is replaced with a ship. Rocker switches are often used as power switches for electronic equipment. Their contacts are divided into single-pole single-throw and double-pole double-throw. Some switches also have indicator lights.
