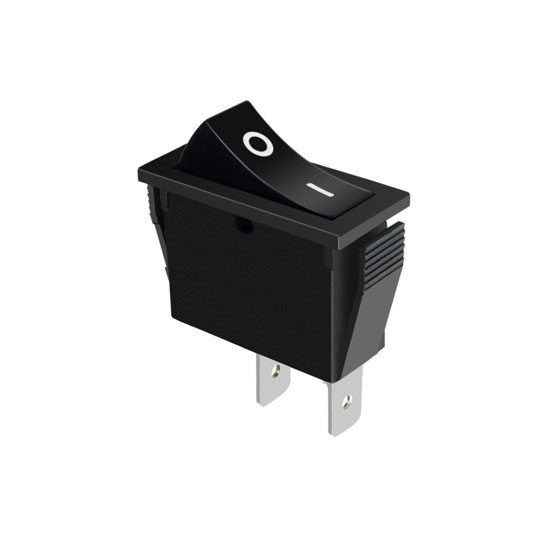

    On Off Rocker Switch, 2 Pin

    5 out of 5 based on 1 reviews | Write a review
    Black on off rocker switch, rating 16A 250V, 2 position, terminals number 2 pins, withstand voltage 1500VAC, it is an ideal choice for water dispensers, treadmills, coffee pots, massage machines.
    SKU: ATO-RS-KCD111
    This product has a minimum quantity of 10

    2 Position rocker switch for sale, on/off, 2 pins, large carrying current, low contact resistance, high voltage resistance, AC 220V, 16A.


    Model ATO-RS-KCD111
    Rated Current 16A
    Rated Voltage 220V
    Terminals Number 2 Pin
    Contact Resistance ≤50mΩ
    Withstand Voltage 1500VAC 1 min
    Rated Range 16A 250VAC
    Relative Humidity <95%
    Protection Level IP40
    Terminal Insertion Force ≥80N
    Insulation Resistance ≥1000mΩ
    Electrical Life Time 10,000 Cycles
    Flame Retardant Requirements UL94-V2
    Operating Force 2N-8N
    Welding Welding temperature ≤320℃, welding time ≤3 seconds
    Illuminated Voltage Use ≤48V, allow fluctuation ±5%, use ≥48V, allow fluctuation ±25%
    Certificate UL, CE, ENEC
    Warranty 12 Months

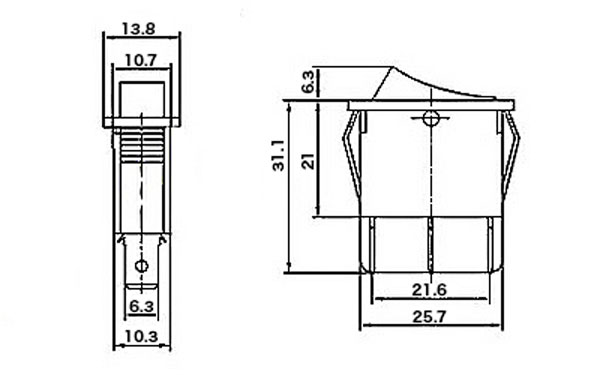

    On Off Rocker Switch Dimension
    On off on rocker switch dimension
    Tips: The difference between rocker switch and air switch

    The boat switch has good arc extinguishing ability. It will trip automatically in the case of a short circuit and a large current; in a high voltage and high current circuit, it is often used as an operating electrical appliance for power failure, power transmission, and load connection and disconnection.

    Air switches generally play the role of blocking and protection devices in small current circuits. They are also called active switches and air circuit breakers.

    The difference in voltage level: Generally, the voltage level used by air switches is below 500V, while circuit breakers can usually be used in various voltage levels above 220V.

    Existing reviews of On Off Rocker Switch, 2 Pin
    Replaced a faulty switch
    Purchased rocker switches to replace old rocker switches and add switch circuits to the  caravan. Now have a few installed for a few months and they work great. They are installed in the openings in the panel.
