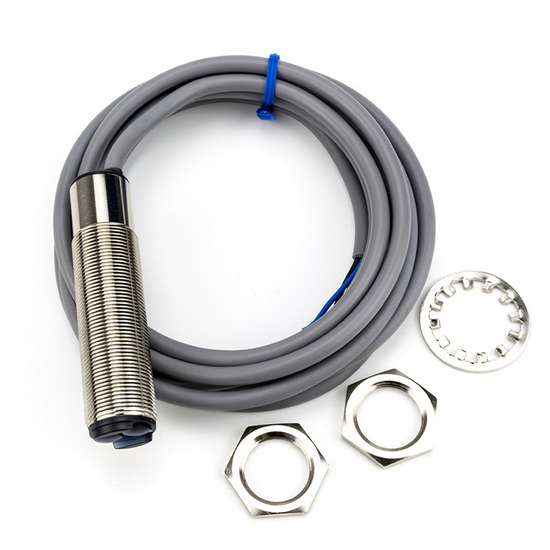

    M18 Photoelectric Switch Sensor, Diffuse Type, 30-1000mm

    5 out of 5 based on 1 reviews | Write a review
    $43.53
    ATO diffuse reflection photoelectric sensor provides stable and accurate short- to mid-range detection with easy sensitivity adjustment. Its nickel-plated copper M18 housing ensures reliable performance in demanding industrial environments. The sensor supports either NPN or PNP output models, allowing users to choose the version that fits their control system.
    *
    SKU: ATO-PHOS-M18DT
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    M18 photoelectric switch sensor offers steady detection even in changing light environments, keeping production lines stable. Its adjustable sensing range supports flexible installation across different machines. Built for continuous use, it delivers long-lasting performance with minimal maintenance.

    Specification

    Model ATO-FTD-18300NO; ATO-FTD-18500NO; ATO-FTD-181MNO; ATO-FTD-18300PO; ATO-FTD-18500PO; ATO-FTD-181MPO
    Dimensions M18*68mm
    Reflection Mode Diffuse Reflection
    Output Mode NPN/PNP NO
    Sensing Distance (Sn: mm) 300mm/500mm/1m Adjustable
    Housing Material Copper with Nickel Plating
    Operating Voltage 10-30VDC
    Ripple =10%
    Sensing Distance Tolerance ±10%Sn
    Switch Hysteresis <15%
    Light Source Infrared Light (880nm)
    Maximum Output Current 200mA
    No-Load Current 30mA
    Voltage Drop 2.5V
    Sensitivity Adjustment Trimmer 1turn
    Response Time <5ms
    Short-Circuit Protection Yes
    Power-On Protection Yes
    Operating Temperature 0-55℃
    Ambient Humidity 35 to 85% RH
    Maximum Glare Intensity ≤10,000LUX
    Protection Rating IP66
    Sensing Object Size 20*20cm White Cardboard
    Connection Method D53*0.15/4*0.15 2m PVC
    Weight 107g
    Warranty 1 year
    DC 3-Wire 10-30V NPN NO ATO-FTD-18300NO; ATO-FTD-18500NO; ATO-FTD-181MNO
    DC 4-Wire 10-30V NPN NO + NC ATO-FTD-18300NS; ATO-FTD-18500NS; ATO-FTD-181MNS
    DC 3-Wire 10-30V PNP NO ATO-FTD-18300PO; ATO-FTD-18500PO; ATO-FTD-181MPO
    DC 4-Wire 10-30V PNP NO + NC ATO-FTD-18300PS; ATO-FTD-18500PS; ATO-FTD-181MPS

    Supplementary Form

    Model Detection Type Output Type Output Mode Sensing Range
    ATO-FTD-18300NO Diffuse Reflection NPN NO 30-300mm
    ATO-FTD-18500NO NO 70-500mm
    ATO-FTD-181MNO NO 200-1000mm
    ATO-FTD-18300PO PNP NO 30-300mm
    ATO-FTD-18500PO NO 70-500mm
    ATO-FTD-181MPO NO 200-1000mm


    Features

    1. Durable Industrial Design: The nickel-plated copper housing with IP66 protection resists impact, oil, and chemicals, ensuring stable operation in harsh environments.
    2. Reliable Circuit Protection: Built-in short-circuit and surge protection reduces electrical faults and helps safeguard connected control equipment.
    3. High-Precision Optical Core: The imported optical module offers strong anti-interference performance and <5 ms response for fast, accurate detection.
    4. Adjustable Detection Range: With a 30–1000 mm sensing range and fine-tuning, it enables a precise setup for various installation requirements.

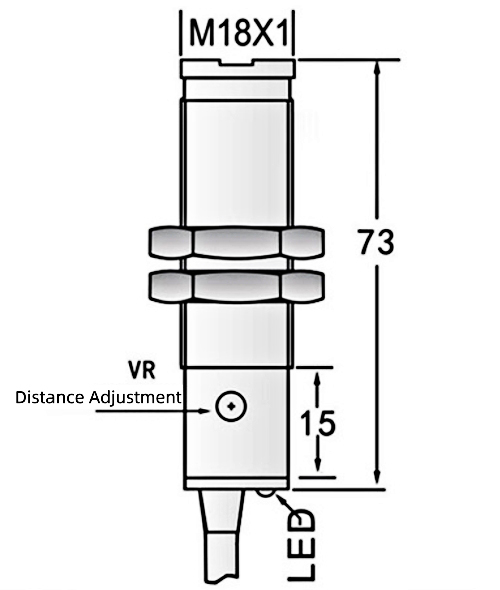

    Dimension

    M18 photoelectric switch sensor diffuse type dimension

    Tips: How to troubleshoot when a fault occurs?

    When troubleshooting the ATO photoelectric sensor, start by confirming a stable power supply and correct wiring. Clean the lens and check alignment to remove optical interference, then use the indicator lights to pinpoint fault conditions. If problems continue, inspect the environment for strong light or electrical noise, and test with another sensor to quickly isolate the cause.
