Magnetic Rotary Angle Sensor, Non-Contact, 0~360°

$71.49
Hall effect magnetic rotary angle sensor is used to detect and measure angular position changes. Favorable price magnetic position angle sensor with max. rotary 360°, 0-5VDC output signal, ideal for automotive, robotics and industrial machinery, offering reliability in determining angular positions for control or feedback purposes in various systems.
SKU: ATO-AS-TAH21
30-day Returns
Free Shipping
Delivery date: 6-12 days

Non-contact magnetic angle sensor operates based on magnetic field variations as the angle changes. Utilizing Hall Effect sensors and magnetoresistive elements, it detects the rotational movement in relation to a magnetic field.

Specification

Model ATO-AS-TAH21
Input Voltage 12-24V DC
Measuring Angle Maximum rotary 360°
Load Capacity >4KΩ
Output Signal 0-5V DC
Resolution 12 bit
Precision 10 digit
Maximum Speed 10000rpm
Protection Level IP65
Working Temperature -40℃~+85℃
Storage Temperature -40℃~+90℃
Material Shell 6061AL, shaft SUS04
Connection Method Straight out cable


Dimensions (Unit: mm)

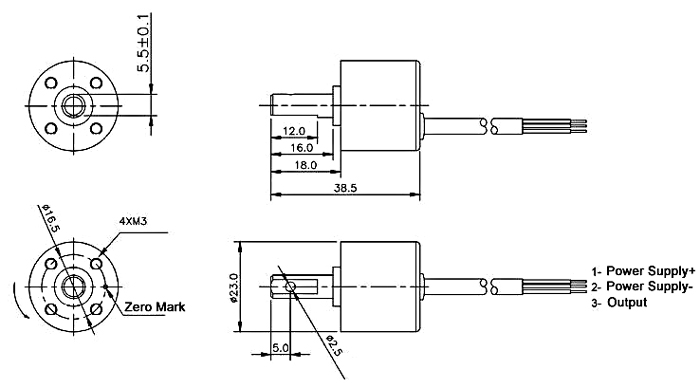

Magnetic rotary angle sensor dimension

Output Characteristics

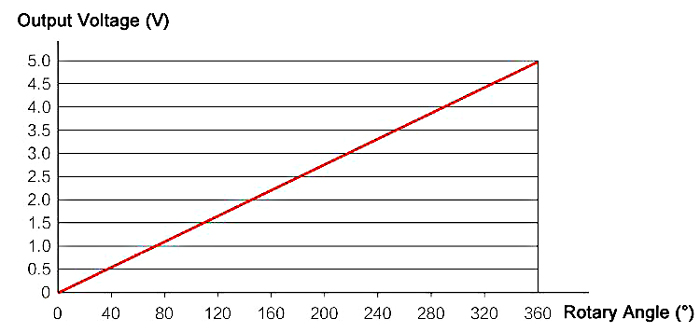

Magnetic rotary angle sensor output characteristics

Applications

Magnetic position angle sensor application

Tips: What factors should be considered when selecting a magnetic angle sensor?

When selecting a magnetic rotary angle sensor, several factors must be considered to ensure optimal performance. First, the sensor's resolution and accuracy are crucial, as they determine the device's ability to provide precise angle measurements. The operating range, or the range of angles the sensor can effectively detect, should match the application's requirements. Consider environmental conditions, such as temperature and humidity, as they can impact sensor performance. Evaluate the sensor's response time and update rate to ensure it meets real-time application needs. Additionally, assess the sensor's output interface compatibility and power consumption to integrate seamlessly into the system. Finally, consider the cost and form factor, balancing performance requirements with budget constraints and physical space limitations. Overall, a thorough evaluation of resolution, range, environmental conditions, response time, interface, power consumption, and cost is essential for selecting the right magnetic angle sensor for a specific application.
