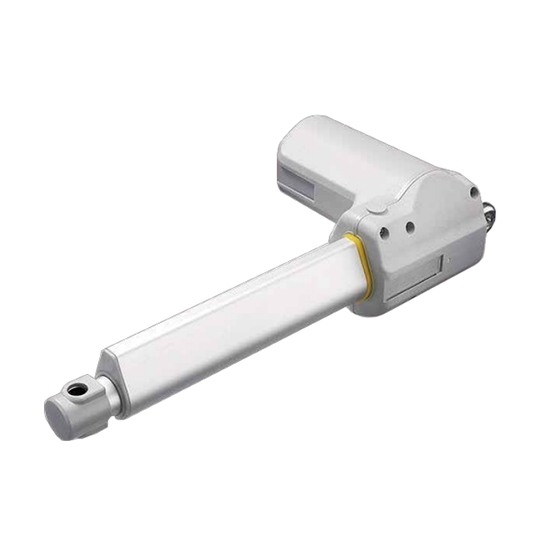

    Mechanical Linear Actuator, 12V/24V, 6000N, 350mm Stroke

    5 out of 5 based on 2 reviews | Write a review
    Small mechanical linear actuator with low cost, max load up to 6000N, 50W power rating, 12V or 24V voltage, 3.2mm/s at full load, 350mm stroke, other stroke and be chosen.
    SKU: ATO-LACTU-6000
    30-day Returns
    Free Shipping
    Delivery date: 10-20 days

    Mechanical Linear Actuator, 12V/24V, 6000N, 350mm Stroke is designed to function as a direct cut system, eliminating the need for a control box, offering a simple and economical alternative. It can be widely used in lift applications like recliners, lifting chairs and movie theater seating.

    Mechanical Linear Actuator Specifications

    Model ATOHTB60
    Voltage 12V DC, 24V DC (Optional)
    Note: The fluctuation of voltage is +/-2V.
    Maximum Load 6000N in push and 4000N in pull
    Self Locking Force 6000N
    Power 50W
    Rated Speed at Full Load 3.2mm/s 6000N
    Output Speed at No Load 4.3mm/s
    Rated Load Current 4.8A
    Stroke 50/ 100/ 150/ 200/ 250/ 300/ 350/ 400/ 450mm (Optional, can be customized)
    Minimum Installation Dimensions Stroke + 175 mm
    IP Rating IP54
    Operational Temperature Range -20°C~+45°C
    Certification ISO, CE, RoHS
    Noise <50db
    Line Length 750mm
    Weight 5 kg
    Built-in clutch (not adjustable)

    Linear Actuator Load and Speed Selection

    Rated Load Capacity Self Locking Force (N) Rated Load Current (A) Output Speed at No load (mm/s) Rated Speed at Full Load (mm/s)
    Pull (N) Push (N)
    6000 4000 6000 4.8 4.3 3.2
    5000 4000 3000 4.8 8.7 6.9
    4000 4000 2500 3.5 13 9.5
    3000 3000 1000 3.5 17.3 13.3
    2000 2000 800 3.5 26 20.1

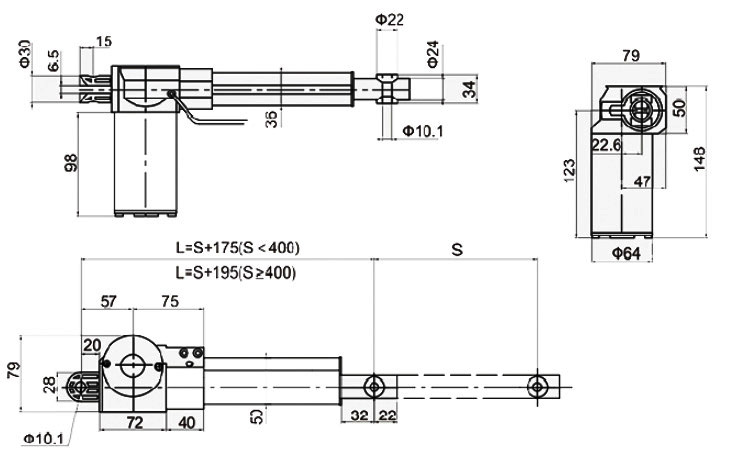

    Linear Actuator Standard Dimension (mm)

    6000N 12v/24v linear actuator size

    S: Stroke, L: Retracted Length=Stroke+175mm

    Stroke and Retracted Length Selection

    Stroke±2 (mm), Mounting Dimension±2 (mm)
    Stroke 50 100 150 200 250 300 350 400 450
    Retracted Length 225 275 325 375 425 475 525 575 625

    Tips: What determines the thrust of the linear actuator?

    Motor is the most important in linear actuator. The linear actuator generally adopts the DC push rod with brush. The thrust is determined by the motor. The speed and power of the motor determine the force to be generated. The thrust of the motor is converted into different thrusts through the reduction ratio. The thrust is transmitted outside through the worm and gear transmission. The worm and gear is generally an ordinary  ball screw, which can increase the efficiency to 80%, indicating that only 20% of the process consumption is missed. Compared with the ordinary leakage of 50%, it is clear that the ball screw has higher efficiency. Of course, the self-locking ability of the ball screw is relatively poor.

    How to increase or decrease the thrust? The most direct way is to replace the motor, and the other is the change in the reduction ratio, thus changing the thrust. It should be noted that the thrust of the linear actuator cannot be changed after delivery.

    Existing reviews of Mechanical Linear Actuator, 12V/24V, 6000N, 350mm Stroke
    This is the linear actuator I am looking for
    This is what I’m looking for:
    130mm-150mm stroke
    >=12mm per second @ 1300N
    12 volts
    >=1500N capacity
    <=430mm retracted length
    IP68 rating
    <=10lb actuator weight
    From: Leah | Date: 23/09/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    We can only provide an IP65 rating. Is that suitable for you?
    If yes, we recommend you SKU: ATO-LACTU-2500, see specs, price, and you can order online by credit card on:
    Lead time: 15 days
    Is ATO's linear actuator a brushless DC motor?
    Are your linear actuators brushless DC motor?
    From: Danwood | Date: 14/05/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, ATO's linear actuators are brushless DC motors.
