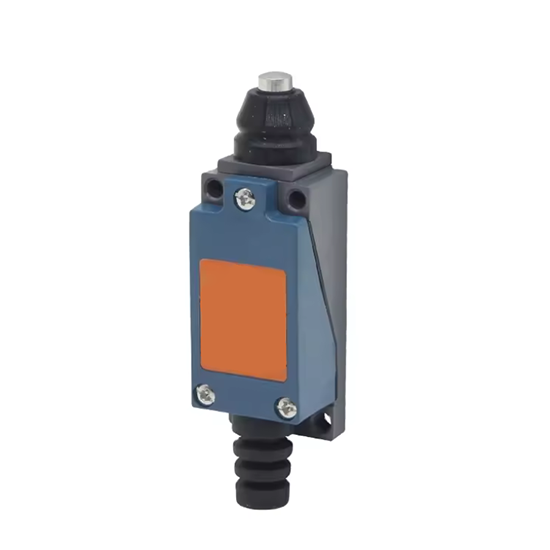

    Micro Travel Limit Switch, Adjustable Rod Lever/Push Button, NO NC

    $56.58
    Factory price micro travel limit switch can be selected from adjustable rod levers or push buttons to meet your specific application needs. The rated current of industrial limit switches is 5A, 250VAC, with a design protection level of IP65, providing normally open (NO) and normally closed (NC) contacts, providing flexibility for circuit design and application.
    *
    SKU: ATO-LS-LZ802
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Industrial micro travel limit switches are highly suitable for use in mechanical, robotic, and automation systems, providing precise control and reliable operation. With a maximum ambient humidity of 95%RH, it maintains stable performance even in high-humidity conditions.

    Features

    • Precision micro limit switch adopts a compact design, saving installation space, improving efficiency and extending service life.
    • The open terminal design makes wiring more convenient.
    • Its protection level reaches IP65, and the dustproof, waterproof and oil-proof structure ensures reliable operation even in harsh environments.
    • The dual-circuit design of the micro limit switch improves the reliability and safety of electrical connections.
    • Its aluminum alloy body and plastic shell provide high mechanical strength.
    • Micro limit switches are widely used in handling machinery, machine tools and automation systems.
    • The micro limit switch has CE and CCC certifications and meets international quality and safety standards.

    Specification

    Model ATO-LZ8
    Rating 5A 250VAC 0.3A 220VDC
    lnitial contact resistance 25mΩ max.
    lnitial insulation resistance 100mΩ min. (at 500VDC)
    Dielectric strength Between non-consecutive terminals 1000Vrms, 50/60Hz for 1 min
    Between non-current carrying metal parts and each terminal 1500Vrms, 50/60Hz for 1 min
    Between ground and each terminal 1500Vrms, 50/60Hz for 1 min
    Shock resistance Mechanical durable 1000m/s2 max.
    Malfunction 300m/s2 max.
    Vibration resistance 10-55Hz, 1.5mm double amplitude
    Operating life Mechanical life 1,000,000 times min.
    Electrical life 200,000 times min.
    Ambient temperature -25℃ to +85℃
    Ambient humidity 95%RH max.
    Operating frequency Mechanical 120 times/min
    Electrical 30 times/min
    Operating speed 5mm-0.5cm/s
    Protection degree IP65
    Weight 80g


    Actuator Operating Characteristic

    Model LZ8107 (Adjustable rod lever) Model LZ8111 (Push plunger)
    O.F. max. 750g (7.35N) O.F. max. 900g (8.82N)
    R.F. min. 100g (0.98N) R.F. min. 150g (1.47N)
    P.T. max. 20° P.T. max. 1.5mm
    O.T. min. 50° O.T. min. 4.0mm
    M.D. max. 10° M.D. max. 1.0mm
    --- --- O.P. 26±0.8mm

    OF: Operating Force
    RF: Release Force
    PT: Pre-Travel
    OT: Over Travel
    MD: Movement Differential
    OP: Operating Position
    FP: Free Position

    Contact Form

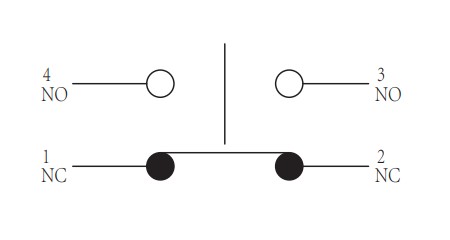

    Micro limit switch contact form

    Actuators

    Micro travel limit switch adjustable rod lever

    LZ8107 (Adjustable rod lever)

    Micro travel limit switch push plunger

    LZ8111 (Push plunger)

    Tips: Wiring steps of micro limit switch

    1. Loosen the cover screws and remove the cover.
    2. Crossing the lead wire through rubber connector on the cover.
    3. Loosen the switch terminal screws and insert terminals on lead wire side into the right switch terminals and fasten the terminal screws.
    4. Installing the rubber connector into the cover and then install the cover. Make sure the rubber sealing strip around the cover on the right position.
    5. Fasten the cover screws.

    Mounting Holes Dimensions (mm)

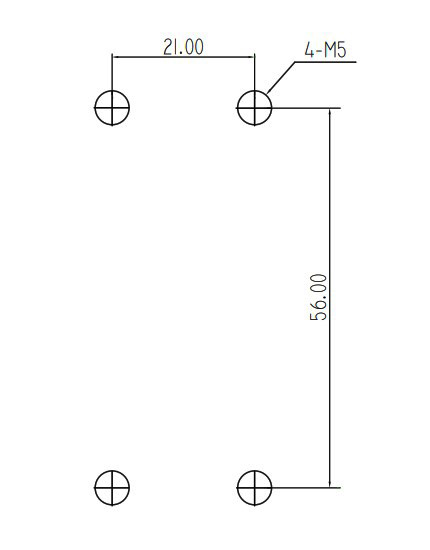

    Micro limit switch mounting hole dimension

    Specific Model Dimensions (mm)

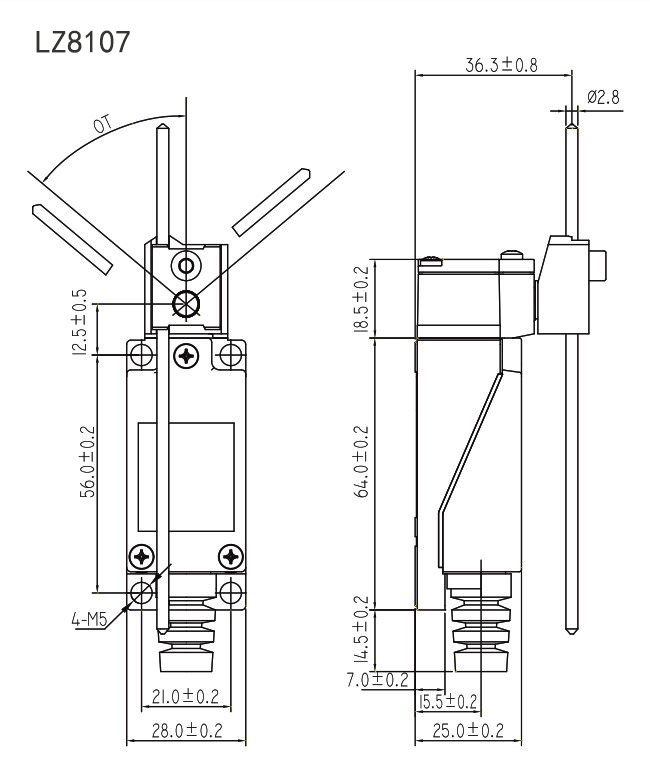

    Micro travel limit switch with adjustable rod lever dimension

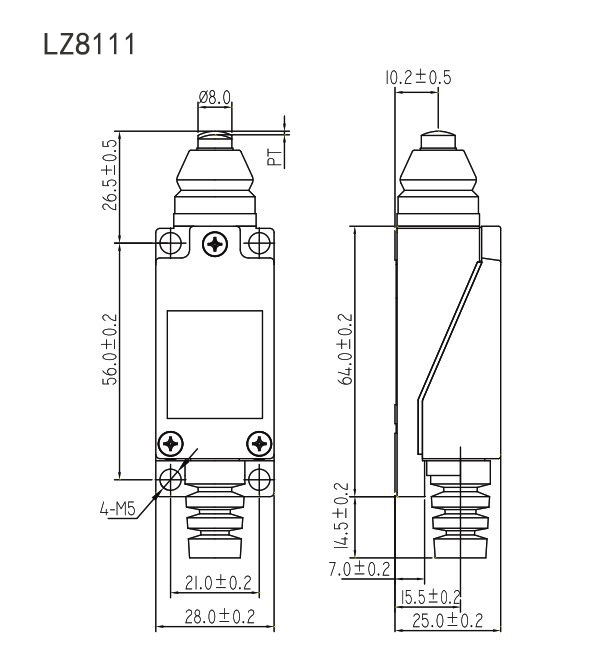

    Micro travel limit switch with push plunger dimension
