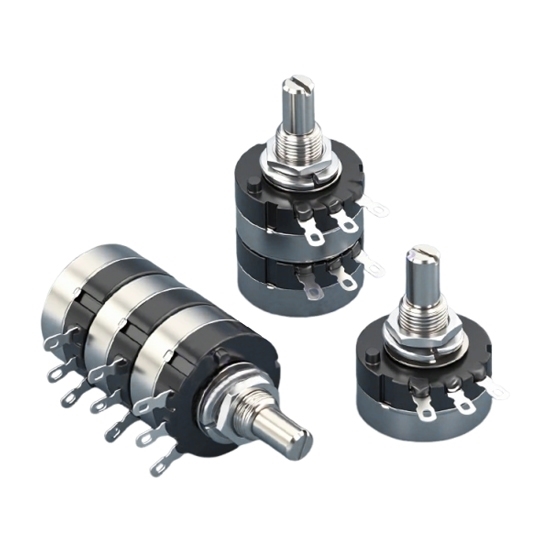

Multi Gang Potentiometer, Dual Gang/Triple Gang/Quad Gang

ATO multi gang potentiometer features silver-plated copper contacts, dust-resistant wiring ports and a durable corrosion-resistant case for enhanced service life. With 0.5W power rating, AC 500V withstand voltage and 100MΩ insulation resistance, it delivers safe and stable operation. Choose this professional potentiometer for your needs.

Specification

Features

1. Multi-Gang Structure: Multi gang potentiometer features dual gang, triple gang and quad gang configurations, allowing multiple resistance channels to operate together for synchronized adjustment, ideal for industrial automation equipment, audio systems and electronic control applications.
2. Smooth and Precise Adjustment Performance: Designed with a 300° ±10° overall rotational angle and stable mechanical operation, this potentiometer provides smooth and accurate adjustment, making it suitable for devices requiring reliable and precise signal adjustment.
3. Silver-Plated Copper: The multi gang potentiometer adopts silver-plated copper contact components to improve electrical conductivity and contact sensitivity and ensure stable operation during frequent adjustments.
4. Reliable Electrical Insulation: With AC 500V maximum operating voltage, 100MΩ minimum insulation resistance and AC 500V withstand voltage, this potentiometer provides excellent electrical protection.
5. Durable Construction with Long Service Life: Built with a corrosion-resistant housing and high-strength mechanical structure, the multi gang potentiometer delivers reliable performance in demanding environments. With more than 15000 rotational cycles, this potentiometer reduces maintenance frequency and supports long-term equipment operation.
6. Low Noise and Stable Operation: Featuring slider noise of ≤47mV MAX. and optimized operating torque from 30gf.cm to 200gf.cm, this potentiometer ensures smooth rotation and stable output.

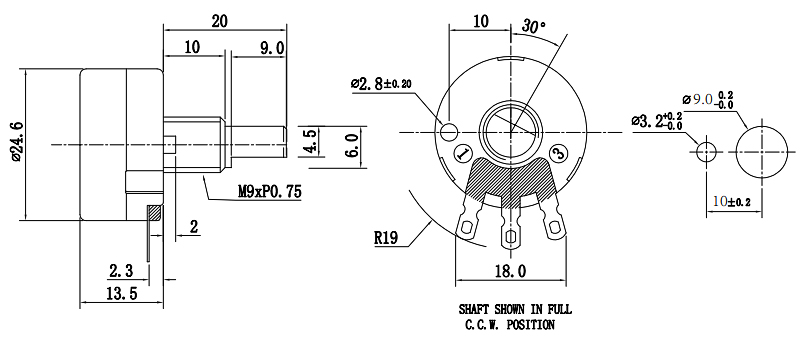

Dimension (unit: mm)

Tips: What is the difference between dual gang, triple gang and quad gang potentiometers?

The difference between dual gang, triple gang and quad gang potentiometers lies in the number of potentiometer sections integrated into a single shaft. A dual gang potentiometer contains two independent potentiometer units for synchronized two-channel adjustment, while triple gang and quad gang potentiometers include three and four sections for controlling more circuits simultaneously. All multi gang potentiometers use mechanically linked shafts to achieve coordinated signal adjustment, making them suitable for audio equipment, industrial control systems and precision electronic devices. When selecting a multi gang Potentiometer, the number of circuits requiring simultaneous control should be considered first. Dual gang models are suitable for basic two-channel applications, while triple gang and quad gang designs are better for systems requiring three or more synchronized adjustments. In addition, installation space, operating environment, required rotational performance and electrical specifications should be evaluated to ensure the potentiometer matches the application requirements.
