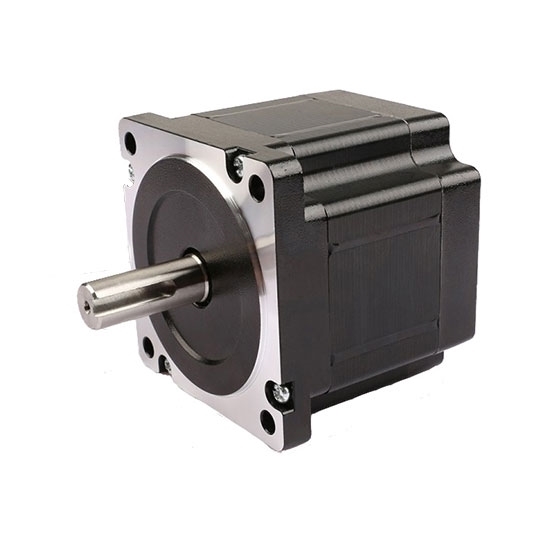

    Nema 34 Bipolar Stepper motor, 6A, 2 phase 4 wires

    5 out of 5 based on 1 reviews | Write a review
    Cheap price Nema 34 stepper motor, 2 phase 4 wires, resolution of 1.8 degree/step, holding torque of 12Nm, body in 160mm, manufacturer direct sale.
    SKU: ATO-STEP-21603406
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The Nema 34 stepper motor is a professional and high precision stepper motor with 1.8 deg. step angle (200 steps/revolution), 2 phase 4 wires, high holding torque of 12Nm, each phase draws current 6A.


    Basics Model ATO2160-6004A
    Matched the Driver Model ATODSP86 (Click it to see more info)
    Step Angle 1.8°
    Length 160mm
    Weight 5.5kg
    Current 6A
    Resistance 0.7Ω
    Holding Torque 12Nm
    Motor Leads 4
    Rotor Inertia 4800g-cm2
    Technical parameters Step Angle Accuracy ±5% (full step, no load)
    Resistance Accuracy ±10%
    Inductance Accuracy ±20%
    Temperature Rise 80℃Max. (rated current, 2 phase on)
    Ambient Temperature -10℃~+50℃
    Insulation Resistance 100MΩ Min. 500VDC
    Dielectric Strength 1Min. 500VAC·5mA
    Shaft Radial Play 0.06Max. 450g
    Shaft Axial Play 0.08Max. 450g

    stepper motor dimension L60-120
    Motor Connection
    Motor connection
    Tips: Reasons and solutions for reduction in torque frequency characteristic of the stepper motor

    The relationship between output torque and control pulse of stepper motor is called torque frequency characteristic.
    Feature: By taking the maximum load torque (start torque), the rotational velocity of the stepper motor will be increased gradually but the load capacity is reduced along with the increase in pulse frequency.
    The reasons for the reduction in torque frequency characteristic of the stepper motor:

    1. Influence of winding inductance: It takes certain time to rise and reduce the current in winding. When the pulse frequency is low, it can realize long power-on cycle of winding, large average value of current, high energy that can be obtained for the motor and high torque that can be maintained. However, when the pulse frequency is high, it can realize short power-on cycle of winding, small average value of current, little energy that can be obtained for the motor and reduction in torque that can be maintained.
    2. Iron loss: Along with the rising frequency, the rotational velocity of the rotor is increased. Due to additional rotational EMF generated in rotor winding, the motor faces larger resistance torque and the eddy loss of iron core is also increased.

    Measures for improving the high frequency of torque characteristic through two ways:

    1. Resistance can be increased by reducing the time constant. To ensure the current in live current is not changed, it is also necessary to increase the power voltage while increasing the resistance.
    2. Improve working mode. Adopt multi-phase exciting working mode. Due to the multi-phase exciting working mode, the power-on time for each phase is prolonged, then more energy can be obtained for the motor so that the output torque is increased.
