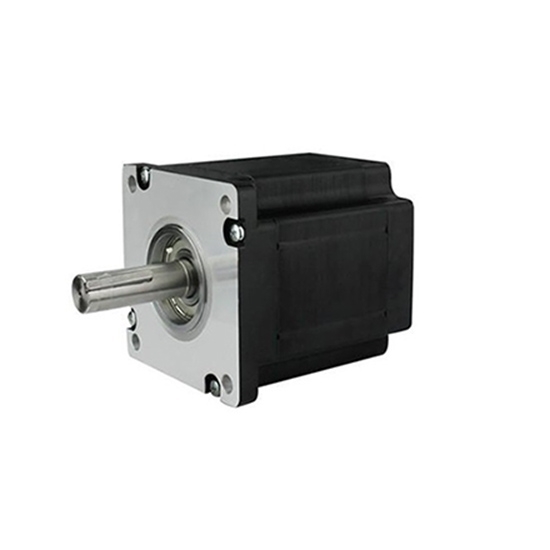

    Nema 42 Stepper motor, 4A, 1.2 degree, 3 phase 6 wires

    5 out of 5 based on 1 reviews | Write a review
    Nema 42 3 phase 1.2 degree per step stepper motor with excellent quality and reasonable price, high holding torque and low power consumption, sell by manufacturer directly.
    SKU: ATO-STEP-31004204
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    3 phase, 6 wires, 1.2 degree step angle Nema 42 stepper motor, widely used in 3D printer, monitor, medical, textile, packaging machine, etc.

    Basics Model ATO3100-4006A
    Matched the Driver Model ATODSP86 (Click it to see more info)
    Step Angle 1.2°
    Length 100mm
    Weight 5kg
    Current 4A
    Resistance 0.8Ω
    Holding Torque 13Nm
    Motor Leads 6
    Rotor Inertia 5500g-cm2
    Technical parameters Step Angle Accuracy ±5% (full step, no load)
    Resistance Accuracy ±10%
    Inductance Accuracy ±20%
    Temperature Rise 80℃Max. (rated current, 2 phase on)
    Ambient Temperature -10℃~+50℃
    Insulation Resistance 100MΩ Min. 500VDC
    Dielectric Strength 1Min. 500VAC·5mA
    Shaft Radial Play 0.06Max. 450g
    Shaft Axial Play 0.08Max. 450g

    nema 42 3 phase demension
    Motor Connection
    Nema 42 wiring diagramnema 42 3 phase connection
    Tips: Stepping motor for medical device manufacturing industry

    The emergence of stepper motors, slowly used in the medical device manufacturing industry, it was found that if to match a stepper driver, with the performance of the servo motor at the same time, the cost is cheaper than the servo motor. Stepper motor torque is larger, the shape is smaller than the servo motor, the process is better than before, small stepper motor can guarantee a small energy consumption, you can save costs. Because the stepper motor step angle can be suitable for any one action, stepper driver subdivision stability, accuracy are greatly improved.
    Due to the smaller size of the stepper motor, it can meet the needs of a variety of external dimensions, the use of a new small stepper motor, but also reduces the overall size of the machine. The volume is reduced Finally, the corresponding energy consumption is also small, operating costs are greatly reduced, high-efficiency stepper motor with different axis operation, the final result in xy sampling accuracy requirements are greatly improved. So you can ensure that the Predetermined pipette wells is well used, and the high resolution of stepper motors and machinery is accomplished by increasing the number of teeth, thus providing the best possible precision for various stepper motors.

    Existing reviews of Nema 42 Stepper motor, 4A, 1.2 degree, 3 phase 6 wires
    Helpful nema 42 stepper motor
    Bought this nema 42 stepper motor to use with the upgraded extruder kit I bought. The original stepper motor came with the extruder gear pressed on so I decided to just buy a new stepper to use with the upgrade kit.
    From: Shaun | Date: 16/08/2022
    Was this review helpful? Yes No (0/0)
