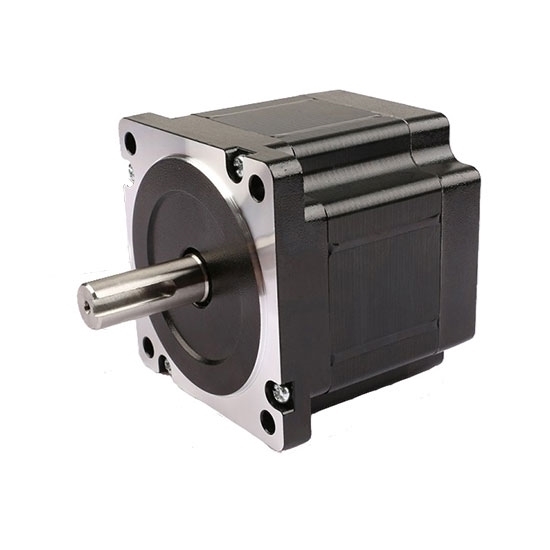

    CNC Nema 34 Stepper motor, 1.8 degree, 6A, 4 wires 2 phase

    This is a high precision 4-wire bipolar stepper motor, size in Nema 34, 1.8 deg. step angle (200 steps/rev), body in 120mm, good quality and manufacturer direct sale.
    SKU: ATO-STEP-21203406
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Nema 34 stepper motor, 6A, 2 phase 4 wires bipolar stepper motor with 1.8 degree step angle, body in 120mm, perfect for all kinds of mechanical and robotics projects.


    Basics Model ATO2120-6004A
    Matched the Driver Model ATODSP86 (Click it to see more info)
    Step Angle 1.8°
    Length 120mm
    Weight 4kg
    Current 6A
    Resistance 0.6Ω
    Holding Torque 8.4Nm
    Motor Leads 4
    Rotor Inertia 3200g-cm2
    Technical parameters Step Angle Accuracy ±5% (full step, no load)
    Resistance Accuracy ±10%
    Inductance Accuracy ±20%
    Temperature Rise 80℃Max. (rated current, 2 phase on)
    Ambient Temperature -10℃~+50℃
    Insulation Resistance 100MΩ Min. 500VDC
    Dielectric Strength 1Min. 500VAC·5mA
    Shaft Radial Play 0.06Max. 450g
    Shaft Axial Play 0.08Max. 450g

    stepper motor dimension L60-120
    Motor Connection
    Motor connection
    Tips: Stepping motor controller and its application features
    Stepper motor controller is the command center of the stepper system. The rotational velocity and angle of stepper motor can be controlled through pulse frequency and quantity. Meanwhile, the rotational direction or offline state of stepper motor can be controlled through high and low levels. The stepper motor controller mainly depends on whether the interface and operation is convenient, program command and logic is correct and rational, as well as acceleration control optimization and anti-jamming capability of stepper motor, circuit design and hardware quality. Stepper controller can be SCM, DSP, PLC, motion control card, IPC and even encoder, so long as the pulse signal meeting the requirements can be sent out, it can be used as the stepper controller. Regarding interface and operation, SCM controller is incomparable to human-computer interface. PLC instruction is richer, featuring stronger anti-jamming capability.
