PID temperature controller with multi channel can support not only temperature sensors, but also humidity sensor, pressure sensors, load cells, displacement sensors, liquid level sensors, gas sensors, and other non-standard sensors.Specification:

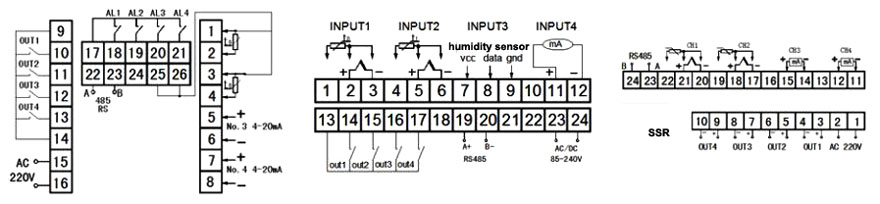

Wiring diagram:1. PID temperature controller wiring diagram (input: I1 temerature sensor)2. PID temperature controller wiring diagram (input: I2 analog signal)3. PID temperature controller wiring diagram (input: I1+I2 all signals)Tips: Difference between 4-20mA control signal and transmission signal?The instrument can also support 4-20mA (including 0-10mA, 0-10V, 1-5V) as control signal output and transmission signal output. The control signal is used to control the output percentage of the VFD voltage regulating module. While the transmission signal converts the temperature values displayed on the current instrument into linear signal 4-20mA and then passes to PLC, DCS and other devices. Because PLC does not identify Pt100, K/E/J/T these temperature sensors, PLC can recognize the measured value only when it is 'translated' to 4-20mA signal by transmitter.
Download Temperature-controller-communication-protocol (pdf).

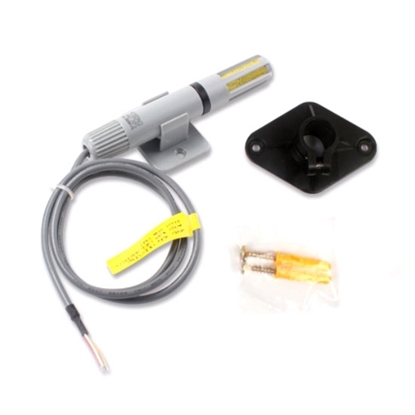

1. How to use a dual channel temperature controller to measure temperature and humidity?Want to know how to measure temperature and humidity? In this video, ATO will show you how to use dual channel temperatue controller, RTD Pt100 sensor, humidity sensor, SSR and other devices to monitor temperature and humidity at the same time.
2. How to use the RS485 communication function of temperature controller for temperature and humidity remote monitoring?ATO temperature controller with RS485/RS232 output has the special software for temperature and humidity remote monitoring. After purchasing one temperature controller, you can receive an installation program. The operations are shown in the video below.
