    10A SSR Solid State Relay, 3-32V DC to DC, Din Rail Mount

    $71.42

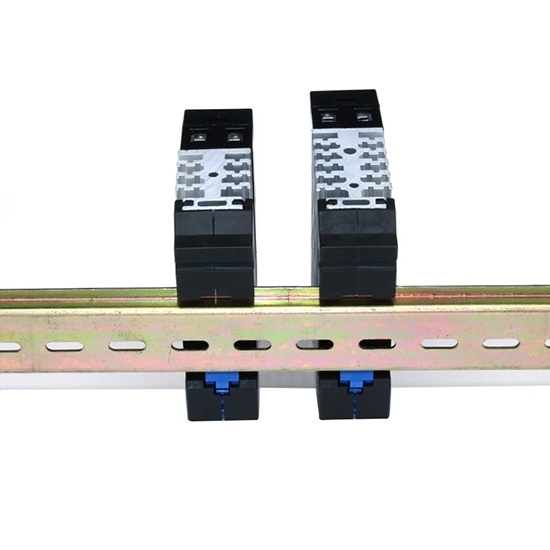

    SSR-10DD, Single phase solid state relay with heat sink, 3-32V DC to DC, din rail mount, load current 10A, DC control, input 3-32VDC, output 3-75VDC, suitable for high frequency use. Aluminum heat sink for solid state relay small type, good dissipation, high quality and long service life.
    SKU: ATO-SSR-DS10DD
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Features

    Heat sinks provide long-lasting use, which helps to dissipate heat and protect solid state relays. 10A 3-32V DC to DC solid state relays are ideally suited for automated process control applications and are essential components for temperature controllers and other mechanical control systems. Made of durable aluminum material, installable heat sink design, small size, easy to install.

    • Exquisite workmanship
    • Photoelectric isolation
    • SSR output
    • LED indicator for operation status
    • Removable protective cover for safety
    • Panel mount
    • Zero-crossing switch type

    Specification

    Model ATO-SSR-DS10DD
    Voltage Type DC-DC
    Load Current 10A
    Load Voltage 3-75V DC
    Control Voltage 3-32V DC
    Max Input Current 12mA
    Must Operation Voltage 2.8V DC
    Must Release Voltage 1.5V DC
    Max On-stage Voltage Drop ≤0.2V
    Peak Voltage 75V DC
    Operation Temperature -20℃ to 80℃
    Max Off-state Leakage Current 12mA
    Dielectric Strength 2500V
    Weight 181g
    Certificates CE, ROHS


    Dimension

    DC to DC SSR dimension

    Wiring Diagram

    An example wiring diagram

    Tips: The effect of using ambient temperature and some protective measures

    The load capacity of solid-state relays is greatly affected by the ambient temperature and its own temperature rise, in the process of installation and use, should ensure that it has good heat dissipation conditions, rated operating current of 10A or more products should be equipped with a heat sink, 100A or more products should be equipped with a heat sink plus fan strong cooling. In the installation should pay attention to the bottom of the relay and good contact with the heat sink, and consider applying the appropriate amount of thermal grease to achieve the best heat dissipation effect.

    If the relay works under high temperature for a long time (40℃~80℃), the user can consider reducing the amount to ensure normal operation according to the maximum output current and ambient temperature curve data provided by the manufacturer. If the relay works under high temperature for a long time (40℃~80℃), the user can consider reducing the amount to ensure normal operation according to the maximum output current and ambient temperature curve data provided by the manufacturer.
