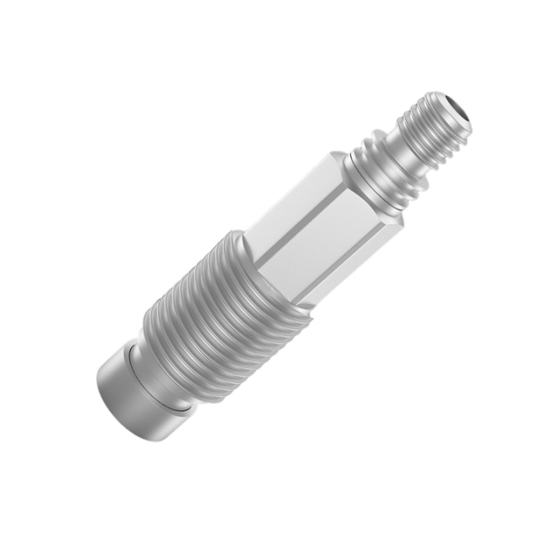

High Accuracy Piezoelectric Pressure Sensor, 10/50/100/200/400/600 MPa

High precision pressure sensor for sale online. It is a stainless steel piezoelectric pressure transducer that can measure pipeline pressure and explosion pressure in the range of 10/50/100/200/400/600 MPa.

Specifications

Note: If you need charge signal output or ICP voltage signal output, please contact us.

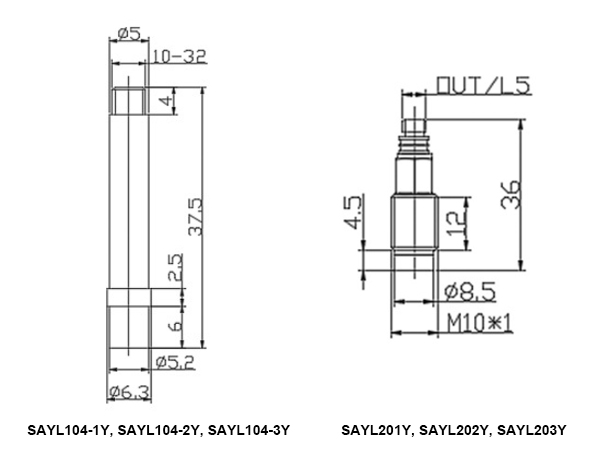

Dimensions (Unit: mm)

Tips: Piezoelectric Pressure Sensor Working Principle

Piezoelectric pressure sensors operate on the principle of piezoelectricity, a property of certain materials that generate an electric charge in response to applied mechanical stress. When pressure is exerted on the piezoelectric material, it deforms slightly, causing a change in the charge distribution within the material, which results in the generation of a voltage across the material's surface. This voltage is proportional to the applied pressure. The sensor's output is typically calibrated to provide a direct reading of pressure in units such as pascals, bar, or pounds per square inch. The main advantage of piezoelectric sensors is their fast response time, making them suitable for dynamic pressure measurements. However, they are sensitive to temperature changes and may require compensation to ensure accurate readings.
