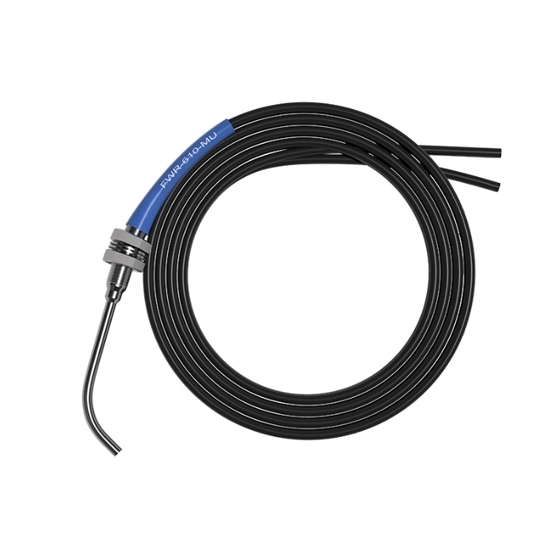

Plastic Fiber Optic Sensor, M6 Bend Probe

The M6 bend plastic fiber optic sensor is a diffuse reflection type sensor ideal for precise detection in industrial automation settings. Its robust plastic build, high-quality fiber for low transmission loss, and flexible design ensure stable performance in various environments. The fiber optic amplifier sensor requires pairing with a fiber optic amplifier and is suitable for use in tight spaces due to its compact form factor.

Specification


Feature

• The fiber sensor provides reliable diffuse reflection sensing for accurate detection.
• It utilizes a high-quality plastic fiber that ensures minimal light transmission loss.
• This plastic fiber optic sensor is designed with excellent flexibility and bend resistance, guaranteeing long-term durability.
• Its compact M6 bend probe design allows for easy installation in tightly limited spaces.
• The cable length of the fiber optic sensor is customizable to perfectly fit specific application requirements.
• Note: This fiber optic sensor needs to be uesed with amplifier

Dimension (Unit: mm)

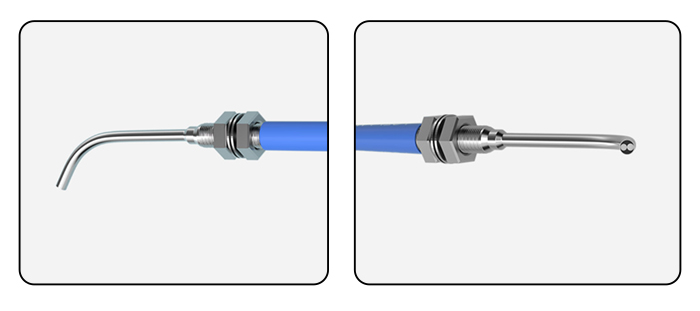

Detail

5 Tips of using your plastic fiber optic sensor

• Always maintain the minimum bend radius of R25 during installation to protect the plastic fiber from damage and ensure optimal light transmission.
• This fiber optic sensor must be paired with a compatible fiber optic amplifier to function correctly.
• For best performance in diffuse reflection mode, ensure the target object is within the 90mm sensing distance and has a sufficiently reflective surface.
• The fiber optic detector is well-suited for diverse environments, but avoid exposing it to temperatures outside its operating range of -55°C to +70°C.
• When routing the cable in confined spaces, secure it properly to prevent sharp kinks or excessive stress on the fiber bundle.
