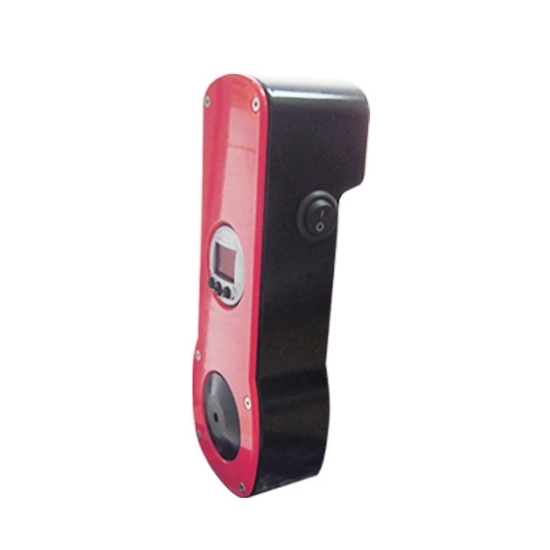

Digital Pull Force Meter For Rivet Nut Gun

5 out of 5 based on 1 reviews | Write a review

$2,529.26

Featuring 0-40 kN capacity and 5% accuracy, ATO digital pull force meter for rivet nut gun delivers precise force measurement. Digital force gauge provides reliable rivet nut gun testing. Repeat positioning accuracy stays within ±3%, and it offers IP67 protection. This forcemeter maintains stable performance even in harsh conditions, making it essential for reliable quality control.

SKU: ATO-FG-MXTAR800

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

This digital force meter serves as a precise force measurer for rivet nut gun applications. Response time maintains under 10 ms operation, overload pressure withstands 80 bar conditions, operating voltage supports DC 18-24V range, and burst pressure tolerance reaches 200 bar maximum.

Specification

Model	ATO-MXT-AR800
Pull Force Range	0-40 kN
Repeat Positioning Accuracy	-3% ~ +3%
Force Gauge Accuracy	Within 5% (generally negative tolerance)
Dimensions (LWH)	2107556.5 mm
Rivet Gun	Nose piece corresponds to the screw rod
Operating Voltage	DC 18-24 V
Switch Current	<1.2 A
Overload Pressure	80 bar
Burst Pressure	200 bar
Response Time	<10 ms
Medium Temperature Range	-25 to 80 °C
Display	4-digit, 7-segment, red
Protection Rating	IP67

Features

Application versatility: Best digital pull force gauge suits various threaded or shaft-core rivet nut tools for multiple scenarios.
Measurement precision: Equipment delivers accurate pull force readings with fast response speed for efficient operation.
Operational convenience: Strength gauge features user-friendly design allowing simple and intuitive force testing procedures.
Quality assurance: Pull test meter maintains consistent performance backed by reliable manufacturing standards.
Durability assurance: Robust construction ensures long service life even under frequent testing conditions.

Dimension (Unit: mm)

Pull force meter dimension

Operation

Pull force meter operations

Turn on the product.
Align the pull rod of the product to be tested (nut gun) with the pull nozzle and gently press down.
Press the switch on the rivet gun.
Read the tension value on the force gauge display.

Application

Pull force meter application

Tips: What are the usage limitations of this digital pull force meter for rivet nut gun?

This pull meter has two main usage restrictions:

Avoid using this forcemeter on uneven ferrous surfaces or with stepped mandrels, as these conditions affect measurement accuracy.
When performing a stroke adjustment on blind rivet tools, the display shows the maximum pull force value rather than the actual working force.
