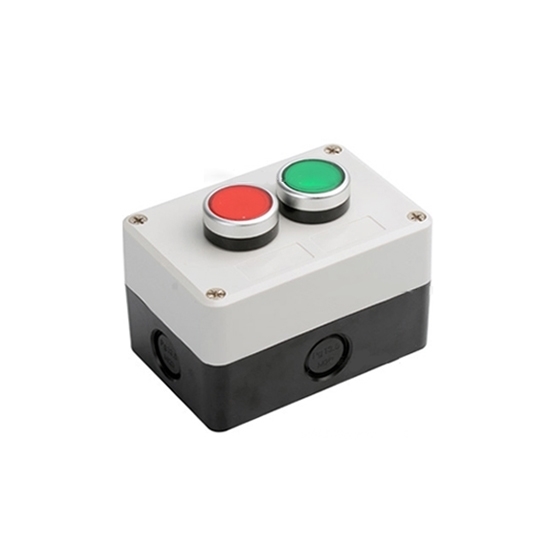

Plastic Push Button Switch, 1 NC+1 NO, 10 A

5 out of 5 based on 1 reviews | Write a review

$40.55

The product base of the 1 NC+1 NO plastic push button control switch is made of PA 66 material and copper-based composite silver dots. With a waterproof ring equipped, and the waterproof level reaches IP 65. This 10 A push button switch is your best choice.

Button type *

SKU: ATO-PB-10A

This product has a minimum quantity of 3

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

The push button control switch has a simple structure of 1NC+1NO contact form, sensitive response and long service life. The push button switch box is widely used in electrical automatic control circuits. And mainly used to manually send control signals to control contactors, relays, electromagnetic starters, etc.

1 NC+1 NO Plastic Push Button Switch Specifications:

Model	ATO-KL-B205	ATO-KL-B207	ATO-KL-B203
Item	1 NO+1 NC button (non water-proof)	1 NO+1 NC button (water-proof)	1 NO+1 NC button (with selectable switch)
Contact form	1 NO+1 NC
Button type (standard)	Self-reset type
Material	ABS plastic
Temperature	-40℃-+80℃
Protection level	IP65
knock off hole	Yes
Cover and base connect	Yes
Color of the button box	Yellow or grey
Max.voltage	220V
Max.current	10A

Structure and Dimension (Unit=mm)

1 NO+1 NC button (non water-proof)

Push button switch details

Tips: selection principle of push button switch:

① Select the form of the card tube according to the purpose, such as emergency type, key type, instruction type, etc.
② The type of push button switch can be selected according to the use environment, such as open type, waterproof type, anti-corrosion type, etc.
③ The color of the push button switch box can be selected according to the requirements of working status and working conditions.

In this video, we've walked you through the step-by-step procedure for wiring an AC contactor to establish the latching circuit and we also showed you how to achieve motor control with the established latching circuit.

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.
