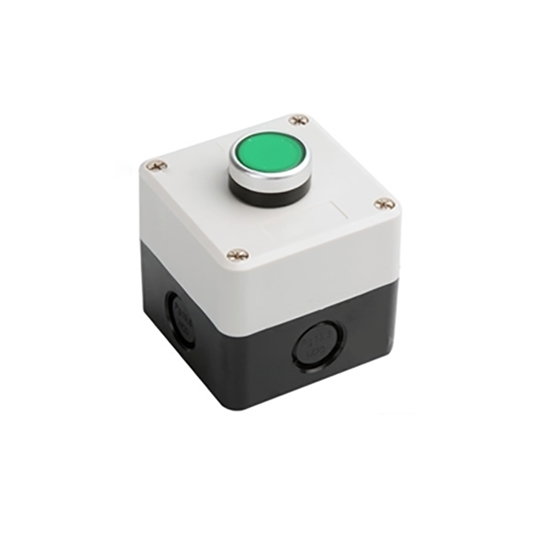

    Push Button Switch, 1 NC/1 NO, 22 mm

    5 out of 5 based on 1 reviews | Write a review
    $35.55
    Low cost push button control switch features 22 mm bore size, 1 NC or 1 NO contact form for choice, works at 220 V voltage. It is made of ABS high temperature resistant flame-retardant plastic material, metal type button switch is available. The mechanical life is more than 3 million times, and the electrical life is more than 600 thousand times. This push button control switch is your best choice.
    SKU: ATO-PB-1 NO-1 NC
    *
    *
    This product has a minimum quantity of 3
    Free Shipping Worldwide
    Delivery date: 6-12 days

    The single push button control switch has a simple structure of 1NC/1NO, sensitive response and long service life. The push button switch box is widely used in electrical automatic control circuits. The push button control box is mainly used to manually send control signals to control contactors, relays, electromagnetic starters, etc.

    1 NC/1 NO Push Button Switch Specifications

    Model KL-H101  KL-H102  KL-H144 AG-01 AG-01-2
    Item Plastic non water-proof button plastic water-proof button plastic selectable switch metal flush button metal selectable switch
    Contact form 1 NO/1 NC
    Temperature -40℃-+80℃
    knock off hole Yes
    Cover and base connect Yes
    Bore size 22 mm
    Max.voltage 220V
    Max.current 5A 10A
    Material ABS plastic Aluminum
    Color of the button box Yellow or grey Grey
    Protection level  - IP65  -  -

    Structure and Dimension (Unit=mm)

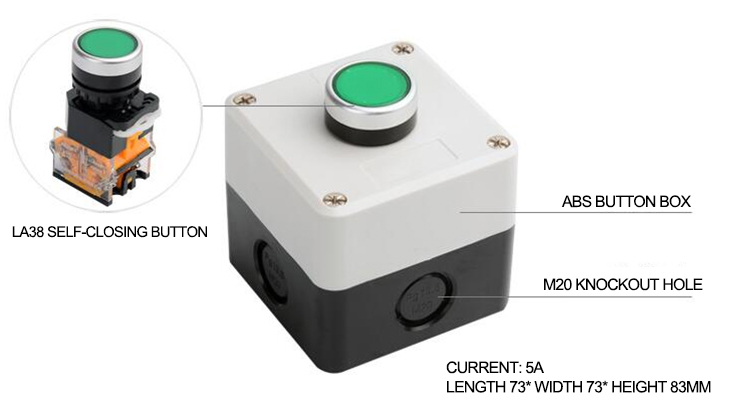

    Plastic non water-proof button

    Push button switch 1 NC 1 NO structure

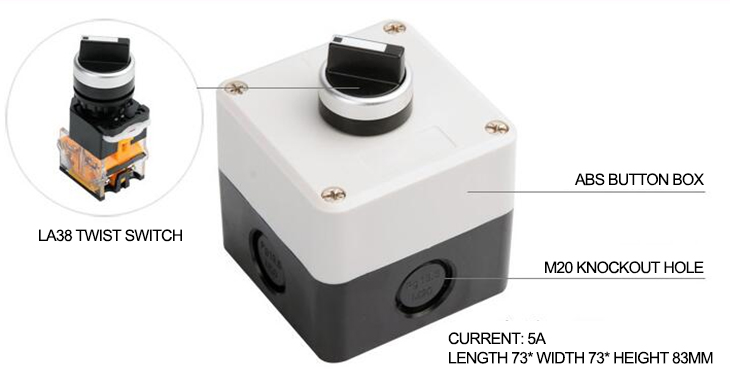

    Plastic selectable switch
    Push button switch 1 NC 1 NO structure

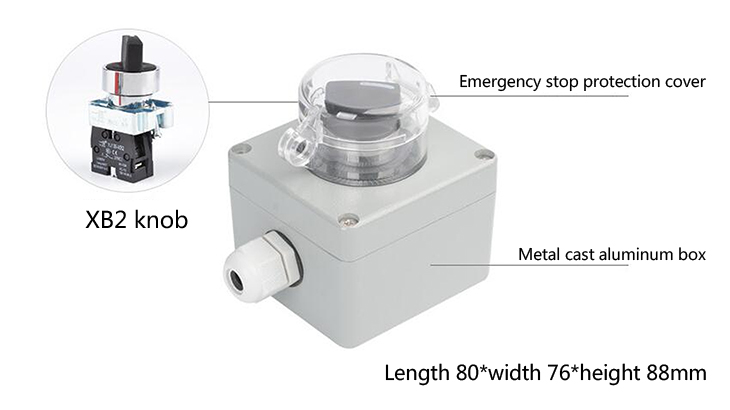

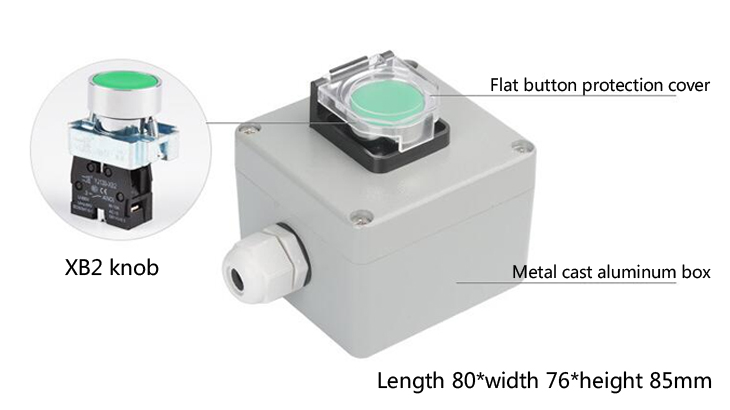

    Metal flush buttonPush button switch 1 NC 1 NO structureMetal selectable switch

    Push button switch 1 NC 1 NO structure

    Tips: the structure type of the push button switch

    The push button control switch can be divided into self-locking type, self-resetting type, rotary handle type, mushroom head type, indicator light type, light symbol type and key type. There are single-button, double-button, three-button and different combinations. They generally adopt a building block structure. They are composed of button caps, return springs, bridge contacts and shells. They are usually made of composite type, with a pair of normally closed contacts and Normally open contacts, some products can increase the number of contact pairs by connecting multiple elements in series. There is also a self-holding button, which automatically maintains the closed position after being pressed, the push button control box can only be opened after the power is cut off.
