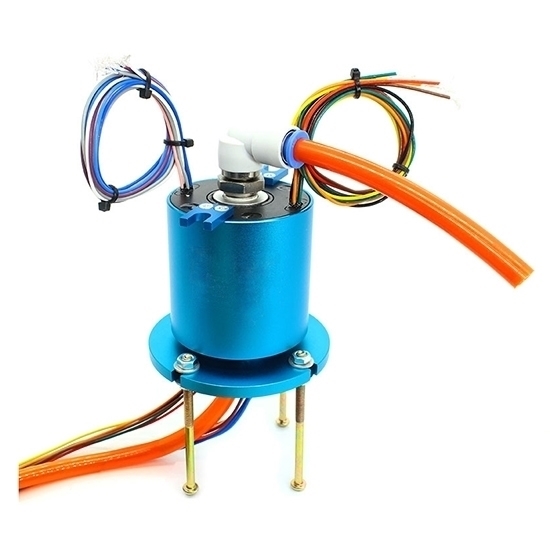

    1-Passage Rotary Joint, Electrical/Pneumatic Slip Ring, M5 Thread Port

    5 out of 5 based on 3 reviews | Write a review
    1-passage rotary joint is an electrical and pneumatic slip ring, transfer fluid mediums including hydraulic, cooling water, compressed air, steam, vacuum and other gas/liquid. It also can transmit 5A current and signal, circuits can select 6 wires/12 wires/24 wires. M5 thread port for 4mm pipes. Other combinations of circuits and transmission current are customizable.
    SKU: ATO-RTJT-3001
    30-day Returns
    Free Shipping
    Delivery date: 10-20 days

    The series of 1-passage pneumatic rotary joint can rotate 360° and transmit medium. It can not only transfer fluid but also can combine to transmit electrical power and signal. Slip ring has the advantages of small size, light weight and low torque. In addition to standard models, other specifications can be customized.


    • Single-passage 1 in 1out pneumatic rotary joint slip ring, 35mm outer diameter, M5 thread, supports 4mm pipe.
    • Can mix power lines, signal lines, Ethernet, industrial bus, control lines, solenoid valves, induction lines, etc.
    • Standard installation is flange, customizable hollow shaft installing.
    • The medium that can pass including compressed air, hydrogen, nitrogen, chemical mixed gas, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverage, and the like.


    Model ATO-3001004
    Number of Passages 1 Passage (Gas/Flow)
    Thread Port M5
    Pipe Size 4mm
    Max. Pressure 10Mpa, Vacuum -1.5kPa
    Torque <0.2N.m
    Voltage Range Power: 0~440VAC/VDC
    Signal: 0~440VAC/VDC
    Insulation Resistance Power: <500MΩ/300VDC
    Signal: <500MΩ/300VDC
    Lead Wire Spec. Power:AWG17# Silverplated teflon wire
    Signal: AWG22# Silverplated teflon wire
    Lead Wire Length standard 200mm (can be customized)
    Insulation Resistance 500VAC@50Hz, 6s
    Electrical Noise <0.01Ω
    IP Grade IP51
    Working Life 10millions for ref (depends on working conditions)
    Max. Speed 250rpm continously, 1000rpm intermittently
    Certification CE, RoHS
    Working Temp. -30℃~80℃
    Work Humidity 0~85% RH
    Contact Material precious metal
    Housing Material aluminum alloy
    Weight About 1 kg

    Note: Please contact us if you need the flange

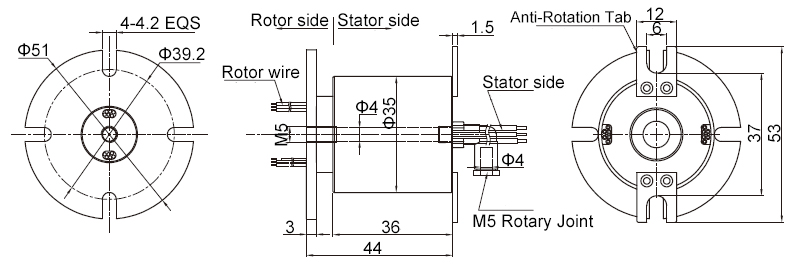

    1-Passage Pneumatic/Electrical Rotary Joint Dimension Diagram (Unit: mm)

    1-Passage Pneumatic Electrical Rotary Joint Dimension Diagram

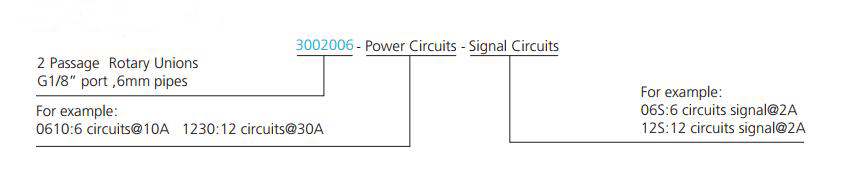

    Standard Model List

    Model Passage Circuits Length L (mm)
    Power (10A) Signal (0-5A)
    ATO-3001004-06S 1 0 6 36
    ATO-3001004-08S 1 0 8 36
    ATO-3001004-0610 1 6 0 36
    ATO-3001004-12S 1 0 12 36

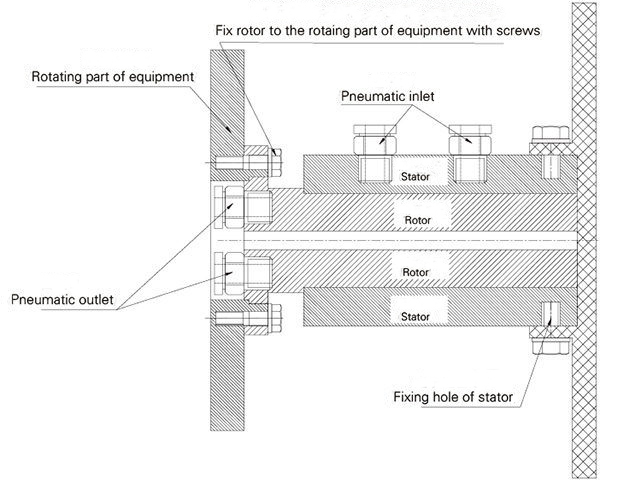

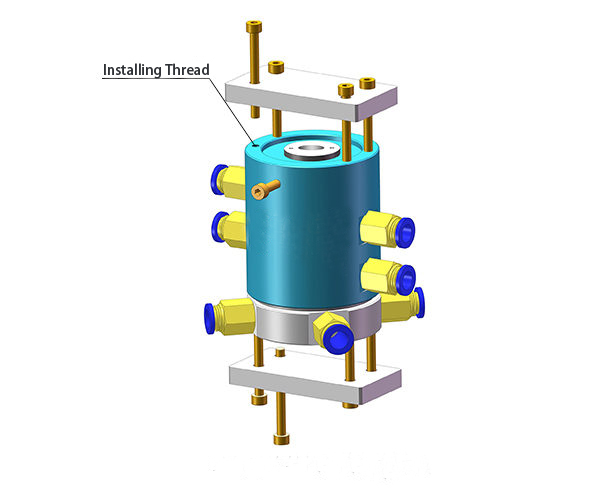

    1-Passage Pneumatic/Electrical Rotary Joint Installation Diagram

    1-Passage Pneumatic Electrical Rotary Joint Installation Diagram

    1-Passage Pneumatic Electrical Rotary Joint Installation Diagram

    Color Code of Lead Wire

    ring # 1 2 3 4 5 6 7 8 9 10 11 12

    Tips: What is a rotary joint?

    A rotary joint is also called rotary union. It is a closed rotary connector for 360° rotating conveying medium. A 1-passage rotary joint has 1 intake and 1 exhaust. The rotary joint input fluid medium from a stationary pipe into a rotating or reciprocating device and then discharge the medium from the rotary joint. The application fields cover almost every processing and manufacturing industry. For example, metallurgy, machine tool, power generation, oil, rubber plastic, textile, printing and dyeing, pharmaceutical, cigarette, papermaking, food, feed processing, etc.
