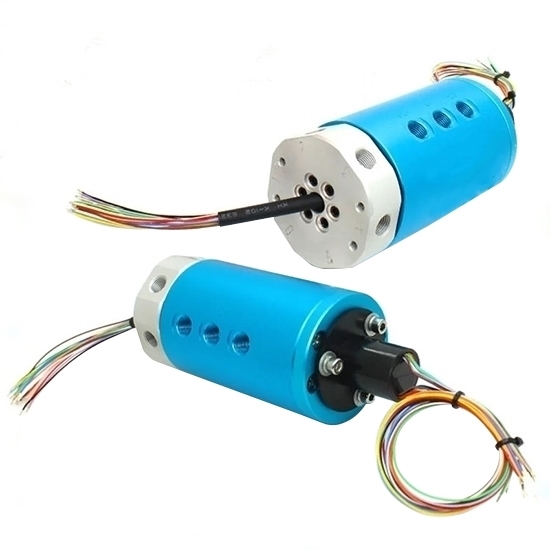

    6-Passage Rotary Union, Pneumatic/Electrical Slip Ring for Air/Water/Hydraulic

    5 out of 5 based on 1 reviews | Write a review
    6-passage pneumatic rotary union affordable price. It can transmit compressed air, steam, vacuum, hydraulic and other fluid medium in 360 ° rotation. Electrical slip ring also can select 12/24/36/56 wires 2A or 12/24 wires 5A for signal/current transmission. Thread port is G1/8" for 6~8mm pipes. Combinations of circuits and transmission current for customization.
    SKU: ATO-RTJT-3006
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days


    • 6-passage 6 in 6 out pneumatic rotary joint slip ring, G1/8" thread, supports 6~8mm pipe.
    • Can mix power lines, signal lines, Ethernet, industrial bus, control lines, solenoid valves, induction lines, etc.
    • In addition to standard models, other specifications can be customized.


    Model ATO-3006006
    Number of Passages 6 Passages
    Max. Pressure 1Mpa, Vacuum -1.5kPa
    Thread Port G1/8"
    Pipe size 6~8mm
    Torque <0.2N.m
    Working Life 20 millions for ref (depends on working conditions)
    Max. Speed 250rpm continously, 1000rpm intermittently
    Working Temp. -30℃~80℃
    Work Humidity 0~85% RH
    Contact Material precious metal
    Housing Material aluminum alloy
    Voltage Range Power: 0~440VAC/VDC
    Signal: 0~440VAC/VDC
    Insulation Resistance Power: <500MΩ/300VDC
    Power: <500MΩ/300VDC
    Lead Wire Spec. Power:AWG17# Silverplated teflon wire
    Signal: AWG22# Silverplated teflon wire
    Lead Wire Length standard 250mm (can be customized)
    Certification CE, RoHS
    Insulation Resistance 500VAC@50Hz,6s
    Electrical Noise <0.01Ω
    IP Grade IP51
    Weight About 1~2 kg

    Note: Please contact us if you need the flange. The package includes the controller.

    Dimension Drawing of 6-Passage Rotary Union (gas/flow transfer only)

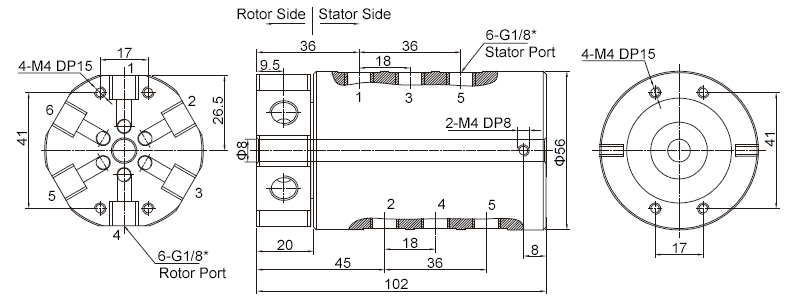

    6-Passage Pneumatic/Electrical Rotary Joint Dimension Drawing

    Standard Model List

    Model Passages (Gas/Flow Transfer Only) Port Size Pipe Size
    ATO-3006006 6 G1/8" 6~8mm

    Dimension Drawing of 6-Passage Rotary Union (gas/flow+6~56-Wire 2A signal transfer)

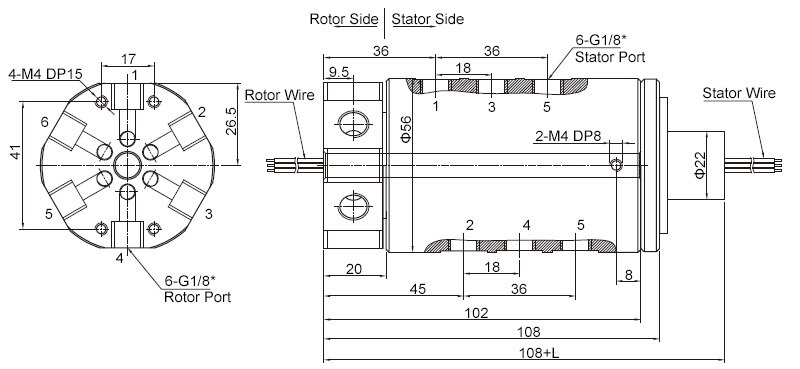

    6 passage pneumatic electrical rotary union 6-56 wire signal 2a dimension

    Standard Model List

    Model Passages
    Port Size Pipe Size Signal Circuits (2A) Length L (mm)
    ATO-3006006-06S 6 G1/8" 6~8mm 6 14
    ATO-3006006-12S 6 G1/8" 6~8mm 12 21
    ATO-3006006-24S 6 G1/8" 6~8mm 24 35
    ATO-3006006-36S 6 G1/8" 6~8mm 36 52.3
    ATO-3006006-56S 6 G1/8" 6~8mm 56 82

    Dimension Drawing of 6-Passage Rotary Union (gas/flow+6~36-Wire 5A signal/10A power transfer)

    6-Passage Pneumatic/Electrical Rotary Joint, 5A/10A Signal Dimension Drawing

    Standard Model List

    Model Passages Port Size Pipe Size Circuits Length L (mm)
    Power (10A) Signal (5A)
    ATO-3006006-0605 6 G1/8" 6~8mm 0 6 38
    ATO-3006006-0610 6 G1/8" 6~8mm 6 0 38
    ATO-3006006-1205 6 G1/8" 6~8mm 0 12 55
    ATO-3006006-0610-0605 6 G1/8" 6~8mm 6 6 55
    ATO-3006006-1210 6 G1/8" 6~8mm 12 0 55
    ATO-3006006-0610-1205 6 G1/8" 6~8mm 6 12 71.5
    ATO-3006006-1210-0605 6 G1/8" 6~8mm 12 6 71.5
    ATO-3006006-1805 6 G1/8" 6~8mm 0 18 71.5
    ATO-3006006-1810 6 G1/8" 6~8mm 18 0 71.5
    ATO-3006006-0610-1805 6 G1/8" 6~8mm 6 18 88.5
    ATO-3006006-2405 6 G1/8" 6~8mm 0 24 88.5
    ATO-3006006-3005 6 G1/8" 6~8mm 0 30 106
    ATO-3006006-3605 6 G1/8" 6~8mm 0 36 125

    Rotary Union Installation Diagram

    Rotary Union Installation Diagram


    Tips: What is the role of a rotary union?

    1. The main function of a electrical rotary union is to solve the problem of wire entanglement of the device in 360° rotation. During the electrical design process, it is needs to connect the wires to the rotating parts. When the mechanical part is continuously rotating at 360° without restriction, there will be a wire entanglement problem. To ensure that the current or signal can be accurately transmitted to the rotating component, an electric rotary connector (commonly known as an electric rotary union or rotary joint) is required to transmit the rotational connection of power and signal.
    2. The rotary union improves system performance, simplifies system construction, and prevents damage to the wire during rotation.
    3. Electrical rotary unions accurately transmit Ethernet, USB, RS, CANBus, FireWire, servo motor signals, encoder signals, strain gauge signals, thermocouples and other signals
