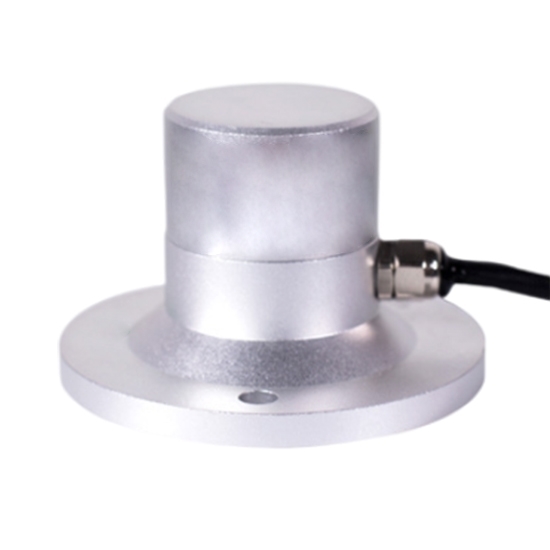

    Solar Radiation Sensor, 300-1100nm

    5 out of 5 based on 3 reviews | Write a review
    $379.60
    High precision solar radiation sensor at affordable price for sale. Radiation sensor mainly used for measuring solar radiation within 300-1100nm wavelength. Solar radiation sensor is designed on basis of silicon-cell principle, with high sensitivity, low power consumption and long service life.
    *
    *
    SKU: ATO-RS-RK20004
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Solar radiation sensor is lightweight and easy to carry. Radiation sensor widely used to monitor the solar radiation in meteorology, solar energy, agriculture, construction materials aging and atmospheric pollution.

    Features:

    • It used as sunshine duration sensor.
    • High sensitivity and low power consumption.
    • Solar radiation sensor is designed on silicon-cell principle.
    • No moving parts, no maintenance, solar radiation sensor can work in any altitude.

    Specification:

    Model ATO-RK200-04
    Spectral Range 300-1100 nm
    Supply 5V, 12-24V DC
    Range 0-1500 W/m2
    Resolution 1 W/m2
    Output 0-5V, 4-20mA, RS485
    Response Time ≤ 5s
    Cosine Correction ≤ ±10% (solar elevation angle=10°)
    Non-linearity < ±3%
    Temperature Effect ±0.08%/℃
    Stability ≤ ±2%/year
    Operating Temperature -40 ℃— +80 ℃
    Ingress Protection IP65
    Weight (unpacked) 420 g
    Shell Material Aluminum alloy
    Storage Condition 10 ℃—60 ℃, 20%—90% RH
    Certification CE
    Warranty 12 months

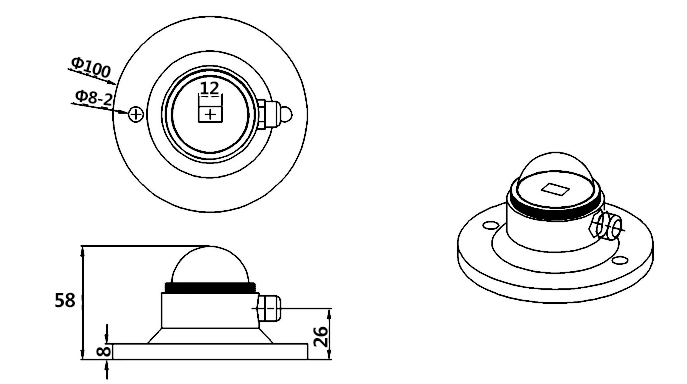

    Dimension (mm):

    Solar radiation sensor dimension

    Application:

    Solar radiation sensor application

    Tips: Working Principle of Solar Radiation Sensor

    Economical solar radiation sensor is based on the principle of silicon cell design. If the sensor is facing down. It can measure reflected radiation and solar radiation incident on an inclined plane. Silicon battery is a new type of environmental protection battery, using a new mechanism of compound silicon salt as electrolyte. Silicon crystals are laminated into n-type and p-type layers, stacked on top of each other. Light striking the crystals induces the "photovoltaic effect" which generates electricity. The electricity produced is called direct current (DC) and can be used immediately or stored in a battery. Its energy characteristics, high current discharge characteristics, low temperature characteristics, service life, environmental performance are better than all kinds of lead acid battery, is the replacement of traditional lead acid battery products.
