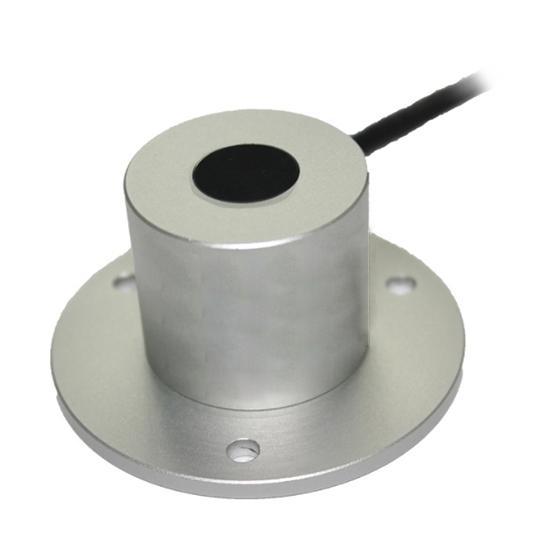

    UV Radiation Sensor, 280-400nm

    5 out of 5 based on 7 reviews | Write a review
    $561.46
    Good price UV radiation sensor with 280-400nm spectral range for sale online. Ultraviolet radiation sensor is a precision sensor used to measure ultraviolet light in the atmosphere. Aluminum alloy shell material protects UV radiation sensor, can be used in any high intensity conditions.
    SKU: ATO-URS-280
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    High quality UV radiation sensor is widely used in the exposure caused erythema dose, integrated environment ecological effect, the study of climate change and ultraviolet radiation monitoring and forecast. The lightweight construction and IP65 waterproofing give the ultraviolet radiation sensor a long service life.

    Features:

    • Light weight and long service life.
    • High sensitivity and low power consumption.
    • No moving parts, no maintenance, UV radiation sensor can work in any altitude.

    Specification:

    Model ATO-URS-280
    Spectral Range 280-400 nm
    Supply 5V, 12-24V DC
    Range 0-200 W/m2, 0-200 μW/cm2 (only for 0-2V output), 0-15 UV index
    Output 0-2V, 4-20mA (2 wires), 0-5V, RS485
    Accuracy ±5% rdg
    Response Time ≤ 1s
    Cosine Correction ≤ ±4% (solar elevation angle=10°)
    Non-linearity < ±3%
    Temperature Effect ±0.08%/℃
    Stability ≤ ±2%/year
    Operating Temperature -40 ℃— +80 ℃
    Ingress Protection IP65
    Weight (unpacked) 150 g
    Shell Material Aluminum alloy
    Storage Condition 10 ℃—60 ℃, 20%—90% RH
    Certification CE
    Warranty 12 months

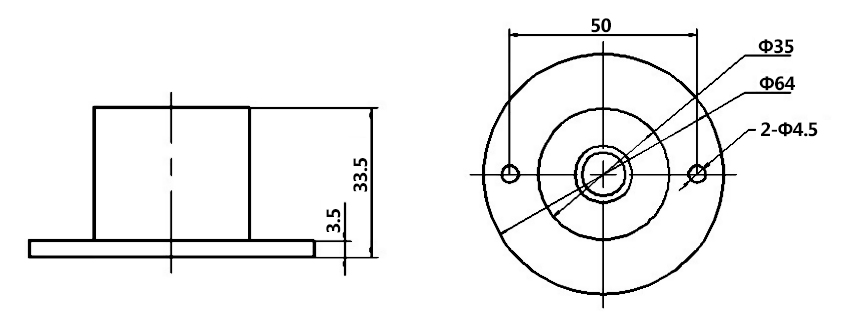

    Dimension (mm):

    UV radiation sensor dimension

    Application:

    UV radiation sensor application

    Tips: What is Ultraviolet?

    Ultraviolet (UV) is a form of electromagnetic radiation with wavelength from 10 nm (with a corresponding frequency around 30 PHz) to 400 nm (750 THz), shorter than that of visible light, but longer than X-rays. UV radiation is present in sunlight, and constitutes about 10% of the total electromagnetic radiation output from the Sun. It is also produced by electric arcs and specialized lights, such as mercury-vapor lamps, tanning lamps, and black lights. Although long-wavelength ultraviolet is not considered an ionizing radiation because its photons lack the energy to ionize atoms, it can cause chemical reactions and causes many substances to glow or fluoresce. Consequently, the chemical and biological effects of UV are greater than simple heating effects, and many practical applications of UV radiation derive from its interactions with organic molecules.
