Solid state relay, 3 phase, SSR-10AA, 10A 70-280V AC to AC

$75.23

Low price 3-phase solid state relay, SSR-10AA, input voltage 70-280V AC, load current 10 amp and load voltage 24-480V AC, panel mount, LED indicator, high quality and long lifespan.

SKU: ATO-SSR-TH10AA

Qty:

Features

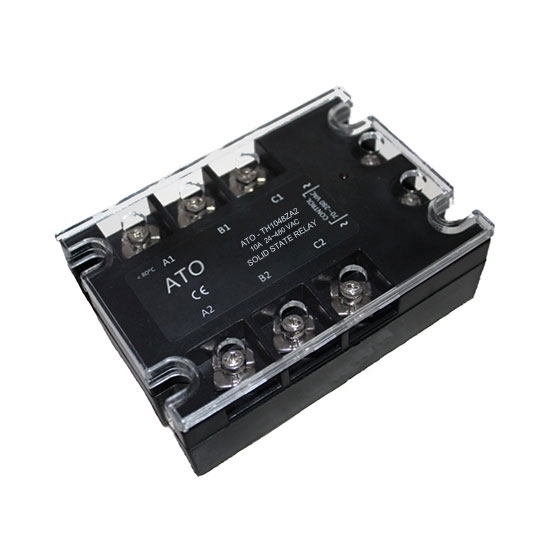

10A 3-phase solid state relay (SSR) with 70-280V AC to 24-480V AC features high structural strength, good impact resistance, and strong shock resistance. The SSR offers a reliable switching the commercial and industrial loads, such as computer peripheral interface device, printing machine, molding machine, food machine, packaging machine, and so on.

Built in RC absorption
Photoelectric isolation
SCR output
LED indicator for operation status
Removable protective cover for safety
Panel mount
Zero-crossing switch type

Specification

Model		ATO-SSR-TH10AA
Input	Control voltage range	70-280V AC
	Max. input current	20mA
	Must operate voltage	70V AC
	Must release voltage	50V AC
Output	Load voltage range	24-480V AC
	Peak voltage	800V AC
	Maximum load current	10A
	Maximum off-state leakage current	8mA
	Maximum off-state time	10mS
	Maximum on-state voltage drop	1.5V
General	Type	AC to AC, 3 phase
	Dimension L – W – H (mm)	105х74.8х33
	Weight	500g
	Dielectric strength (input to output)	4000V
	Dielectric strength (input, output to the base)	2500V
	Operating temperature	-20℃~ 80℃
	Mount	Panel
	Certification	CE

Note:

When the load is a resistive load, the maximum load current of the selected SSR should be 2~3 times greater than the actual load current;
When the load is an inductive load, the maximum load current of the selected SSR should be more than 7~8 times the actual load current.
When the maximum load current is higher than 10A, a heat sink must be installed to the solid state relay, or the SSR relay should be mounted on a metal base plate with heat dissipation effect, and the thermal grease is applied between them.

Dimensions (Unit: mm)

Wiring Diagram

Tips: How to choose a solid state relay for different loads?

It is not be a problem to choose a suitable solid state relay (SSR) for normal loads, but special load conditions must also be considered so that excessive impact current and overvoltage as well as unnecessary damages caused to device performance are avoided. The feature of cold-state resistance of filament lamps, electric furnaces, etc. result in surge current at the turn-on moment, which is several times higher than the rated working current value. Generally, ordinary-type solid state relays may work properly at the point of 2/3 of its rated current value. Enhanced solid state relays may be selected according to the parameters provided by the manufacturer. In the harsh conditions such as industrial control sites, it is recommended to leave enough voltage and current margin.

3 Phase Solid State Relay DC/AC Controlled AC

This introductory video covers the specifications and features of the ATO 3 Phase SSR models. Capable of switching at zero voltage or instantaneous turn-on, these models feature back-to-back thyristor outputs and are suitable for working resistive, inductive and capacitive loads. The control voltage for this line is 3-32V DC or 70-280V AC. Load current ratings range from 10 to 120A with nominal output voltages up to 480V AC.
