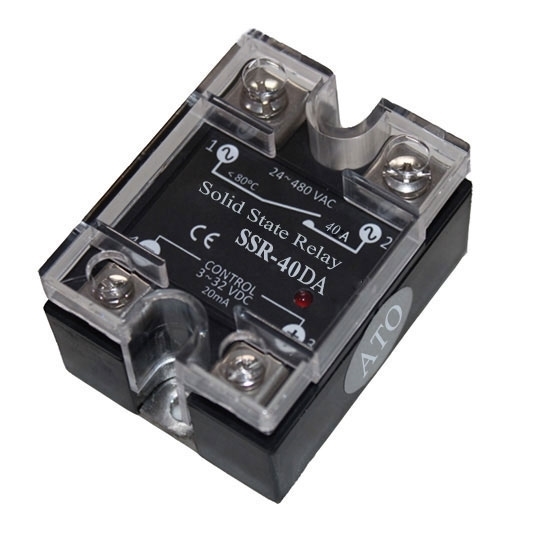

    Solid state relay SSR-40DA, 40A 3-32V DC to AC

    5 out of 5 based on 2 reviews | Write a review
    $43.46
    Brand new solid state relay 40A, zero cross, control voltage 3-32V DC, load voltage 24-480V AC, LED indicator, panel mount, low cost and high quality SSR, ideal for automatic process control applications.
    SKU: ATO-SSR-DH40DA
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Solid State Relay Features

    40 amps solid state relay (SSR) features high structural strength, good impact resistance, and strong shock resistance. The SSR offers a reliable switching the commercial and industrial loads, such as computer peripheral interface device, printing machine, molding machine, food machine, packaging machine, and so on.

    • Built in RC absorption
    • Photoelectric isolation
    • SCR output
    • LED indicator for operation status
    • Removable protective cover for safety
    • Panel mount
    • Zero-crossing switch type

    40 Amps DC to AC SSR Specification

    Model ATO-SYDH4048ZD3
    Input Control voltage range 3-32V DC
    Max. input current 12mA
    Must operate voltage 2.8V DC
    Must release voltage 1.5V DC
    Output Load voltage range 24-480V AC
    Peak voltage 800V AC
    Load current 40A
    Maximum off-state leakage current 2mA
    Maximum off-state time 10mS
    Maximum on-state voltage drop 1.5V
    General Dimension L – W – H (mm) 57.4х44.8х28
    Weight 135g
    Dielectric strength (input to output) 4000V
    Dielectric strength (input, output to the base) 2500V
    Operating temperature -20℃~ 80℃
    Mount Panel
    Certification CE

    Note:
    * When the load current is higher than 10A, a heat sink must be added to the SSR or the SSR should be mounted on a metal base plate with heat dissipation effect, and apply the thermal grease between them.
    When the load current is higher than is 40A or more, it also needs to add fan cooling or water cooling.

    * Heat Sink for Single Phase SSR

    • Material: Aluminum
    • Mounting Size: Mounting hole diameter - 3mm, threaded hole distance - 48mm
    • Dimension: 125*70*50mm (L*W*H)
    • Weight: 250g
    • Application: Less than 40A single phase solid state relay

    Solid State Relay Dimension

    SSR single phase dimensions

    SSR Wiring Diagram

    SSR single phase wiring dc ac

    Tips: Why does SSR has advantages over EMR?

    Solid state relay (SSR) is a new type of non-contact switch composed of solid state electronic components, and achieve the purpose of connecting and disconnecting circuits without contact and sparking by virtue of those electronic components (such as switching transistors, triacs and other semiconductor components). Therefore, it is also known as non-contact switch.

    Compared with the previous Electromechanical Relay (EMR), the SSR has no moving mechanical parts and no mechanical actions during its operation. It has advantages over EMR, such as fast response, high reliability, long life (SSR’s on-off times are a hundred time more than those of average EMR by 106 times), no noises, shock-proof, mechanical shock resistance, good moisture-proof and mildew-proof, anti-corrosion characteristics. These features make SSR widely used in military science, chemical industry as well as various industrial and civil electric control devices.

    Solid state relay (SSR) is simple but widely used in the automation fields. Thus, it is not complex to wire a solid state relay. In this vedio, ATO takes a 40 Amp SSR (DC - AC) for example to show the wiring of a SSR and then switch on/off a motor with this SSR.
