Solid State Relay Features
60AA SSR Specification

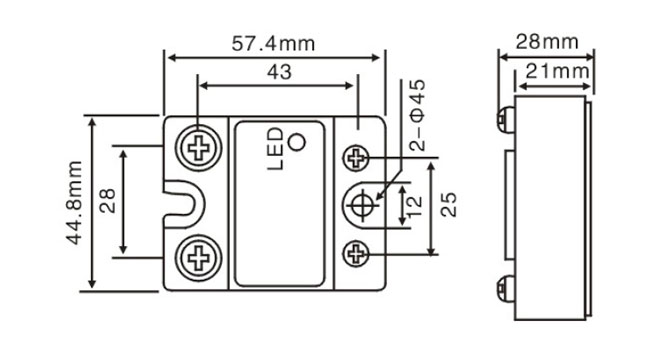

Solid State Relay Dimensions

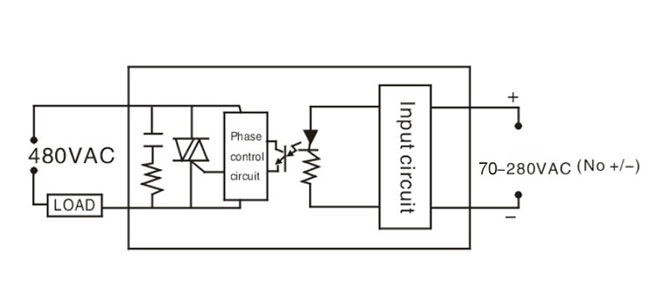

SSR Wiring diagram
Tips: AC solid state relays vs DC solid state relays
Based on the type of load power supply, SSRs can be divided into AC Solid State Relays (AC-SSRs) and DC Solid State Relays (DC-SSRs). AC-SSRs use a bidirectional thyristor as a switching device to turn on or off the AC load power supply. According to the type of control trigger, AC-SSR can be divided into zero-crossing and random turn-on. Zero-crossing AC-SSRs switch on when AC power supply goes through approx. zero voltage after control signals input. Therefore, their interference is small. The random turn-on AC-SSRs switch on or off in any phase of the AC power supply, so there may be more interference the moment they turn on.
Compared with AC-SSR, DC-SSR has no zero-crossing control circuit and does not need to install a absorption circuit, and its switching devices generally use high-power switching transistor, except which, they have the same working principles. When DC-SSR is used, it should be noted that:
Solid state relay (SSR) is simple but widely used in the automation fields. Thus, it is not complex to wire a solid state relay. In this vedio, ATO takes a 40 Amp SSR (DC - AC) for example to show the wiring of a SSR and then switch on/off a motor with this SSR.
Solid state relay catalog.pdf
