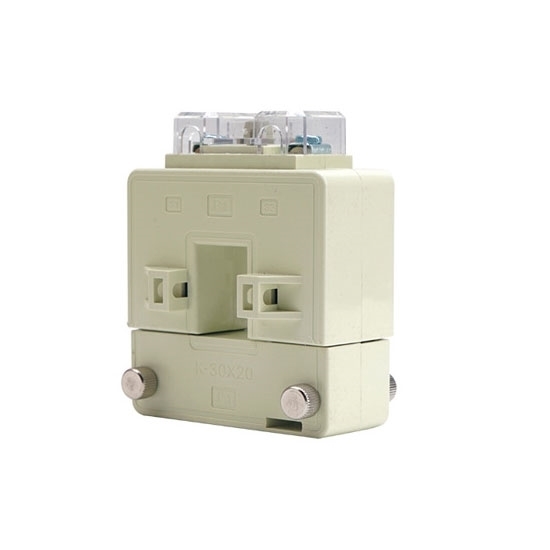

Split Core Current Transformer, 1500/5A

5 out of 5 based on 1 reviews | Write a review

$164.89

Split core current transformer for cable and copper row, primary current 1500A, secondary output 5A, accuracy Class 0.5, simple structure and reasonable design allow the split core current transformer to be used flexibly in a variety of applications.

SKU: ATO-SCT-DP1500

Qty:

30-day Returns

Free Shipping

Delivery date: 10-12 days

Overview

Split core current transformer 1500A primary input, 5A secondary output, precision 0.5 level, suitable for current measurement, signal sampling and microcomputer protection of electrical equipment in AC power system.

Specification

Model: ATO-SCT-DP510-1500
Equipment Maximum: 0.66/0.72kVrms
Accuracy Class: 0.5
Working Frequency: 50/60Hz
Primary Current: 1500A
Secondary Output: 5A
Ratio Difference: ≤±1.0%
Phase Difference: ≤ soil 10 points
Dielectric Strength: 2.5kV/1mA/1min
Insulation Resistance: DC500V/1000mΩ/min
Shell: ABS, Flame retardant grade 94-V0
Skeleton: PBT
Iron Core: Nickel steel or nanocrystal
Internal Structure: Environmentally friendly epoxy resin casting
Construction Plan: Screw fixing
Operating Temperature: -25°C~75°C
Ambient Humidity: ≤85%
Wiring: Wiring terminals

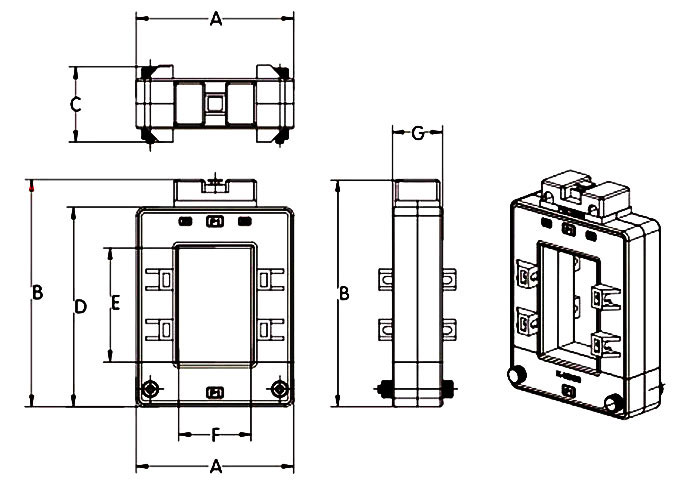

1500A Split Core Current Transformer Dimension

Split type current transformer dimension

A	B	C	D	E	F	G
142	190	67	170	102	52	48

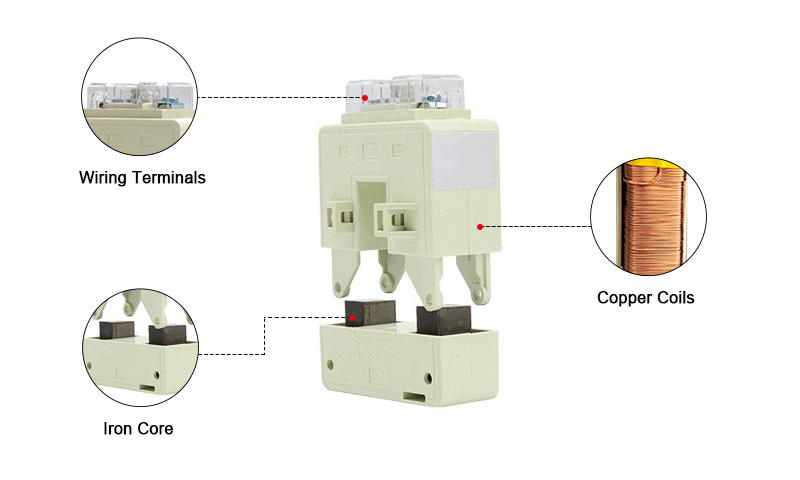

Details

Tips: 1500A Split core current transformer features

Split core current transformer has a double threaded mounting for tightness and security, and is also portable.
Two built-in mounting options for base plates and wires.
Larger internal diameter to accommodate large diameter cables and bus bars.
Various sizes to accommodate all current wire installations.

Existing reviews of Split Core Current Transformer, 1500/5A

Flexible and precise current measurement

I recently installed the split core current transformer (1500/5A) in our power monitoring system, and it’s been performing very well. The split-core design made installation quick and easy — no need to disconnect cables, which saved a lot of time. The accuracy (Class 0.5) is impressive; the readings are stable and reliable even under high load conditions. The structure feels solid and well-built, and it fits neatly around both cables and copper bars.
