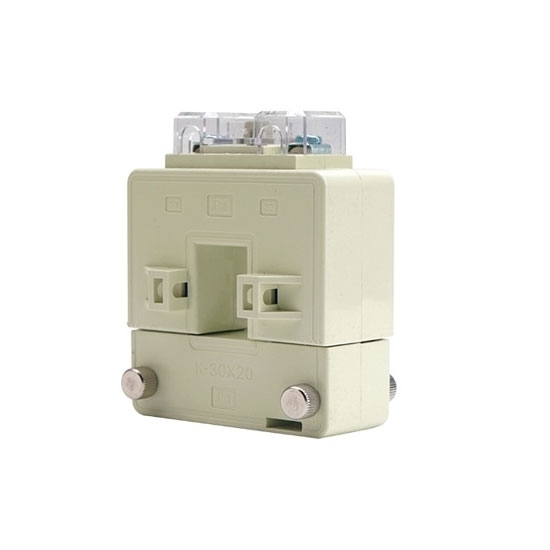

Split Core Current Transformer, 2500/5A

2500A Split core current transformer can be used with relay protection, measurement and metering devices, using ABS flame retardant housing, pure copper winding, high reliability, wide measuring range, strong anti-interference ability, and high reliability, wide measuring range, strong anti-interference ability.

Specification

• Model: ATO-SCT-DP812-2500

• Equipment Maximum: 0.66/0.72kVrms
• Accuracy Class: 0.5
• Working Frequency: 50/60Hz
• Primary Current: 2500A
• Secondary Output: 5A
• Ratio Difference: ≤±1.0%
• Phase Difference: ≤ soil 10 points
• Dielectric Strength: 2.5kV/1mA/1min
• Insulation Resistance: DC500V/1000mΩ/min
• Shell: ABS, Flame retardant grade 94-V0
• Skeleton: PBT
• Iron Core: Nickel steel or nanocrystal
• Internal Structure: Environmentally friendly epoxy resin casting
• Construction Plan: Screw fixing
• Operating Temperature: -25°C~75°C
• Ambient Humidity: ≤85%
• Wiring: Wiring terminals

2500A Split Core Current Transformer Dimension

Details

Split core current transformer applications

• Current measurement, monitoring and protection of electrical wiring and equipment
• Current and power measurement of electric motors for lighting, air compressors for heating and ventilation systems, air conditioning equipment and automation control systems.
• Current power and energy monitoring devices.
• Relay protectors
