    Split Core Current Transformer, 100/5A

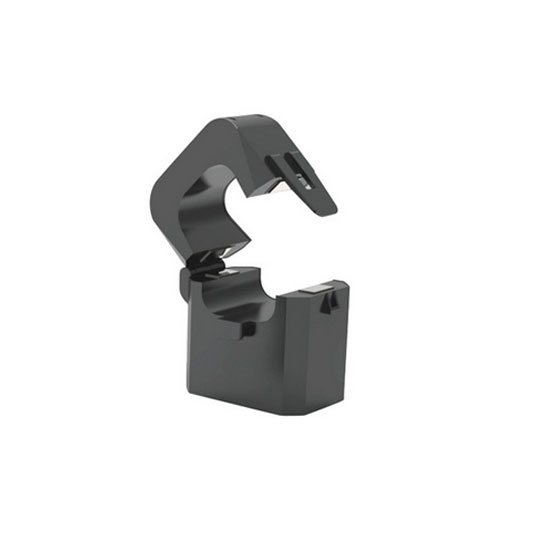

    Picture of Split Core Current Transformer, 100/5A
    Picture of Split Core Current Transformer, 100/5A

    Split Core Current Transformer, 100/5A

    5 out of 5 based on 1 reviews | Write a review
    $28.98
    Compact split current transformer with high accuracy and a current ratio of 100/5A, accuracy 0.5 grade, enables easy installation on existing power lines without disconnection or interruption of service.
    SKU: ATO-SCT-CTKD-100
    This product has a minimum quantity of 5
    Free Shipping Worldwide
    Delivery date: 10-12 days

    100A Split core current transformers adopt a snap-fit structure, which can be directly fixed on the cable with nylon cable ties, small and light, easy to install, suitable for general use.

    Specification

    • Model: ATO-SCT-CTKD24-100
    • Current Ratio: 100/5A
    • Accuracy Class: 1.0
    • Working Frequency: 50/60Hz
    • Measuring Range: 10%ln- 130%ln
    • Rated Output: 0.333V(AC) or 0-500mA
    • Ratio Difference: ≤±1.0%
    • Phase Difference: ≤ soil 10 points
    • Dielectric Strength: 2.5kV/1mA/1min
    • Insulation Resistance: DC500V/1000mΩ/min
    • Shell: ABS, Flame retardant grade 94-V0
    • Skeleton: PBT
    • Iron Core: Silicon steel
    • Internal Structure: Buckle
    • Construction Plan: Cable ties fixed
    • Operating Temperature: -25°C~75°C
    • Ambient Humidity: ≤85%
    • Wiring: 1.5m Red and black wire

    100A Split Core Current Transformer Dimension

    Split core current transformer dimension

    φ A B C
    23 43 73 39

    Tips: Advantages of Split core current transformer

    Split current transformer is suitable for current measurement, signal sampling and microcomputer protection of electrical equipment in 10KV AC power system. The current transformer has the characteristics of small size, light weight, can be opened, and easy to install. Provide data support. When installing, it is directly stuck on the connected incoming and outgoing cables, which is simple and quick.

    Existing reviews of Split Core Current Transformer, 100/5A
    Split current transformer works great
    Have bought a split current transformer many times, the plastic housing is much larger than other current transformers, but fortunately, there is enough space in the breaker box to mount it.
    From: Howdy | Date: 16/10/2022
    Was this review helpful? Yes No (0/0)
    Write your review for Split Core Current Transformer, 100/5A
    • Only registered users can write reviews
    • Bad
    • Excellent
