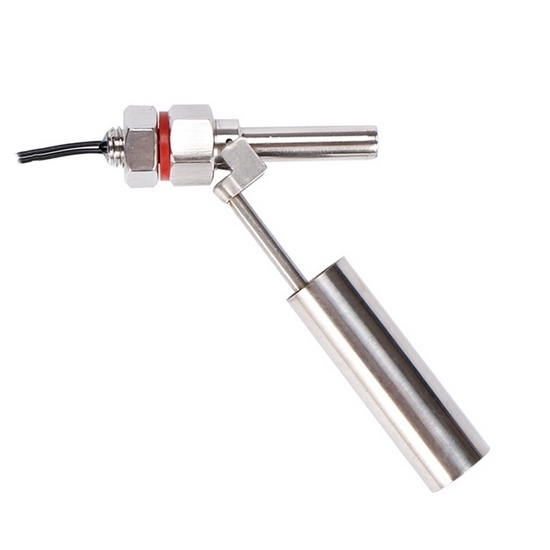

Stainless Float Switch, Side Mounted, Duckbill Design

Float Switch for sale. Premium SUS304 stainless steel one-piece float switch with superior corrosion resistance. Wide temp range (-30℃ to 100℃) and 10 million-cycle lifespan ensure extreme-condition reliability. Unique duckbill side-mount design enables quick installation, ideal for diverse industrial applications.

Specification

Features

1. Easy to Install: The duckbill-style side-mounted structure of this stainless float Switch offers intuitive and convenient installation, requiring no complex tools and significantly reducing commissioning time.
2. Stable and Reliable: This industrial float switch supports a stable 200VDC / 1.5A load capacity, compatible with mainstream industrial control systems, ensuring long-term stable operation, reducing failures and replacement costs.
3. Highly Adaptable: With a wide-temperature design and shock- and vibration-resistant structure, the float level switch operates reliably even in complex environments, covering a wide range of applications.
4. Stainless Steel Construction: Made from SUS304 stainless steel, this float switch is corrosion-resistant, high-temperature resistant, and reliably sealed, requiring minimal daily maintenance and offering excellent long-term cost-effectiveness.

Dimension (Unit: mm)

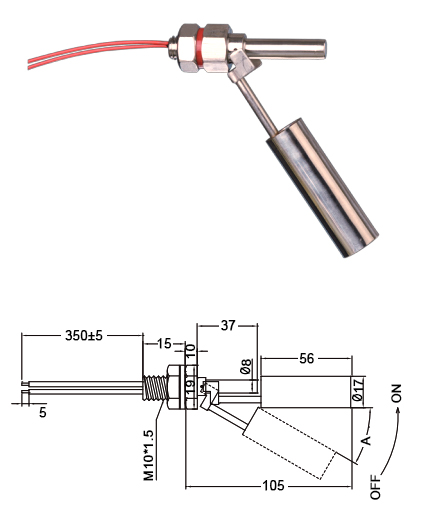

M10: Self-reset (reed switch)

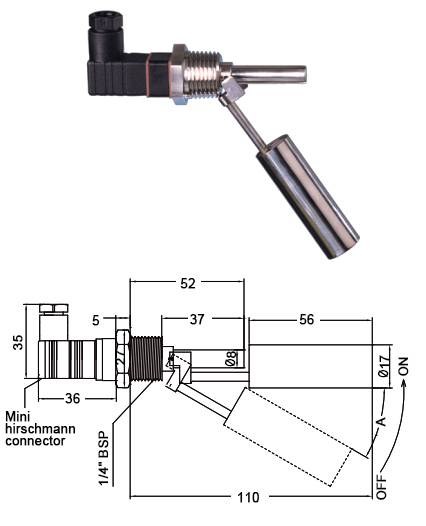

HSM: Self-reset (reed switch magnetic control)

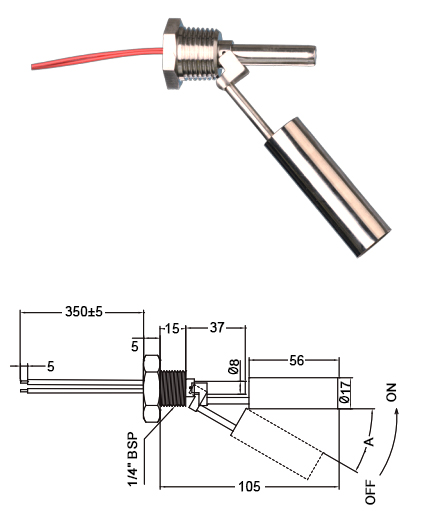

S4: Latching / Self-reset (reed switch magnetic control)

Tips: Why choose stainless float switches over other materials?

Compared to float switches made of other materials, stainless float switches offer superior corrosion resistance, high-temperature tolerance, and enhanced durability and reliability. Our stainless steel float switch features exceptional corrosion resistance and oxidation resistance, eliminating common issues like rusting or aging found in ordinary metals. The one-piece stamped construction ensures superior pressure resistance and leak prevention, removing the risk of weld seam cracking present in plastic-assembled versions. It operates reliably within a temperature range of -30°C to 100°C, without exhibiting low-temperature brittleness or high-temperature deformation. For more models, please visit the ATO online store's float Switch catalog.
